CVT Control System
›

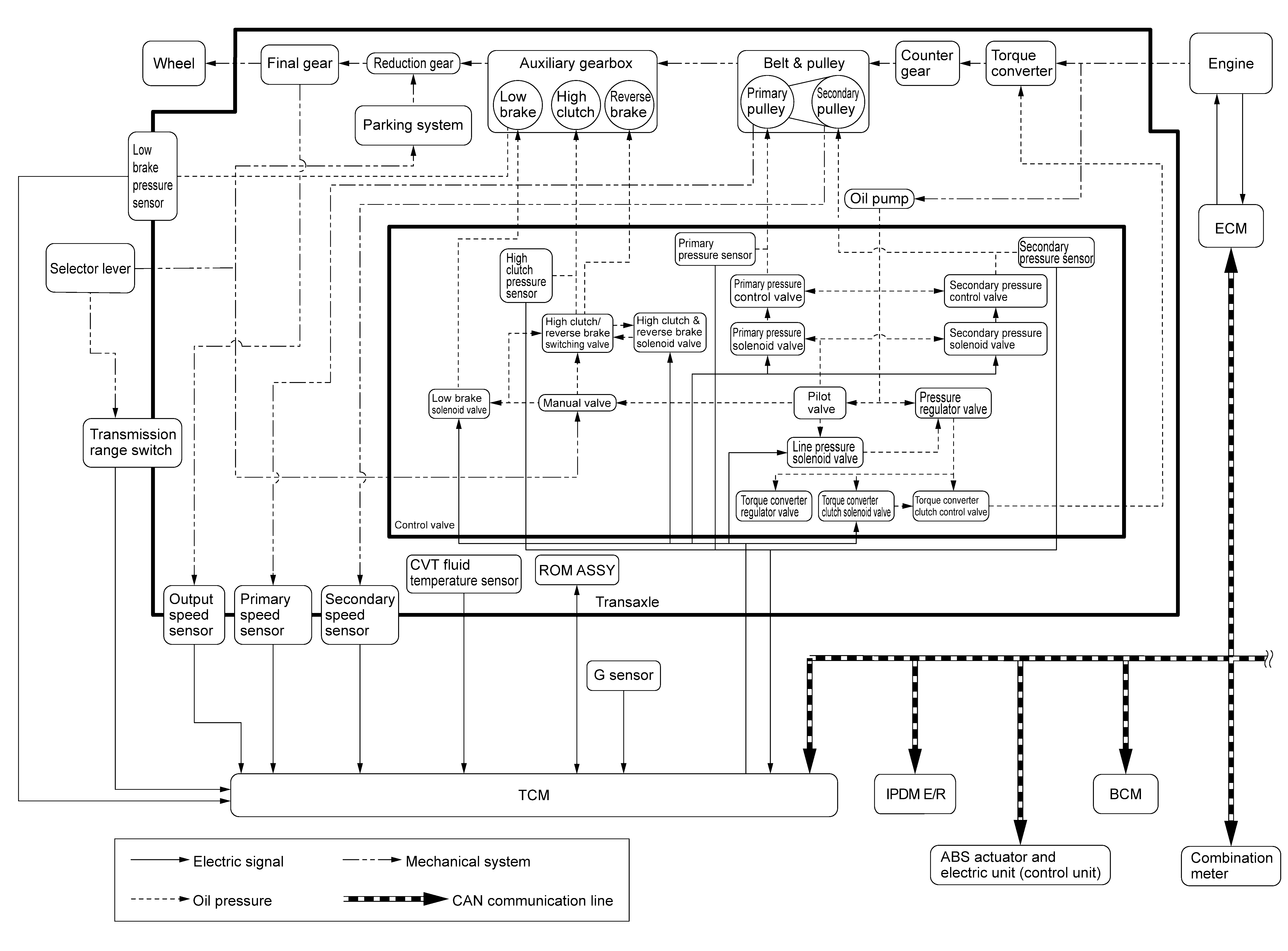

System Diagram
System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
NOTE:
ABS actuator and electric unit (control unit) is applied to without VDC (with ABS) or with VDC.
Courtesy of NISSAN NORTH AMERICA, INC.
