Accelerator Control

Unit: mm (in)

Courtesy of NISSAN NORTH AMERICA, INC.

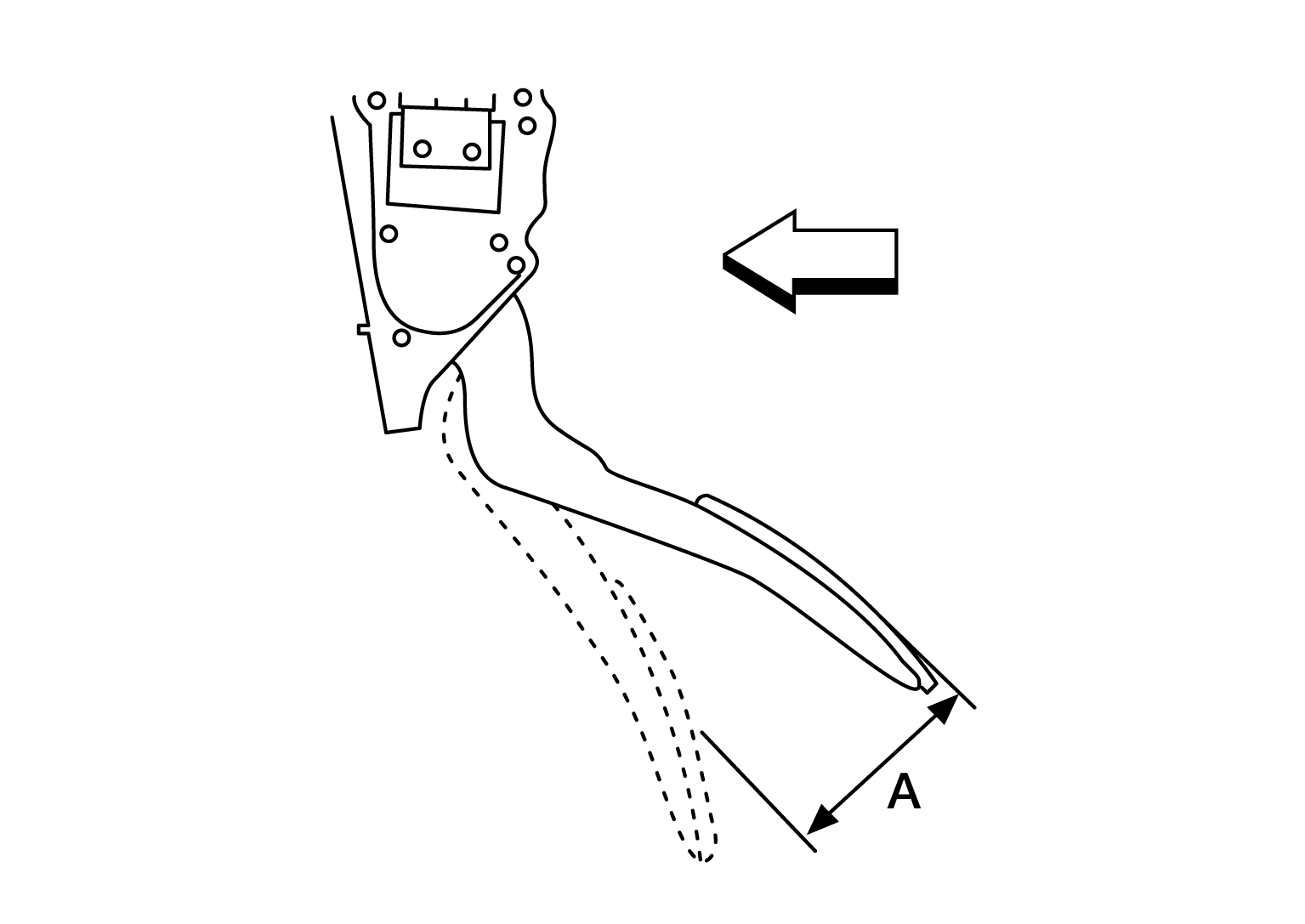

Accelerator pedal stroke (A)	49.8 - 52.6 (1.96 - 2.07)
Accelerator pedal height	124.9 +10, -0 (4.92 +0.4, -0)

: Front
