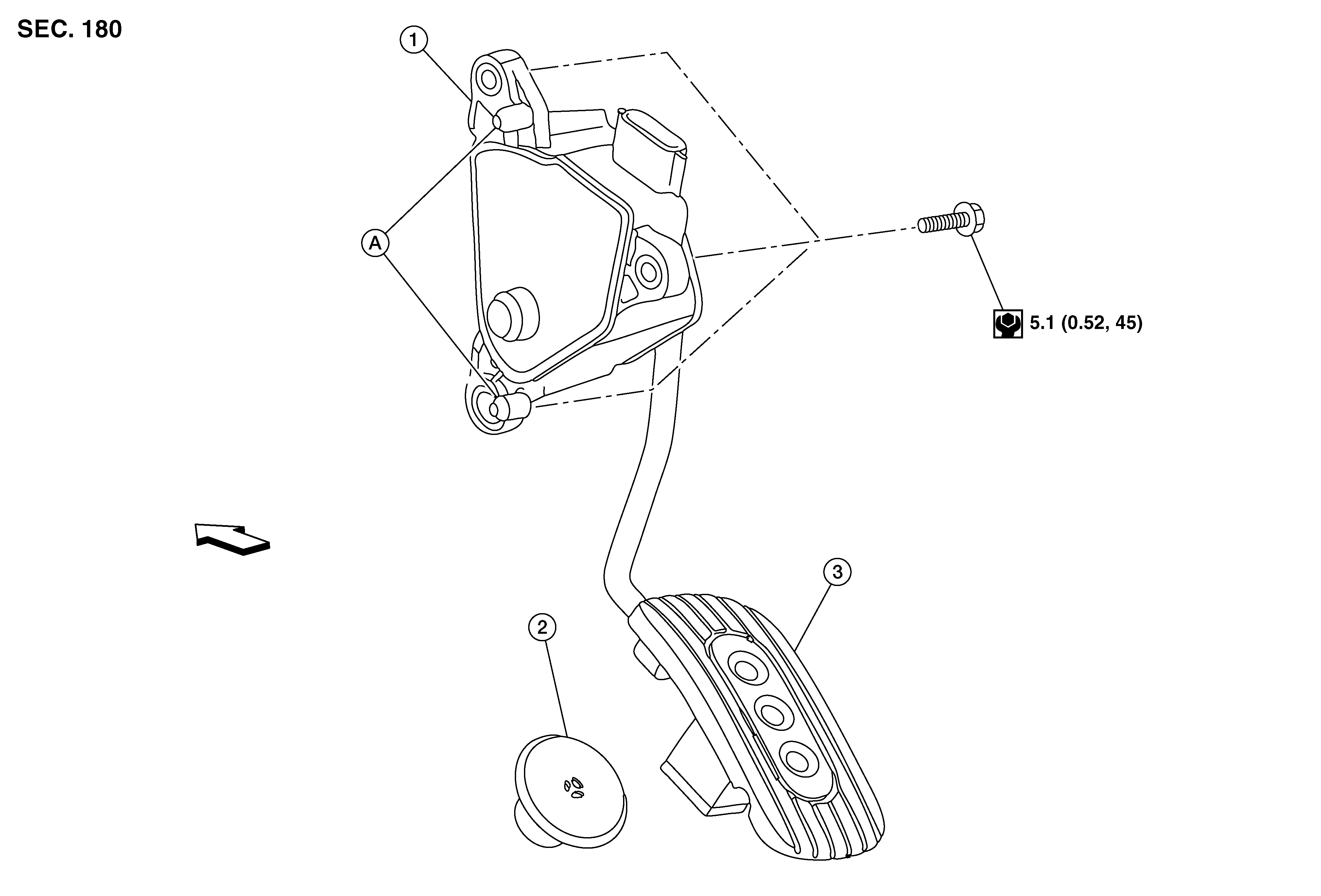

Exploded View
WARNING: This page is about a different car, the 2019 Nissan NV200. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
1.
|
Accelerator pedal assembly
|
2.
|
Accelerator pedal stopper (Under front floor trim)
|
3.
|
Accelerator pedal pad
|
|
A.
|
Locating pin
|
|
Front
|
