Accelerator Control System: Inspection
WARNING: This page is about a different car, the 2019 Nissan NV200. However, it is still accessible from the selected car via links, so may be relevant.

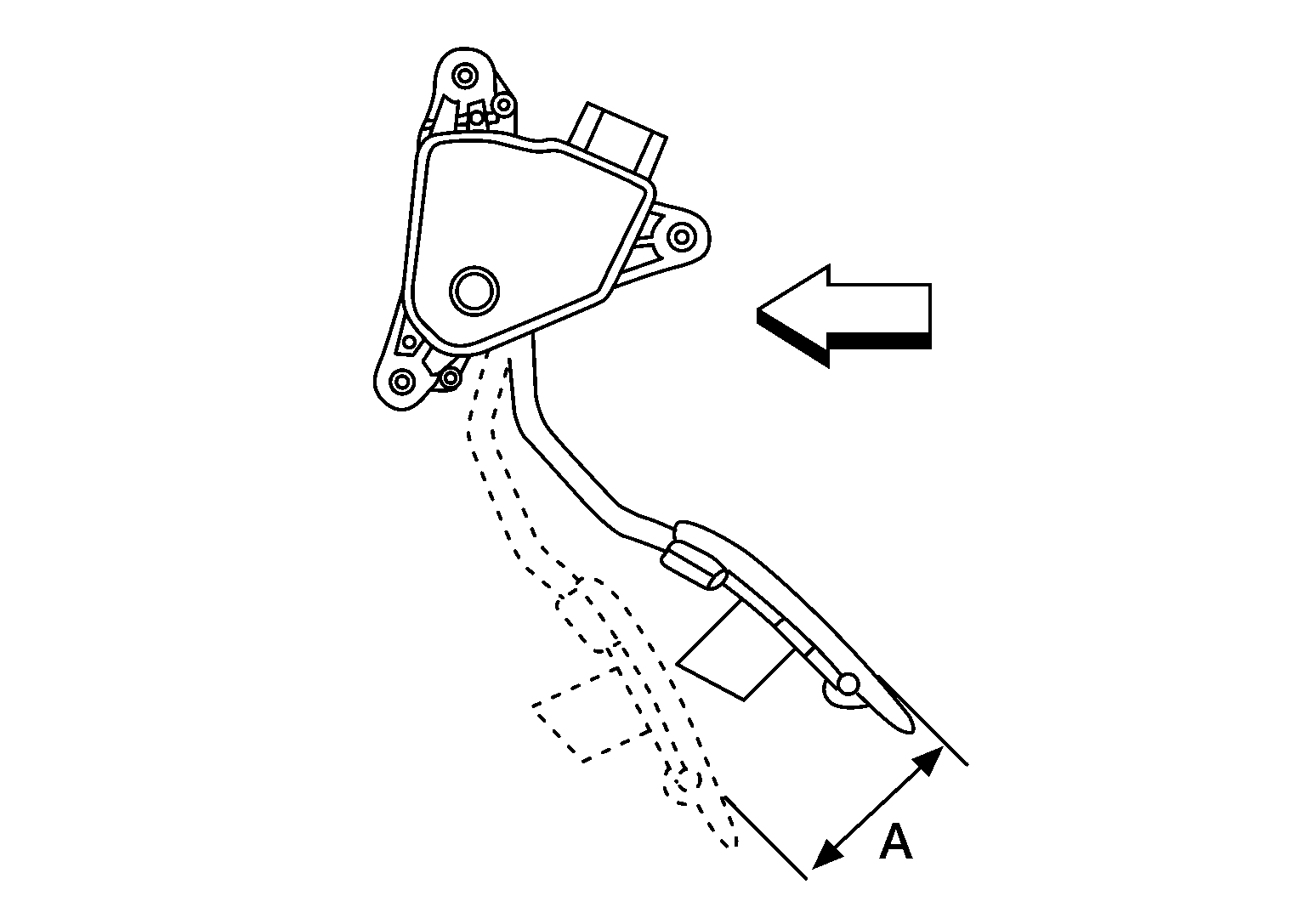

- Check that the accelerator pedal moves smoothly within the specified range.
: Front
Accelerator pedal stroke (A):
Refer to Accelerator Control .
- Check the accelerator pedal height.
Accelerator pedal height:
Refer to Accelerator Control .
CAUTION:- Whenever the harness connector of the accelerator pedal position sensor has been disconnected, perform "ACCELERATOR PEDAL RELEASED POSITION LEARNING". Refer to Description .
- The accelerator pedal should return smoothly to the fully released position.
