Exploded View

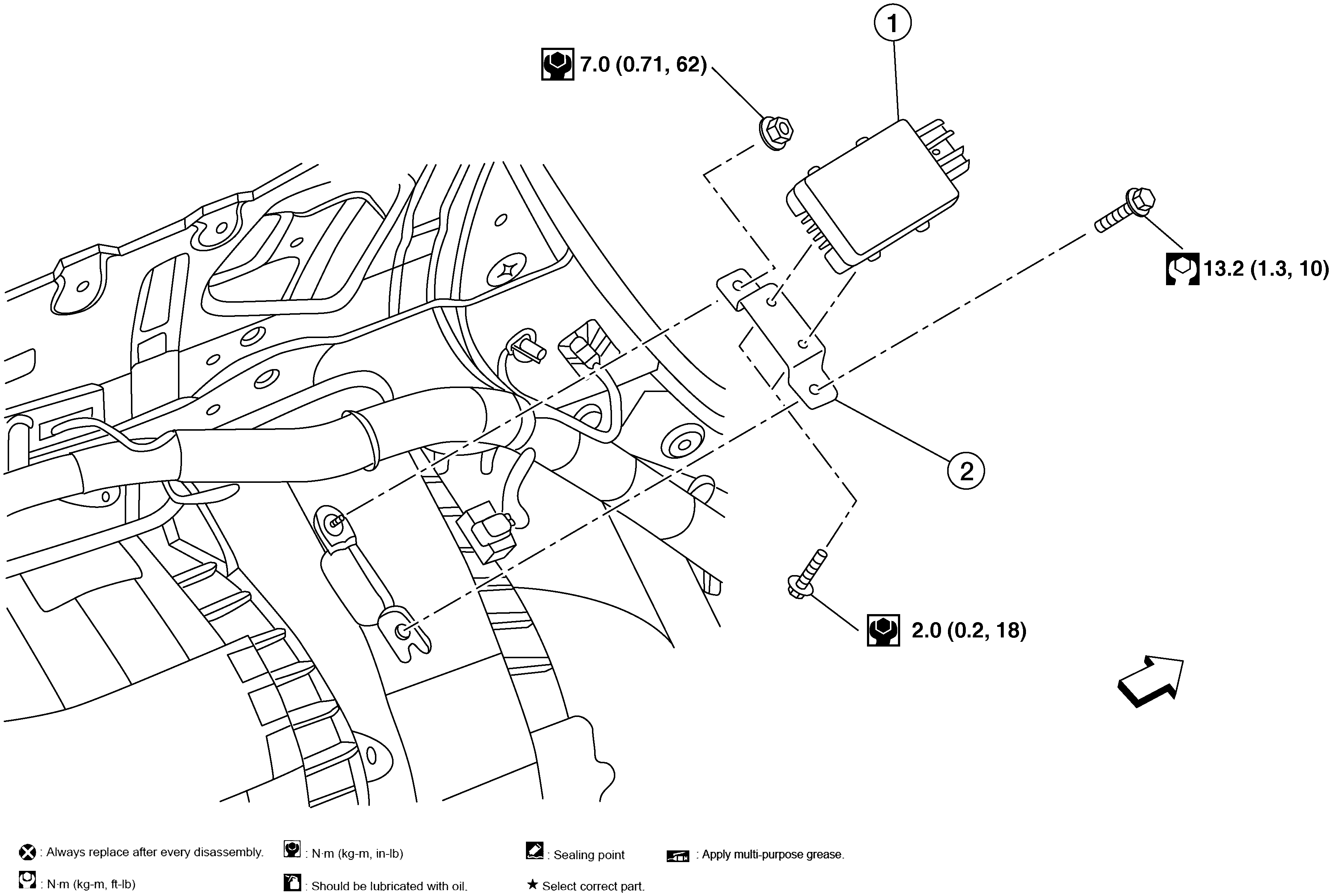

Fig 1: Fuel Pump Control Module Components With Torque Specification

GNSALBIA0033Z-033

Courtesy of NISSAN NORTH AMERICA, INC.

1.

Fuel pump control module

2.

Fuel pump control module bracket

Front
