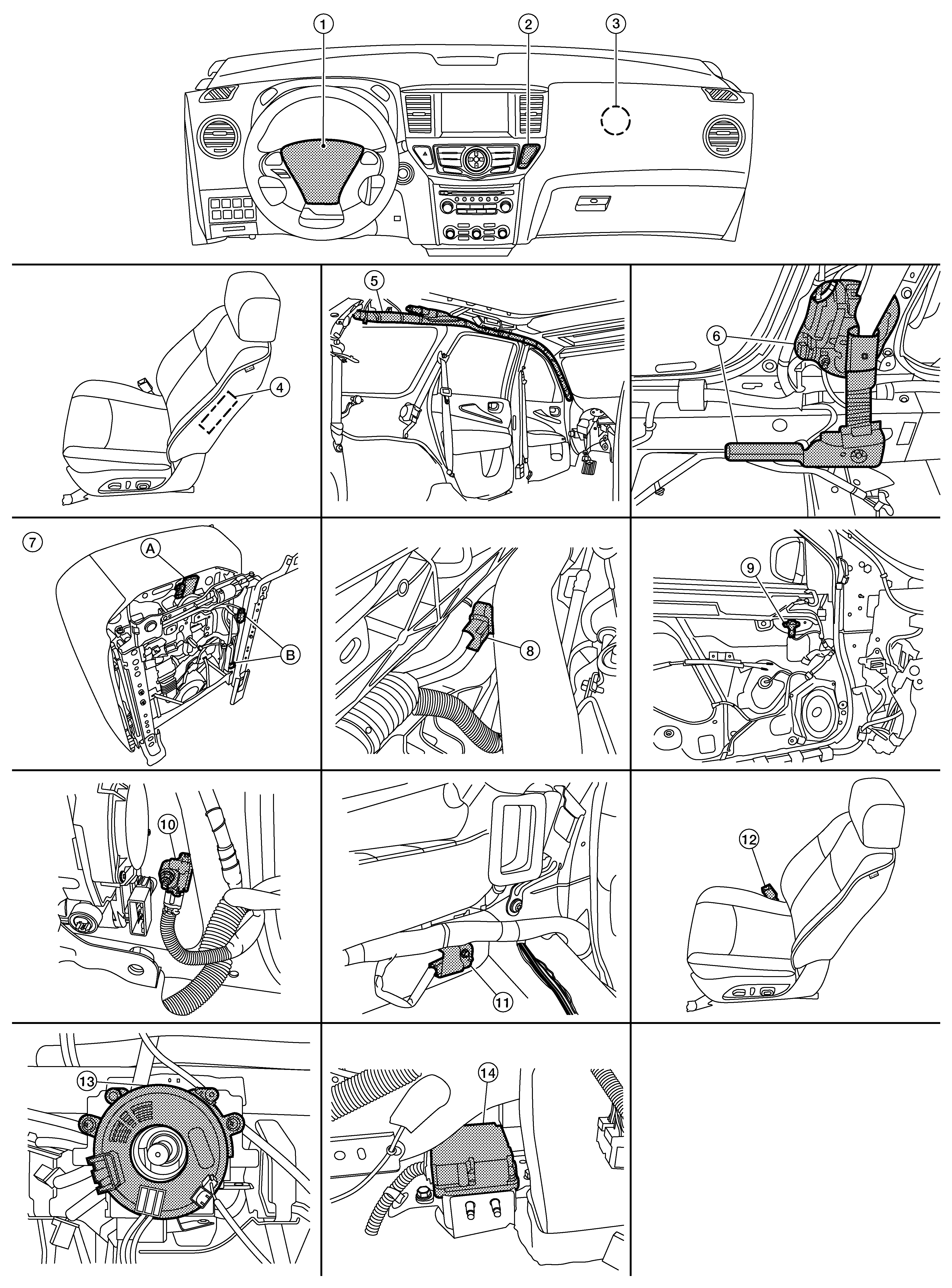

Component Location
|
1. |
Driver air bag module |
2. |
Front passenger air bag off indicator (if equipped) |
3. |
Front passenger air bag module |
|
4. |
Front LH side air bag module (RH similar) |
5. |
LH side curtain air bag module (view with headliner removed) (RH similar) |
6. |
Front RH seat belt pre-tensioner and lap pre-tensioner RH (view with lower center pillar cover removed) (LH similar) |
|
7. |
Occupant classification system control unit (A) (if equipped) Occupant classification system sensors (B) (if equipped) (view with front passenger seat removed) |
8. |
Crash zone sensor (view with air intake removed) |
9. |
Front door satellite sensor LH (if equipped) (view with front door finisher LH removed) (RH similar) |
|
10. |
Front side air bag satellite sensor LH (if equipped) (view with lower center pillar cover removed) (RH similar) |
11. |
Rear side air bag satellite sensor LH (view with luggage side lower finisher LH removed) (RH similar) |
12. |
Seat belt buckle switch LH (RH similar, except Mexico) |
|
13. |
Spiral cable (view with steering wheel removed) |
14. |
Air bag diagnosis sensor unit (view with center console assembly removed) |
