Engine Control System (Diagnostics) (1 Of 4)
›
Description
›
System
›
Dig (Direct Injection Gasoline) System
›
System Description
›

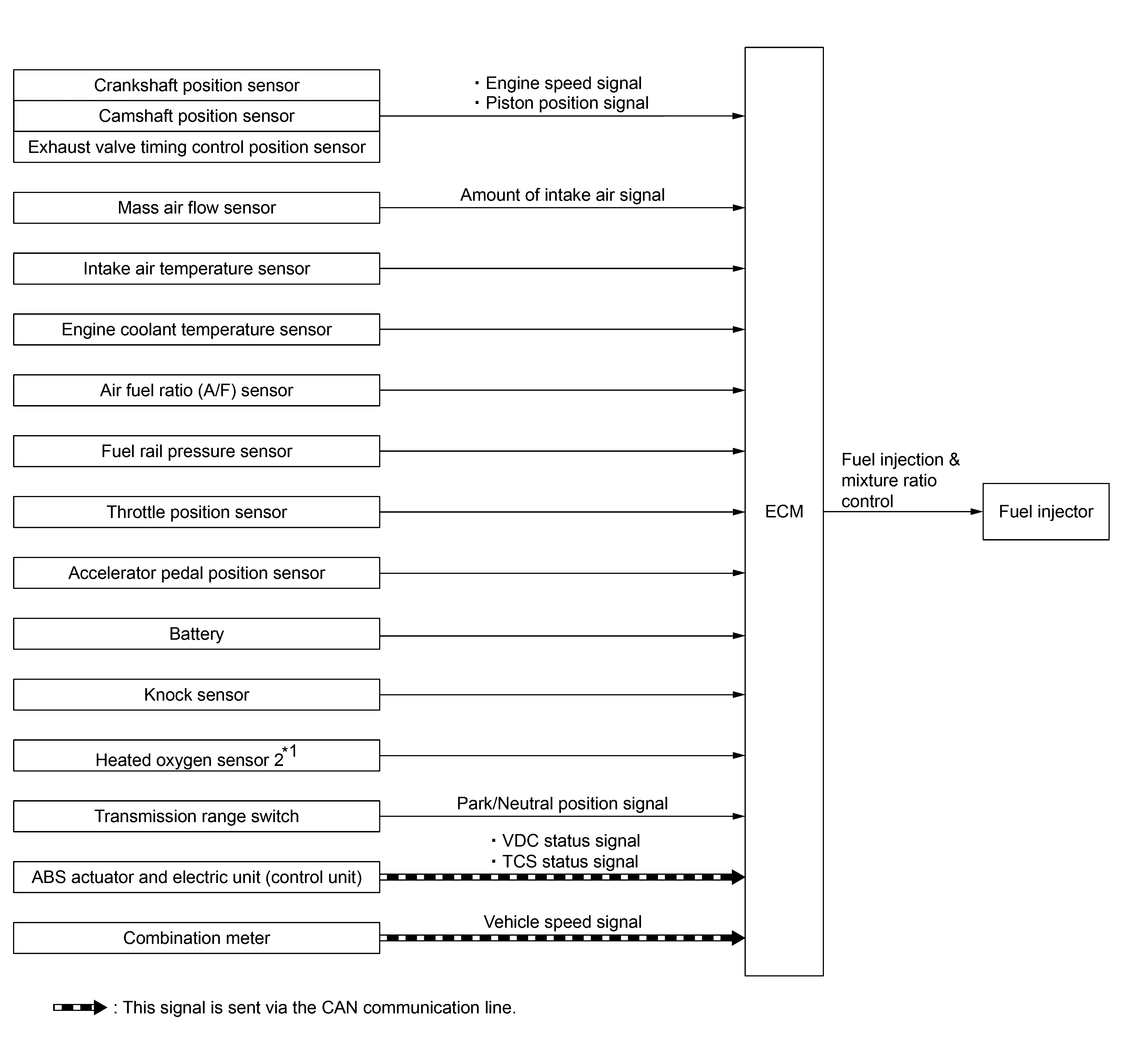

System Diagram
System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
*1: This sensor is not used to control the engine system under normal conditions.
