Engine Control System (Diagnostics) (1 Of 4)
›
Description
›
System
›
Engine Control System
›

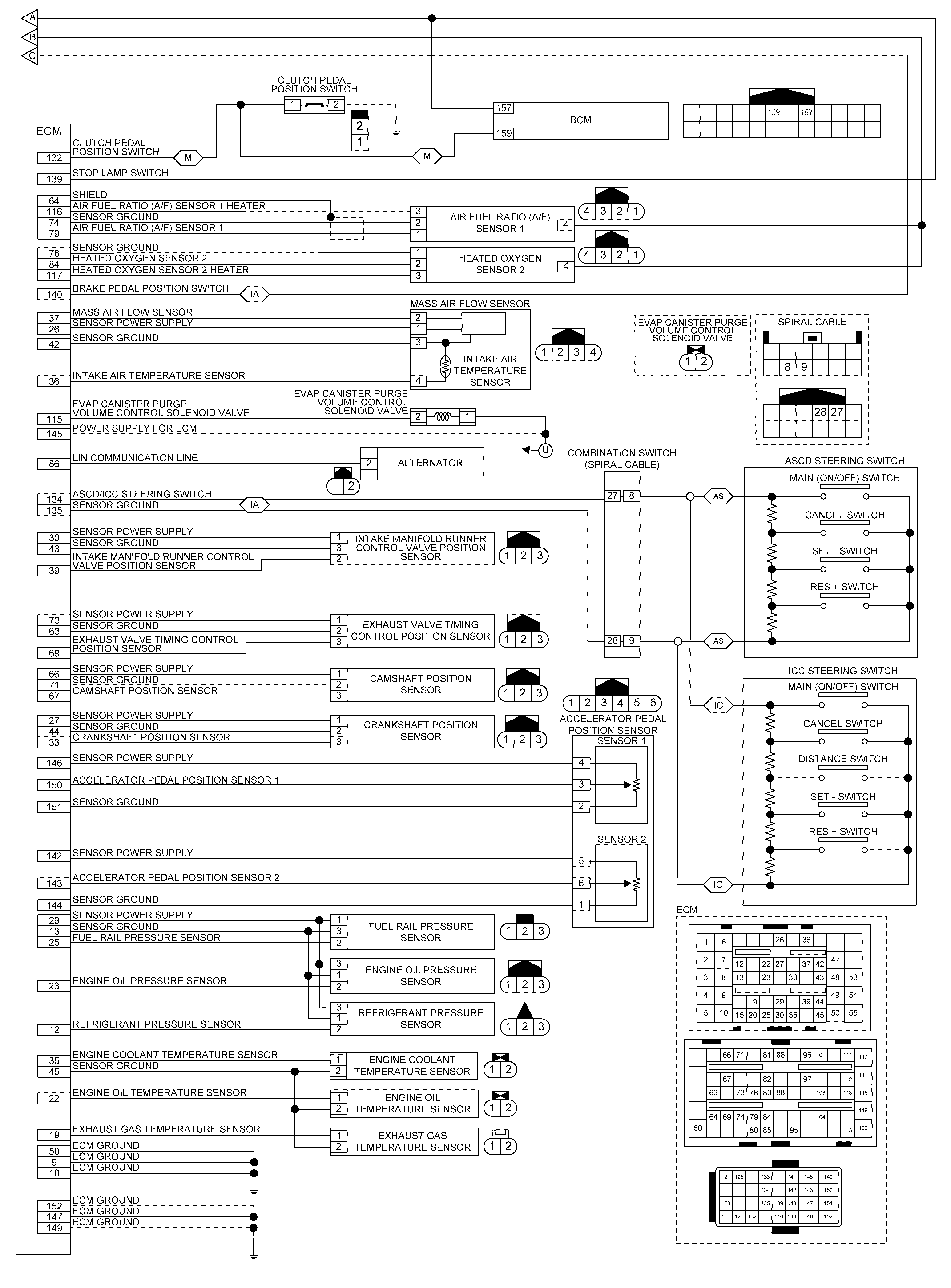

Circuit Diagram

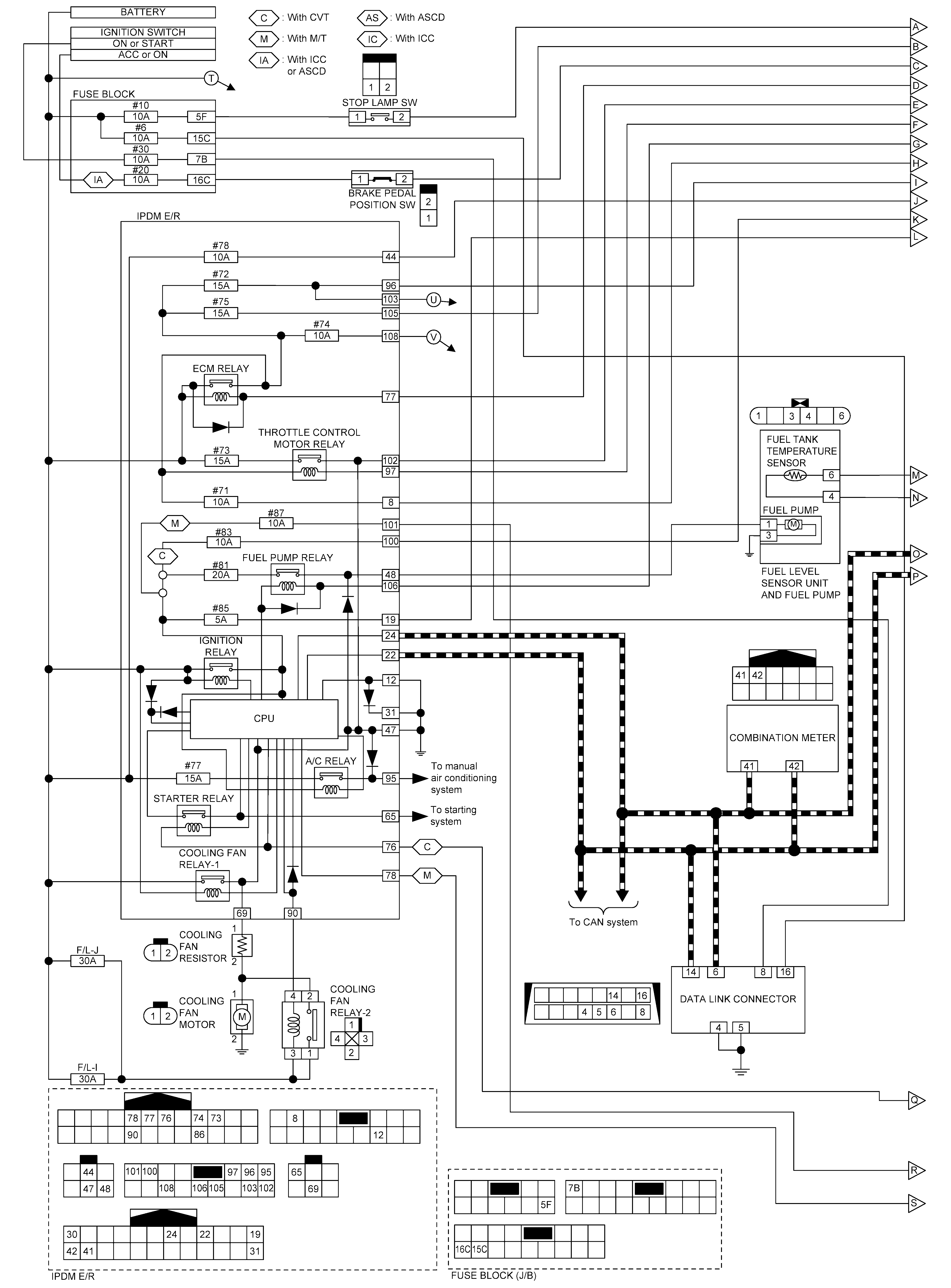

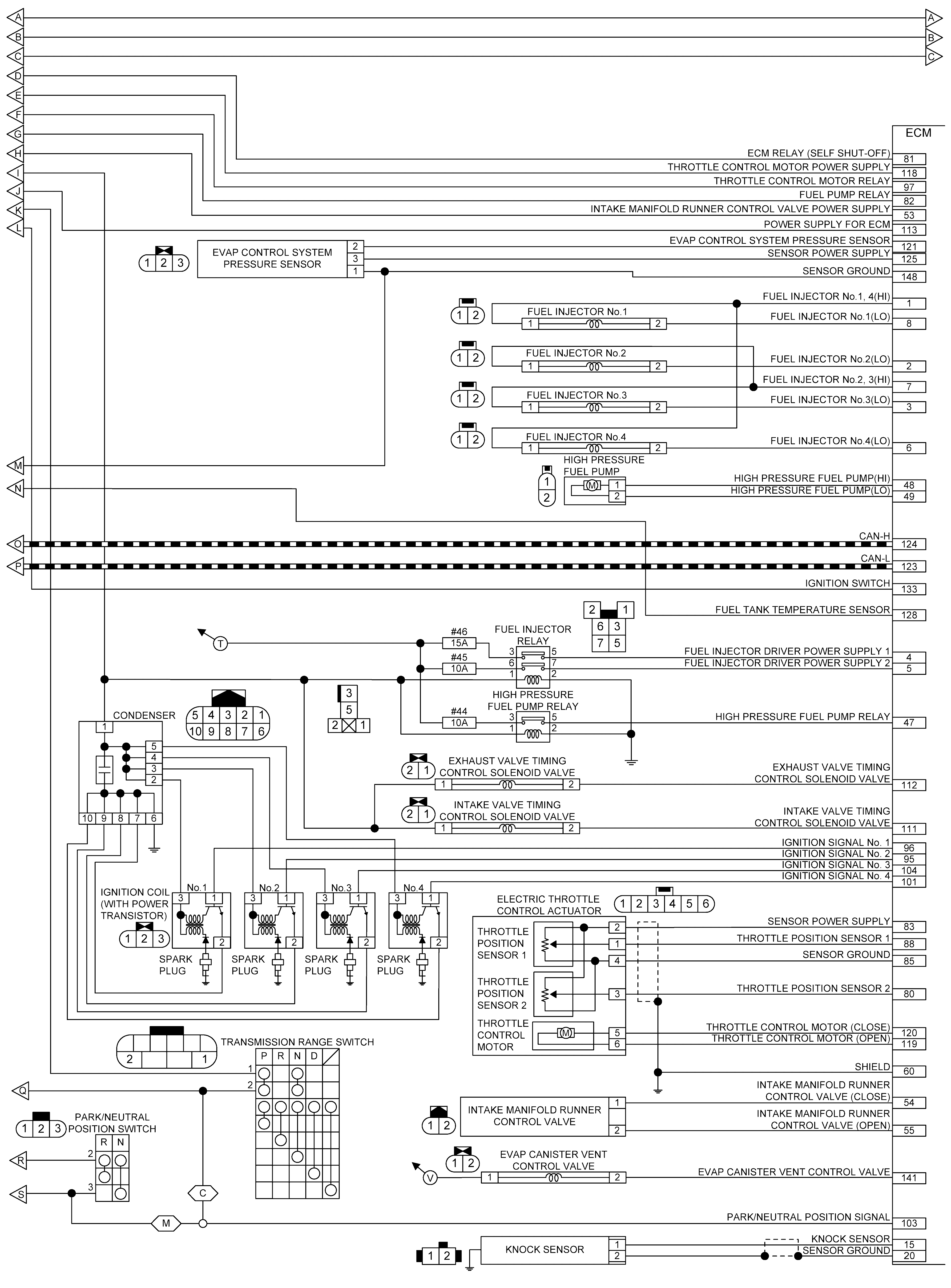

Circuit Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
