Exhaust Compartment

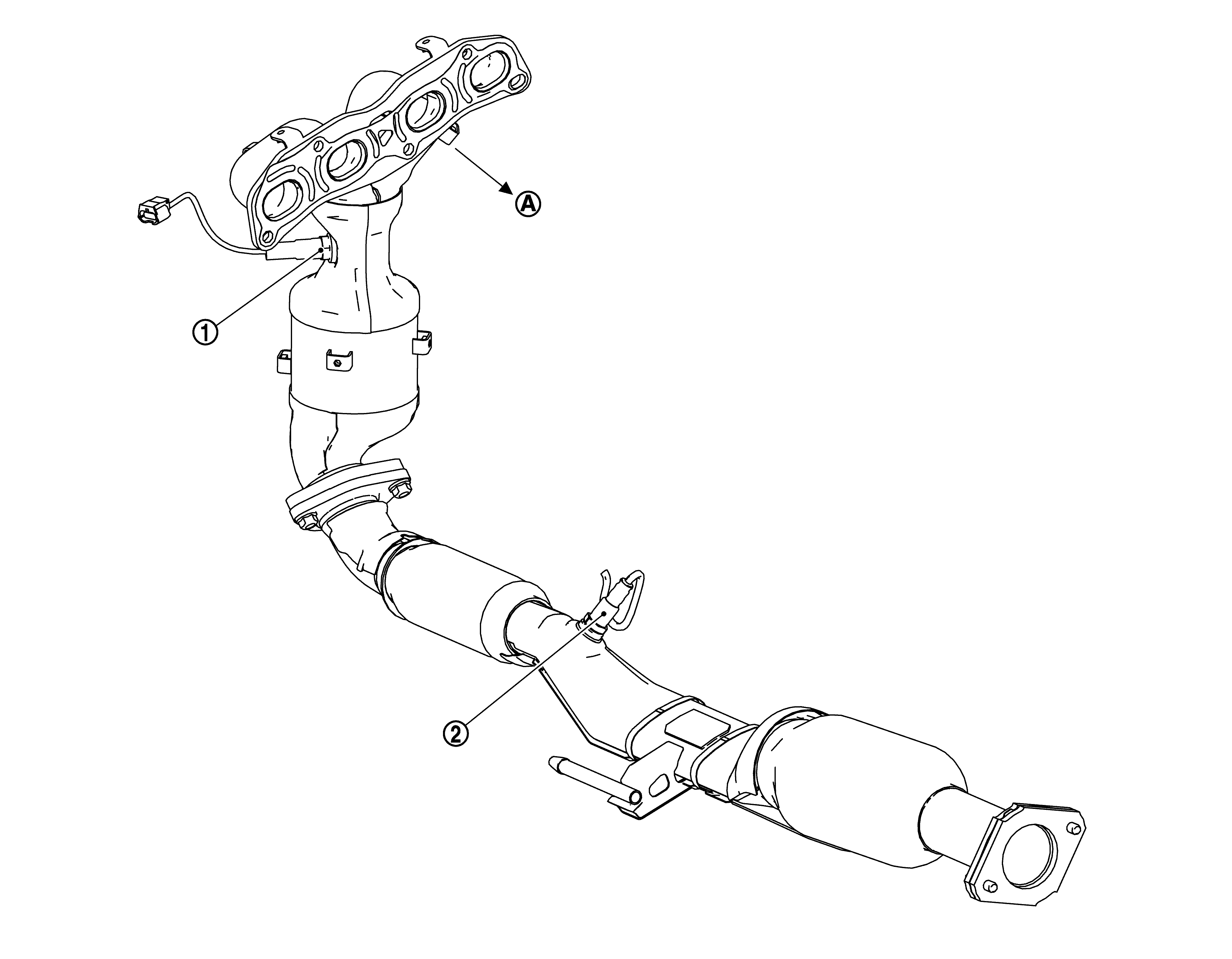

GNSJPBIA5841Z-841

Courtesy of NISSAN NORTH AMERICA, INC.

To engine assembly

No.	Component	Function
	Air fuel ratio (A/F) sensor 1	Air Fuel Ratio (A/F) Sensor 1
	Heated oxygen sensor 2	Heated Oxygen Sensor 2
