Automatic Transmission
›
Removal And Installation
›
Key Interlock Cable
›

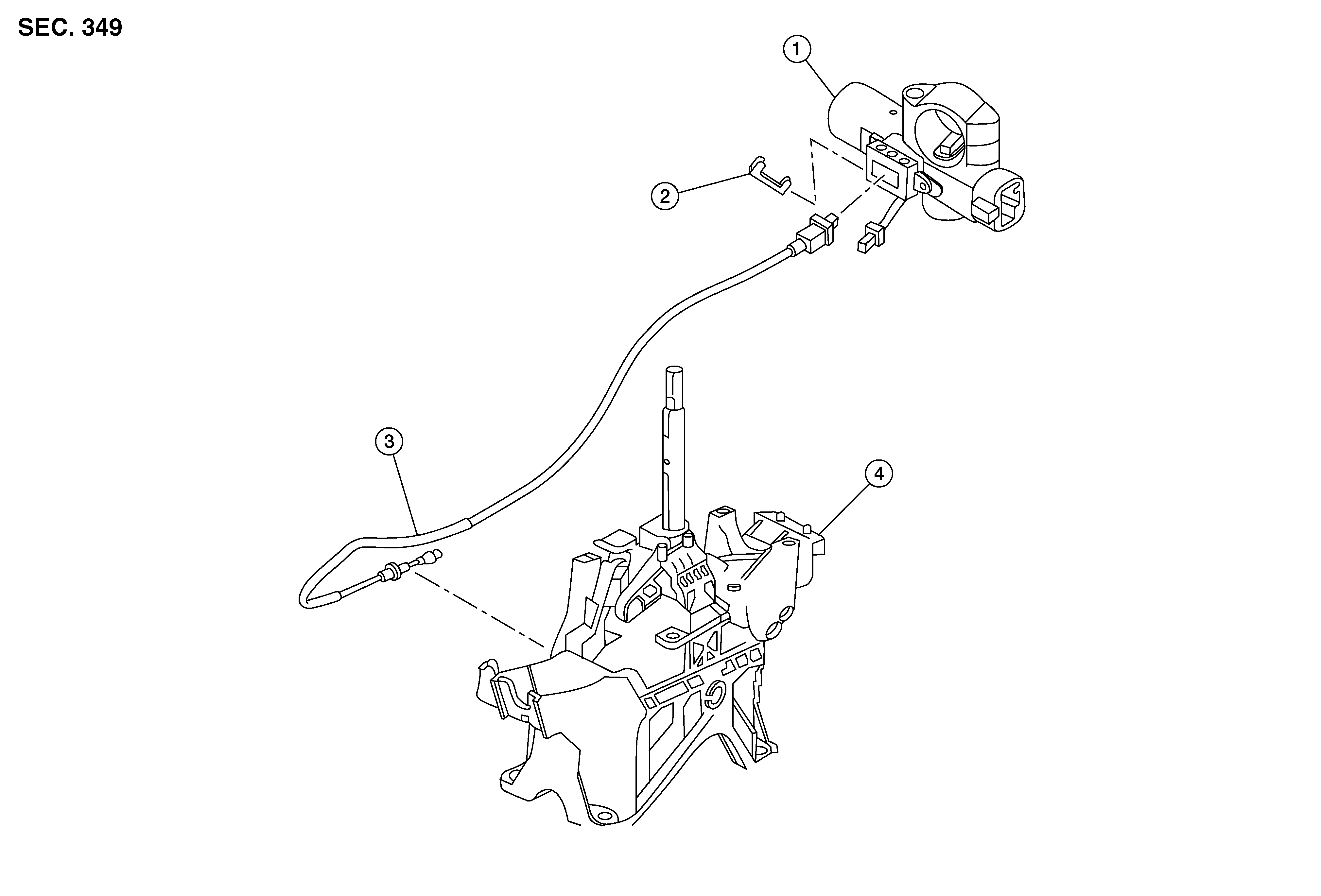

Exploded View
Exploded View
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Steering lock unit
2.
Clip
3.
Key interlock cable
4.
Shift selector assembly
Courtesy of NISSAN NORTH AMERICA, INC.
