Home › Nissan-Datsun › 2020 › Rogue S, AWD › Repair and Diagnosis › Transmission › Automatic Trans › Automatic Transmission › System Description › Component Parts › Shift Lock System › Component Parts Location › Notes

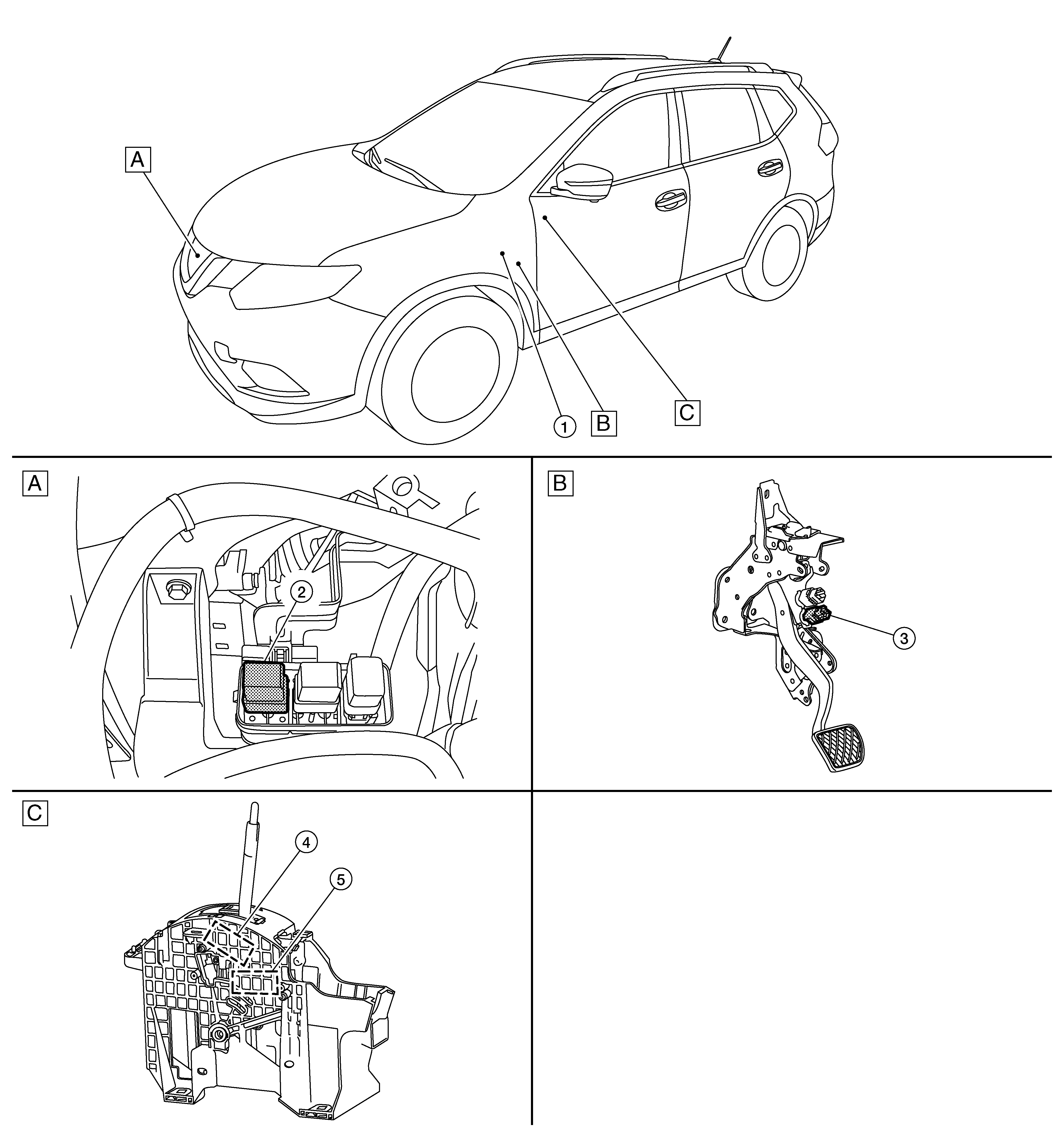

Component Parts Location: Notes

GNSDB115898

Courtesy of NISSAN NORTH AMERICA, INC.

A

Below right headlamp

B

Brake pedal, upper

C

CVT shift selector assembly
