Exploded View

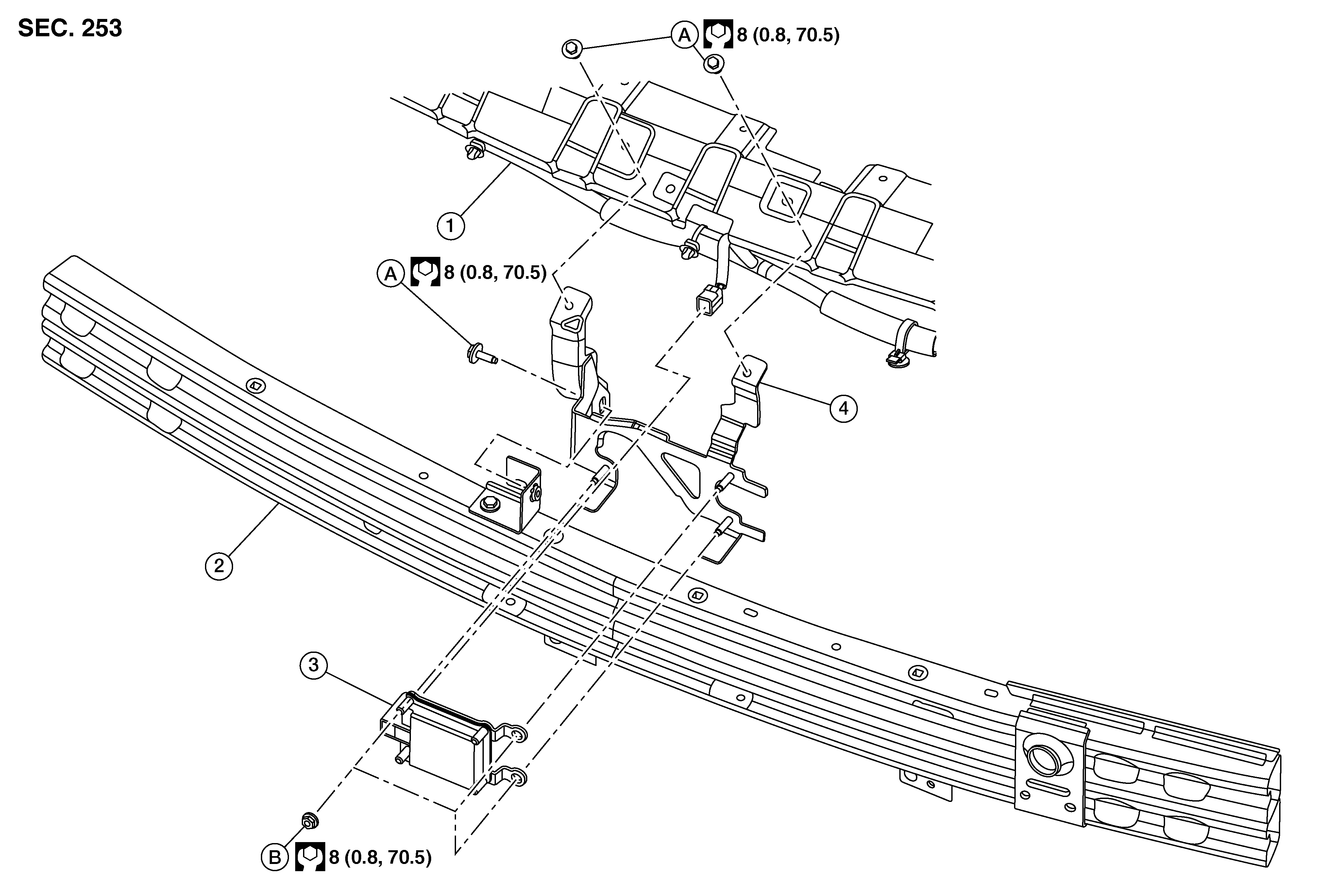

Fig 1: Distance Sensor Components With Torque Specification

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Front bumper fascia retainer	2.	Front bumper reinforcement (upper)	3.	Distance sensor
4.	Distance sensor bracket	A.	Refer to Removal and Installation .	B.	Refer to Removal and Installation .
