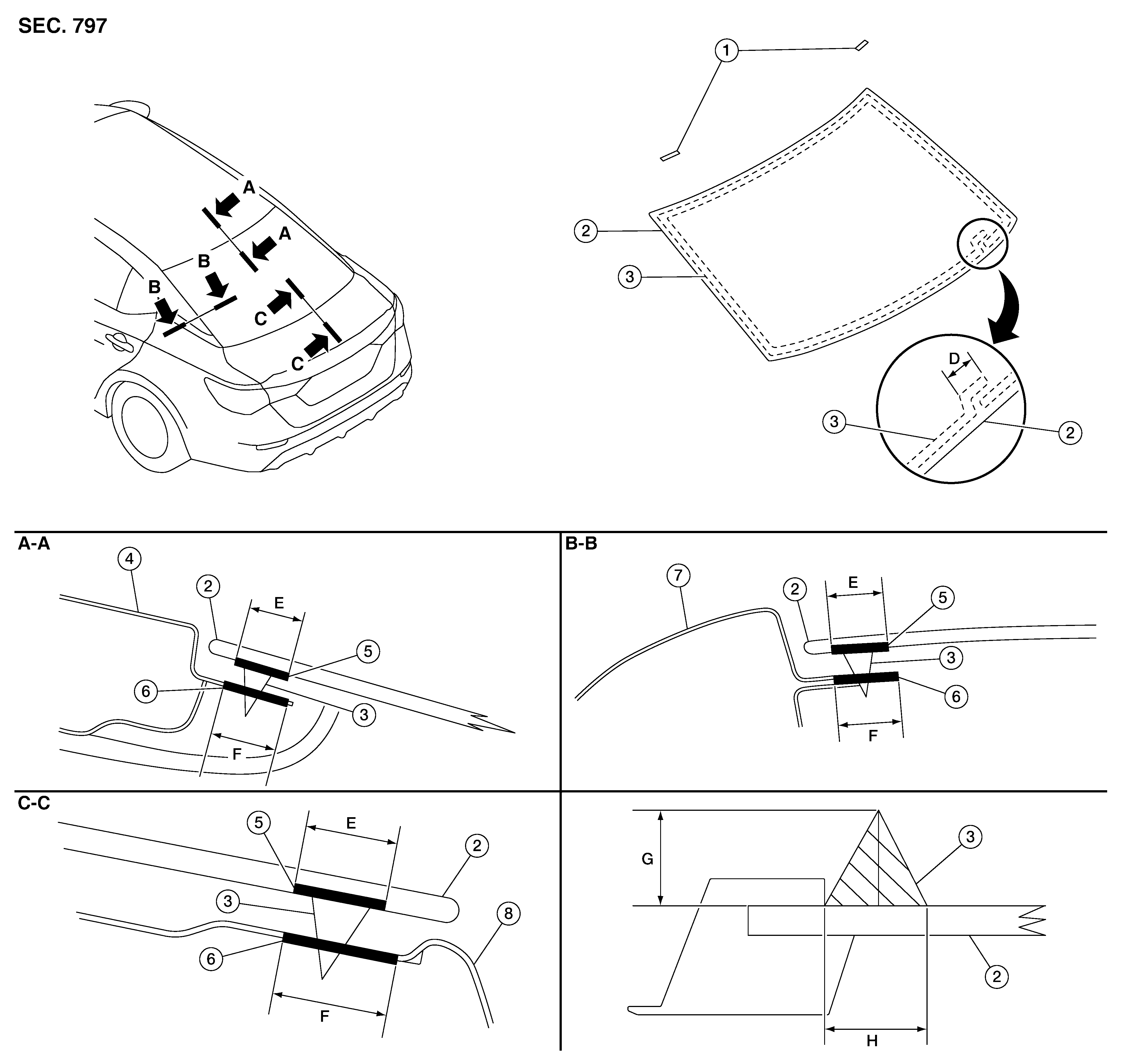

1.
Spacer
2.
Rear window glass
3.
Adhesive
4.
Roof panel
5.
Glass primer
6.
Body primer
7.
Body side outer
8.
D.
30 mm (1.2 in)
E.
13 mm (0.51 in)
F.
15 mm (0.59 in)
G.
14 mm +/- 1.0 mm (0.55 +/- 0.03)
H.
8.0 mm +/- 1.0 mm (0.31 +/- 0.03)
