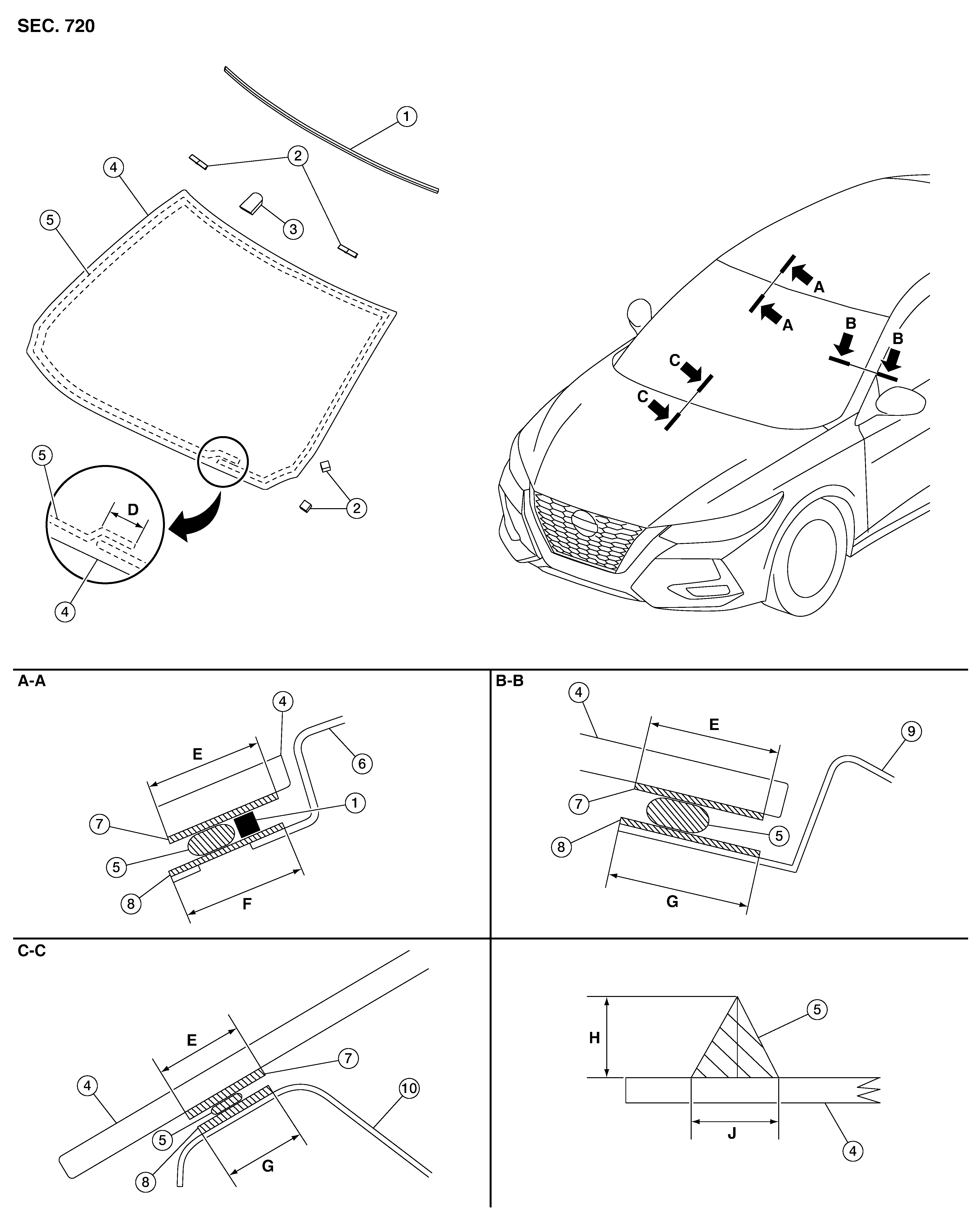

Exploded View

1.

Dam sealant rubber (upper)

2.

Spacer

3.

Inside mirror base

4.

Windshield glass

5.

Adhesive

6.

Roof panel

7.

Glass primer

8.

Body primer

9.

Body side outer panel

10.

Cowl top cover

D.

30 mm (1.2 in)

E.

16.2 mm (0.63 in)

F.

15.4 mm (0.60 in)

G.

13.0 mm (0.51 in)

H.

14 mm +/- 1.0 mm (0.55 +/- 0.03)

J.

8.0 mm +/- 1.0 mm (0.31 +/- 0.03)
