Exploded View

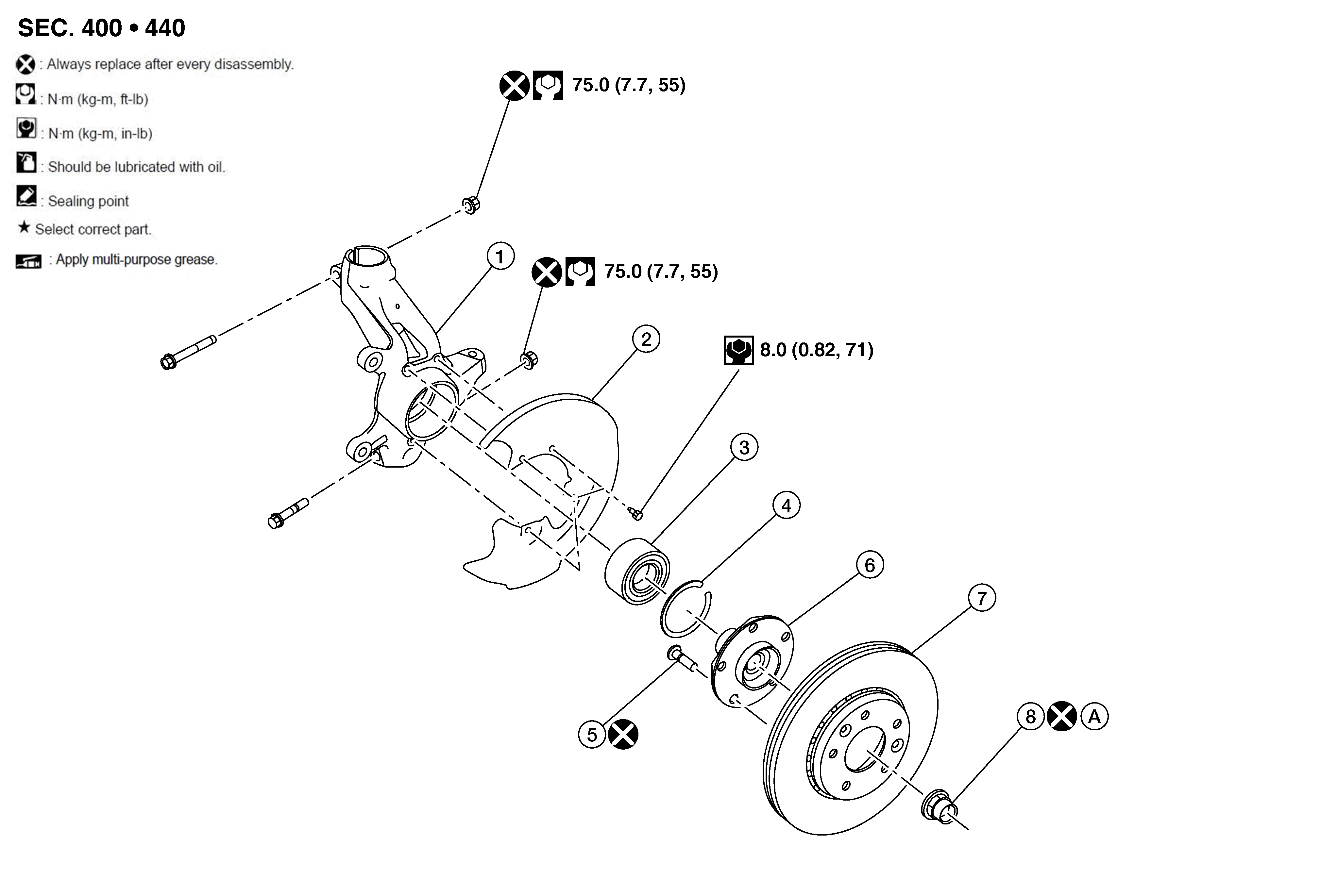

Fig 1: Exploded View Of Steering Knuckle With Torque Specification

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Steering knuckle	2.	Splash guard	3.	Wheel bearing
4.	Snap ring	5.	Hub bolt	6.	Wheel hub
7.	Disc rotor	8.	Wheel hub lock nut	A.	Refer to Removal and Installation .
