Removal and Installation: Removal

NOTE: When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spilling.

Remove front undercover. Refer to Removal and Installation .

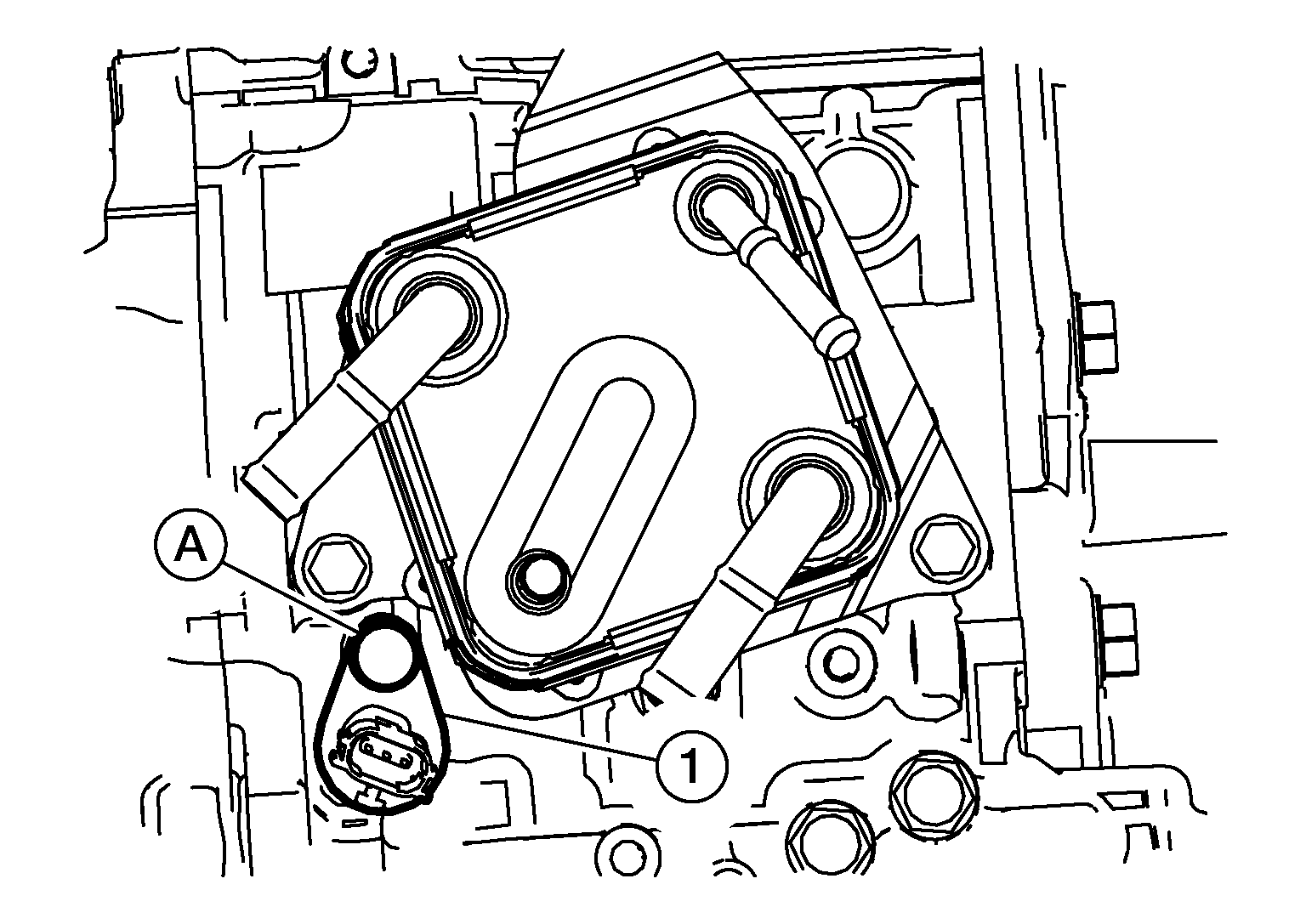

Remove the bolt (A) and remove input speed sensor (1) from transaxle assembly.

Courtesy of NISSAN NORTH AMERICA, INC.

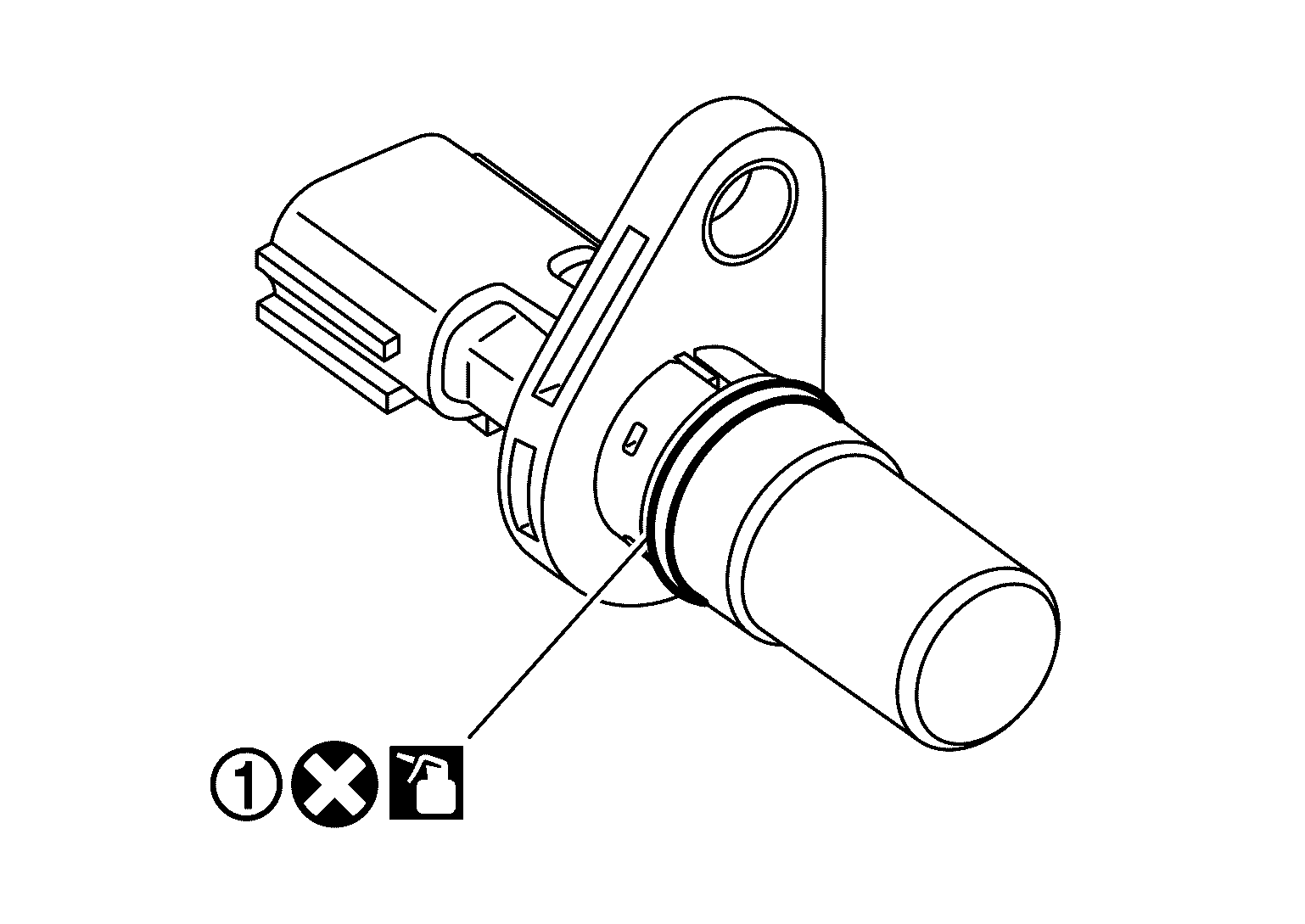

Remove O-ring (1) from input speed sensor.

Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION: Do not reuse O-ring.
