CVT Shift Selector
›
Exploded View
Exploded View

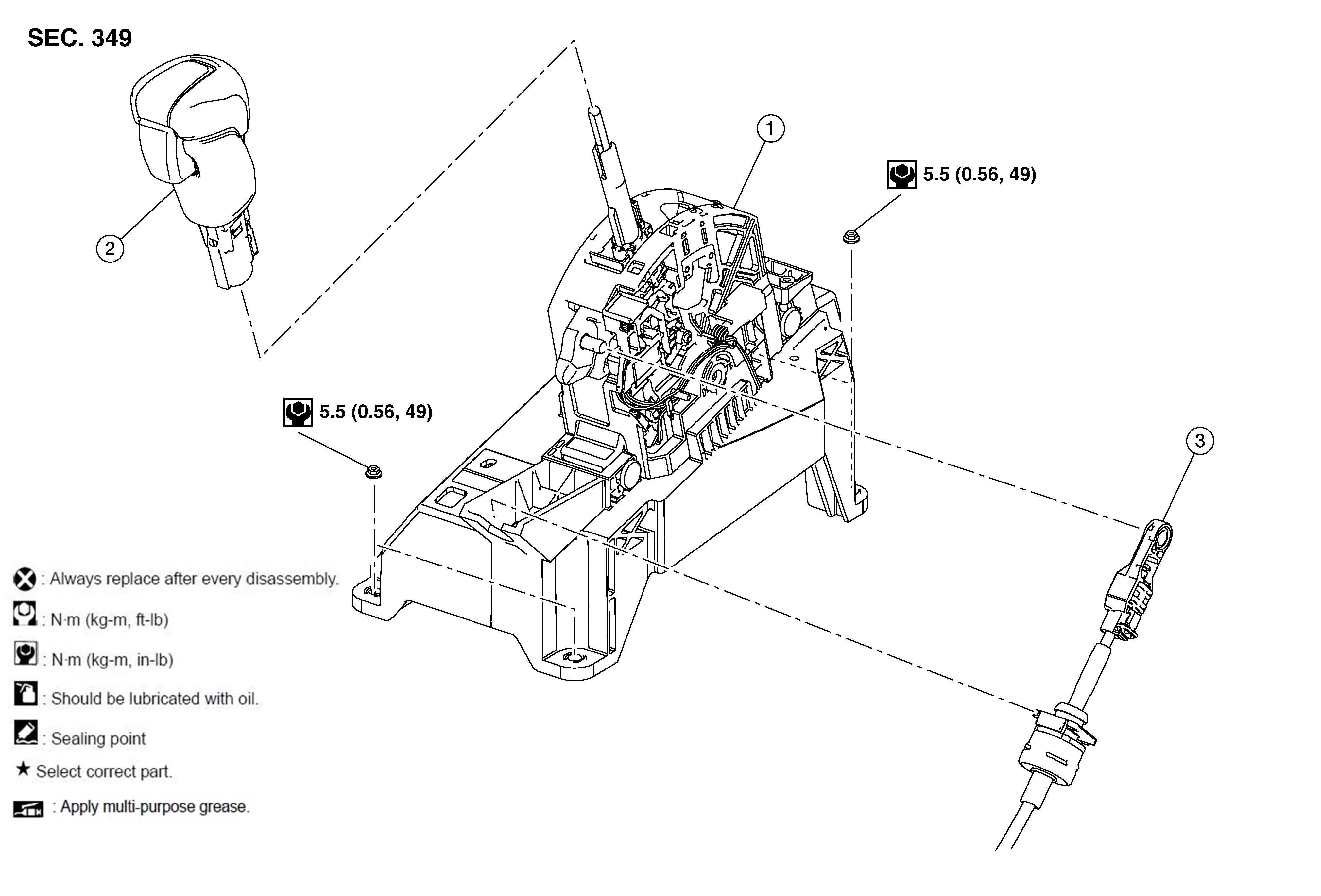

Fig 1: CVT Shift Selector Components With Torque Specification
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Selector lever
2.
Selector lever knob
3.
Control cable
Courtesy of NISSAN NORTH AMERICA, INC.
