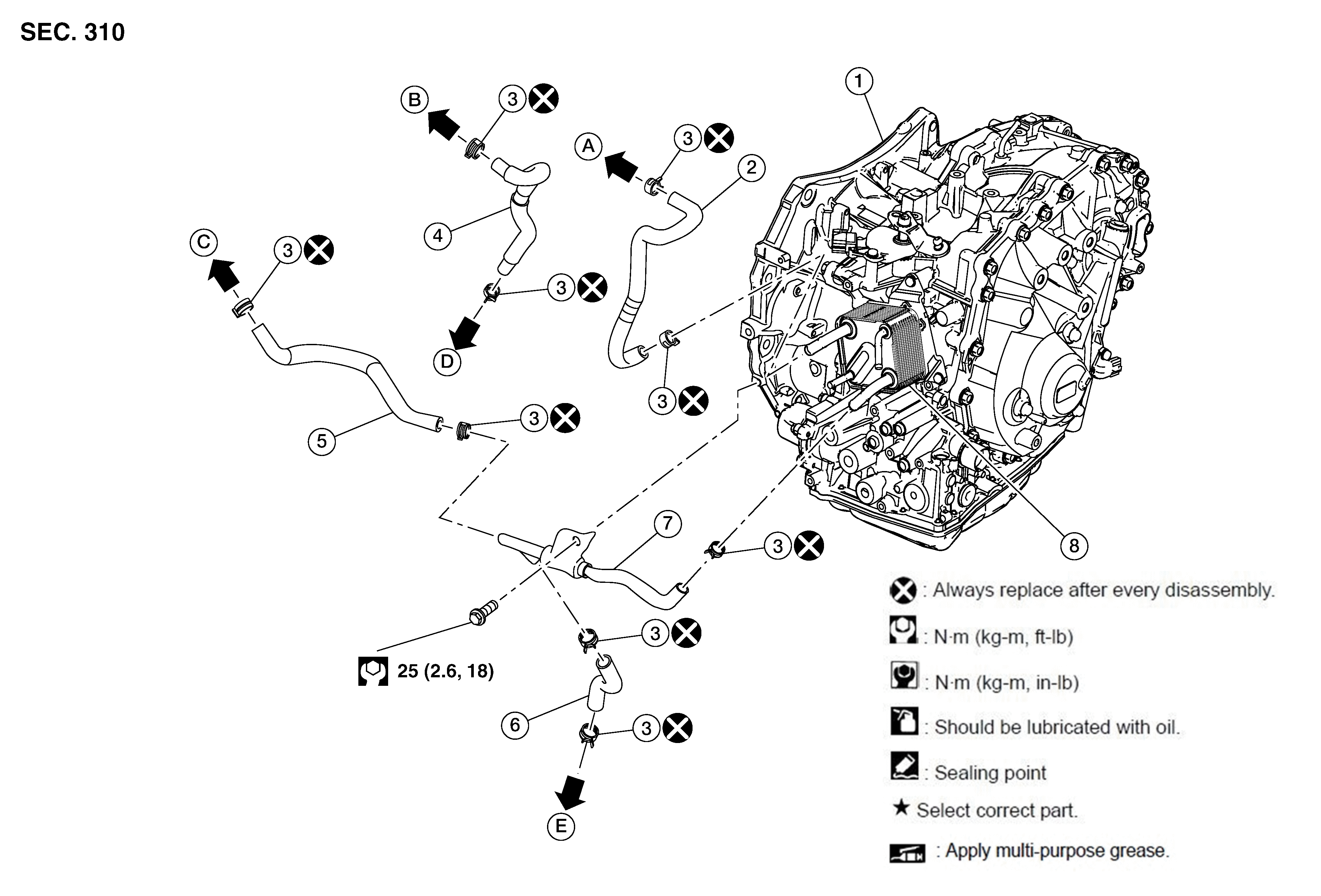

Exploded View
|
1. |
Transaxle assembly |
2. |
Water hose A |
3. |
Hose clamp |
|
4. |
Water hose B |
5. |
Water hose C |
6. |
Water hose D |
|
7. |
Heater thermostat housing |
8. |
CVT oil warmer |
A. |
To water outlet. Refer to Exploded View . |
|
B. |
To water pump. Refer to Exploded View . |
C. |
To water pump. Refer to Exploded View |
D. |
To oil cooler. Refer to Exploded View |
|
E. |
To oil cooler. Refer to Exploded View |
