Automatic Transmission
›
System Description
›
System
›
Shift Control
›
System Description
›

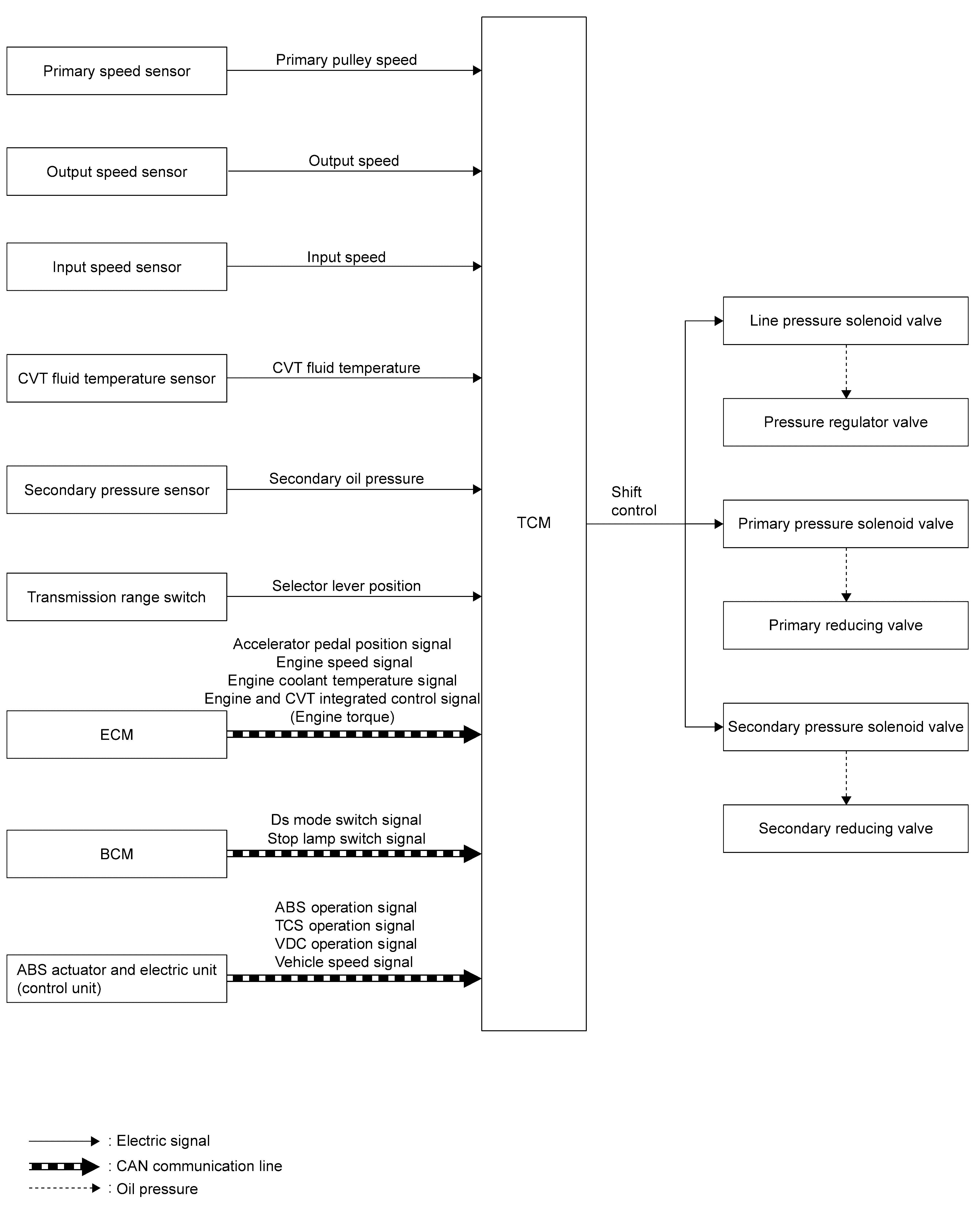

System Diagram
System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
