Component Parts Location
|
A. |
View with headlining removed |
B. |
RH rear passenger seat |
C. |
RH front passenger seat |
|||
|
D. |
View with lower B-pillar finisher removed |
E. |
Occupant classification system View with seat removed |
F. |
Radiator core support assembly |
|||
|
G. |
View with center console removed |
H. |
View with driver's door finisher removed |

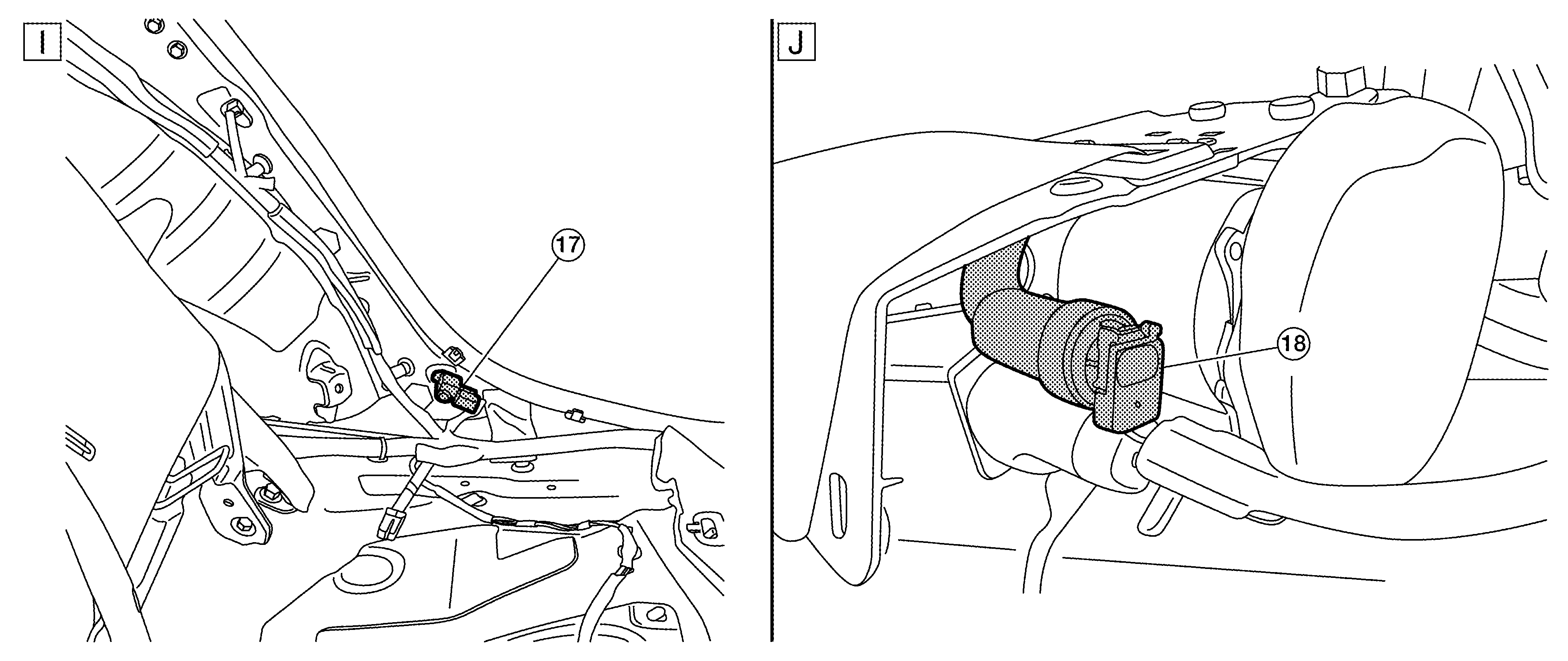

I. |
View with lower C-pillar finisher removed |
|||
|
J. |
View with component removed from vehicle |
|||||||
|
No. |
Component |
Function |
|
1. |
Front passenger air bag off indicator |
Refer to Component Parts Location . |
|
2. |
Front passenger air bag module |
Refer to Component Parts Location . |
|
3. |
Right knee air bag module |
Refer to Component Parts Location . |
|
4. |
Left knee air bag module |
Refer to Component Parts Location . |
|
5. |
Combination meter |
Displays air bag and seat belt information to the driver. |
|
6. |
Driver air bag module |
Refer to Components Parts Location . |
|
7. |

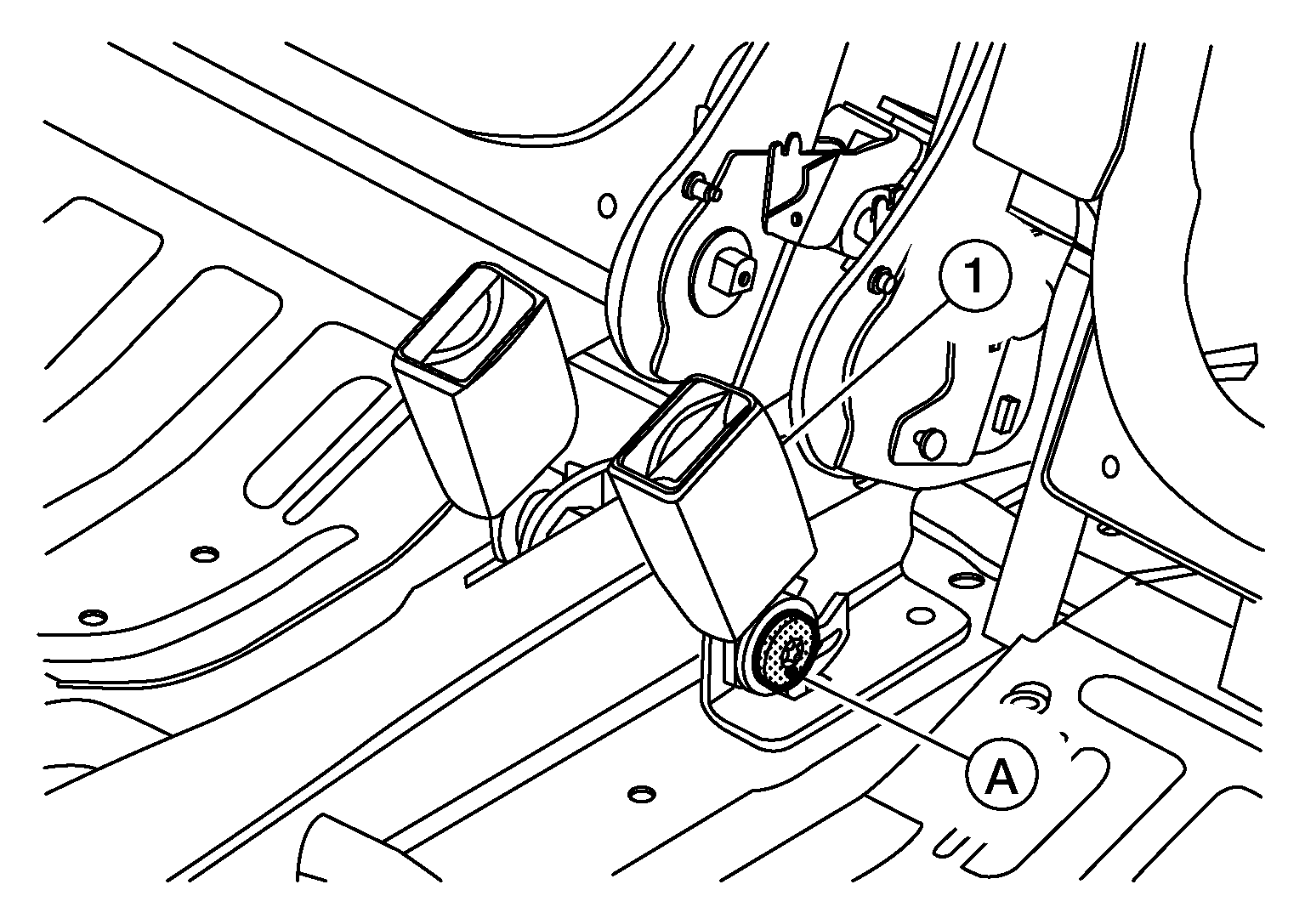

Seat belt buckle switch LH (RH similar) |
Refer to Component Parts Location . |
|
8. |
Side curtain air bag module RH (LH similar) |
Refer to Component Parts Location . |
|
9. |
Rear side air bag module RH (LH similar) |
Refer to Component Parts Location . |
|
10. |
Front side air bag module RH (LH similar) |
Refer to Component Parts Location . |
|
11. |
Front RH seat belt pre-tensioner (LH similar) |
Refer to Component Parts Location . |
|
12. |
Occupant classification system control unit |
Refer to System Description . |
|
13. |
Occupant classification system sensors |
Refer to System Description . |
|
14. |
Crash zone sensor |
Refer to Component Parts Location . |
|
15. |
Air bag diagnosis sensor unit |
Refer to Component Parts Location . |
|
16. |
Front door satellite sensor LH (RH similar) |
Refer to Component Parts Location . |
|
17. |
Rear side air bag satellite sensor LH (RH similar) |
Refer to Component Parts Location . |
|
18. |
Rear LH seat belt pre-tensioner (RH similar) |
Refer to Component Parts Location . |
