Component Location

WARNING: This page is about a different car, the 2020 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of NISSAN NORTH AMERICA, INC.

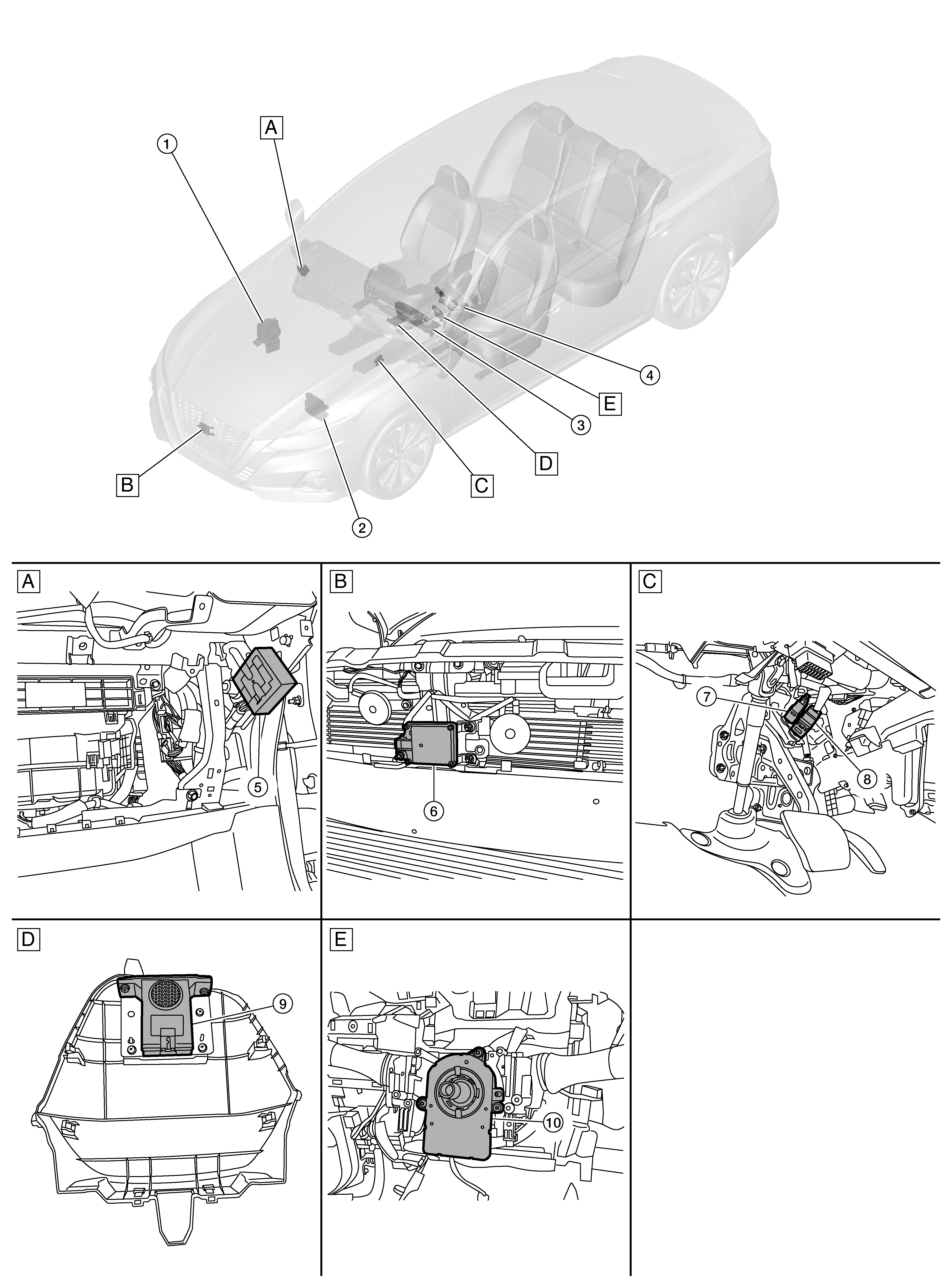

Right side on instrument panel

(view with glove box removed)

Radiator core support assembly

Upper side of brake pedal

Behind combination meter (view of component removed from vehicle)

Behind steering wheel (view with steering wheel removed)

Function
No.	Component	Vehicle-to-vehicle distance control mode	Conventional (fixed speed) cruise control mode	Function
1.	ABS actuator and electric unit (control unit)	x	x	ABS actuator and electric unit (control unit) transmits the vehicle speed signal (wheel speed), stop lamp signal and VDC/TCS/ABS system operation condition to ADAS control unit via CAN communication ABS actuator and electric unit (control unit) controls the brake, based on a brake fluid pressure control signal received from the ADAS control unit via CAN communication Refer to Component Location for detailed component location.
2.	ECM	x	x	ECM transmits the accelerator pedal position signal, brake pedal position switch signal, stop lamp switch signal, ICC steering switch signal, etc. to ADAS control unit via CAN communication ECM controls the electric throttle control actuator based on the engine torque demand received from the ADAS control unit via CAN communication Refer to Component Location (PR25DD) or Component Location (KR20DDET) for detailed component location.
3.	Combination meter (Information display)	x	x	Description: Refer to Component Location for detailed component location. System display and warning (Vehicle-to-vehicle distance control mode): Refer to System Description (without ProPILOT ASSIST) or System Description (with ProPILOT ASSIST). System display and warning (Conventional cruise control mode): Refer to System Description .
4.	ICC steering switch	x	x	Description: Refer to ICC Steering Switch . System display and warning (Vehicle-to-vehicle distance control mode): Refer to System Description (without ProPILOT ASSIST) or System Description (with ProPILOT ASSIST). System display and warning (Conventional cruise control mode): Refer to System Description .
5.	ADAS control unit	x	x	Refer to ADAS Control Unit . Refer to Component Location for detailed component location.
6.	Distance sensor	x	x	Refer to Distance Sensor .
7.	Brake pedal position switch	x	x	Refer to Brake Pedal Position Switch .
8.	Stop lamp switch	x	x	Refer to Stop Lamp Switch .
9.	Warning system buzzer	x	x	Refer to Driver Assistance Buzzer .
10.	Chassis control module (with built in steering angle sensor)	x	Measures the rotation amount, rotation speed, and rotation direction of steering wheel, and then transmits them to ADAS control unit via CAN communication Refer to Component Location for detailed component location.
