Removal and Installation: Removal

  1. Disconnect the battery negative terminal. Refer to Removal and Installation .
  2. Remove the shift selector finisher. Refer to Removal and Installation .

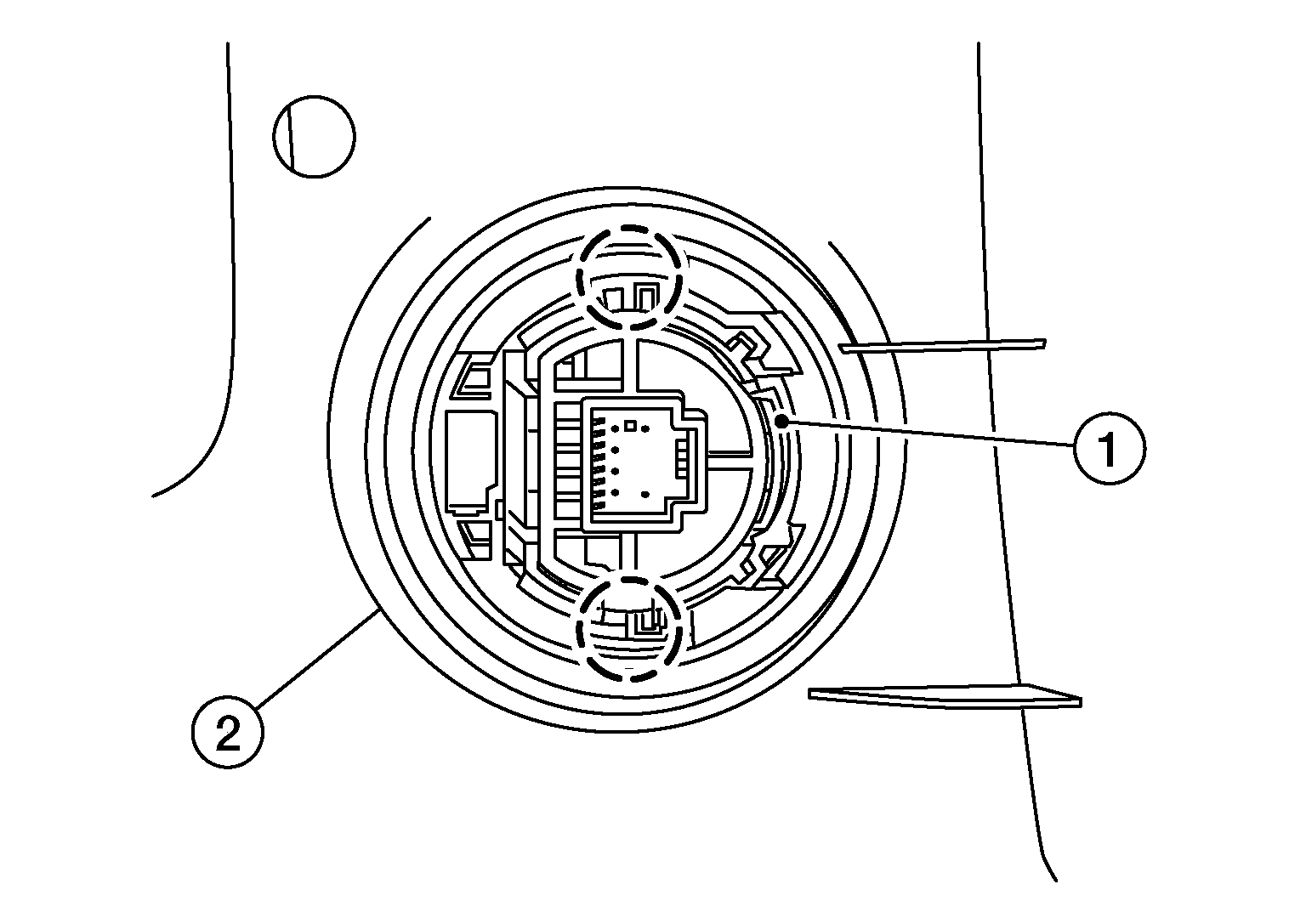

  3. Release pawls and remove the push-button ignition switch (1) from the shift selector finisher (2).
    GNSALKIA1263Z-263Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Pawl
  4. Release the pawl on each side and remove the push-button ignition switch from the NATS antenna amp.
