Exploded View

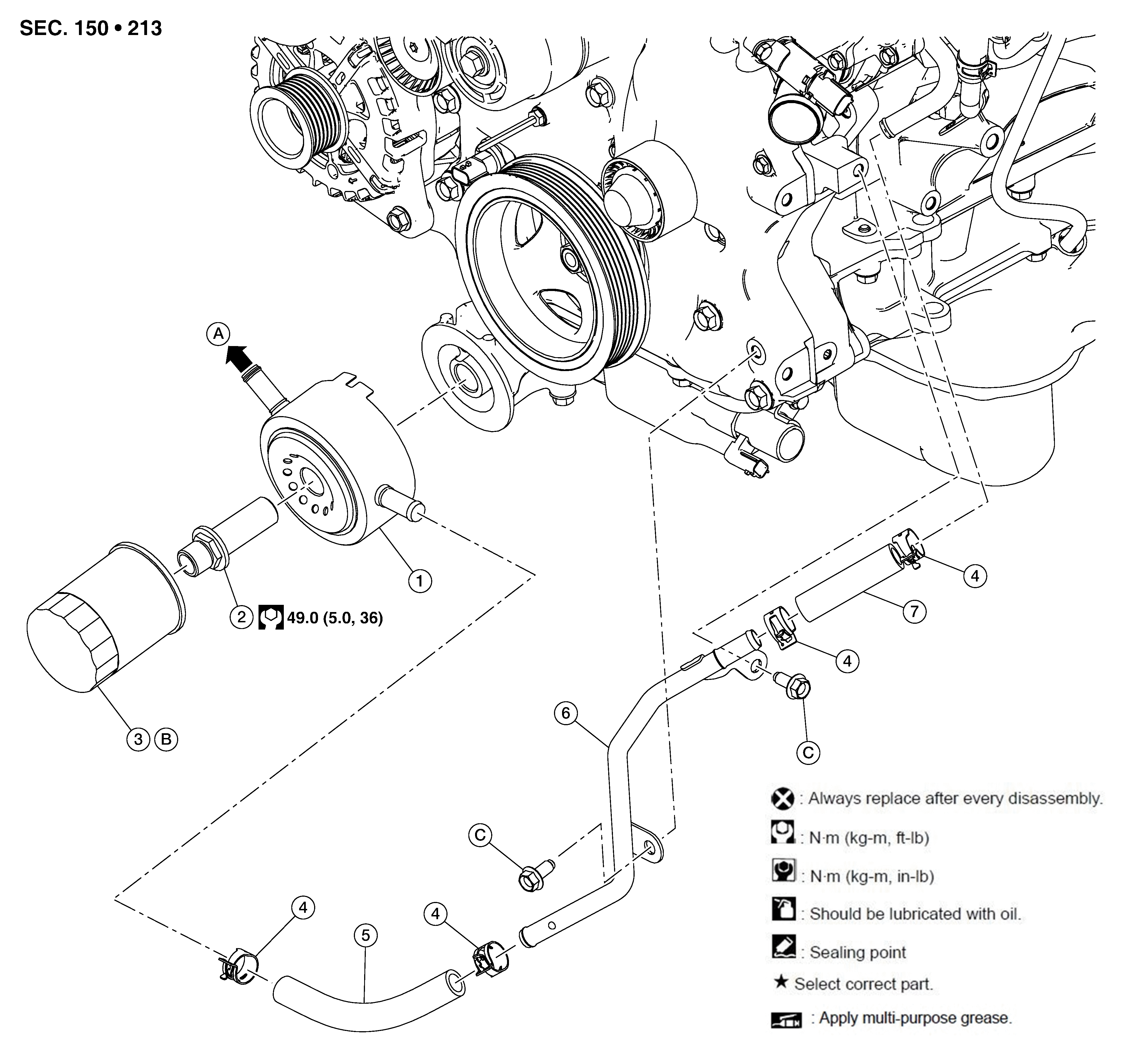

Fig 1: Oil Cooler Components With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Oil cooler	2.	Connector bolt	3.	Oil filter
4.	Clamp	5.	Water hose A	6.	Water pipe
7.	Water hose B	A.	To water hose. Refer to Exploded View .	B.	Refer to Removal and Installation .
C.	Refer to Removal and Installation .
