Exploded View

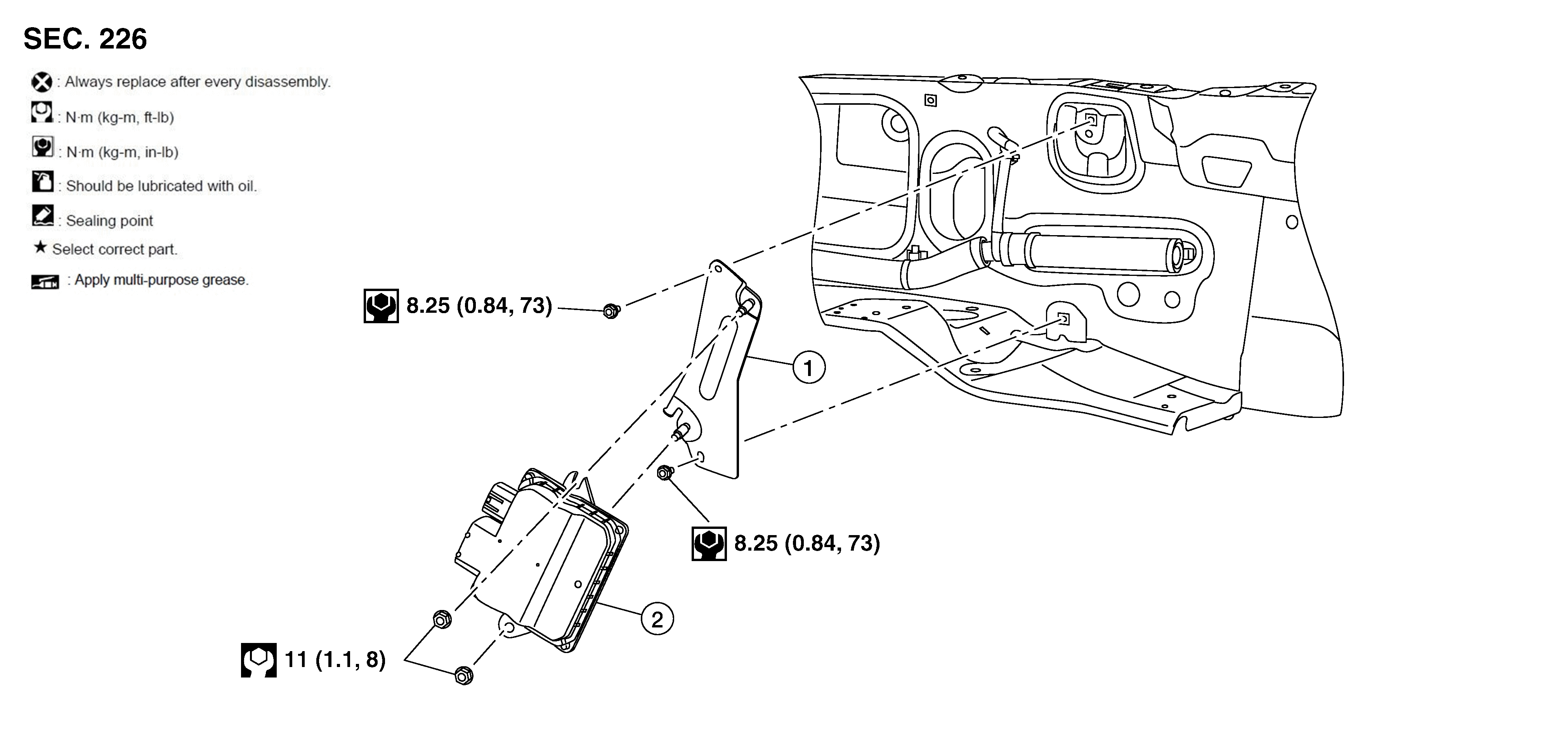

Fig 1: ECM With Torque Specifications

GNSAWBIA0443Z-443

Courtesy of NISSAN NORTH AMERICA, INC.

1.

ECM bracket

2.

ECM
