Exploded View

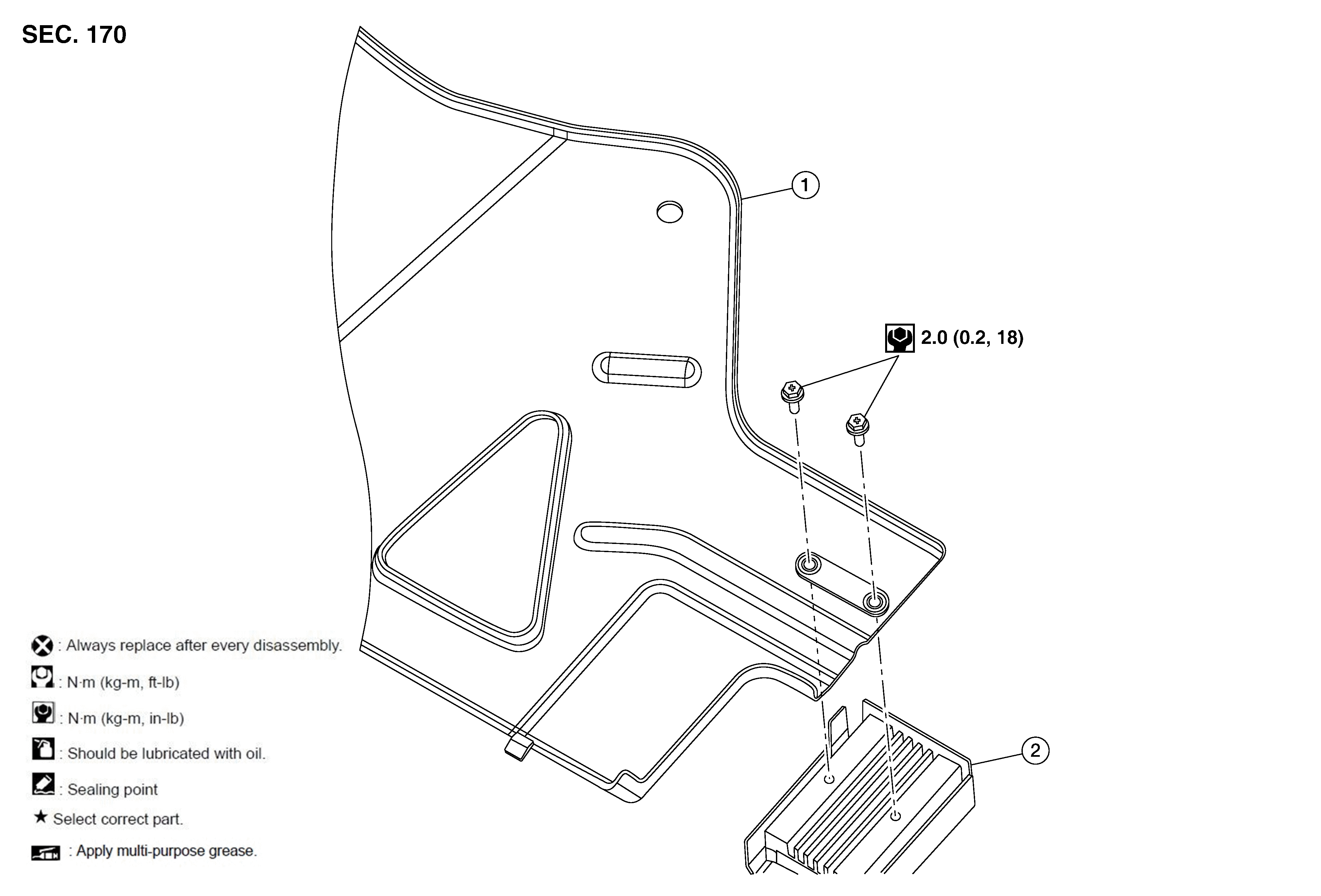

Fig 1: Fuel Pump Control Module (FPCM) With Torque Specifications

GNSAWBIA0453Z-453

Courtesy of NISSAN NORTH AMERICA, INC.

1.

Fuel pump control module bracket

2.

Fuel pump control module
