Vehicle-To-Vehicle Distance Control Mode

NOTE:
  • When there is no vehicle ahead, drive at the set speed steadily.
  • When there is a vehicle ahead, control to maintain distance from the vehicle ahead, watching its speed.
  • The running speed can be set between 30 and 144 km/h (20 and 90 MPH).
CAUTION: Never set the cruise speed exceeding the posted speed limit.
  1. CHECK FOR MAIN SWITCH
    1. Start the engine.

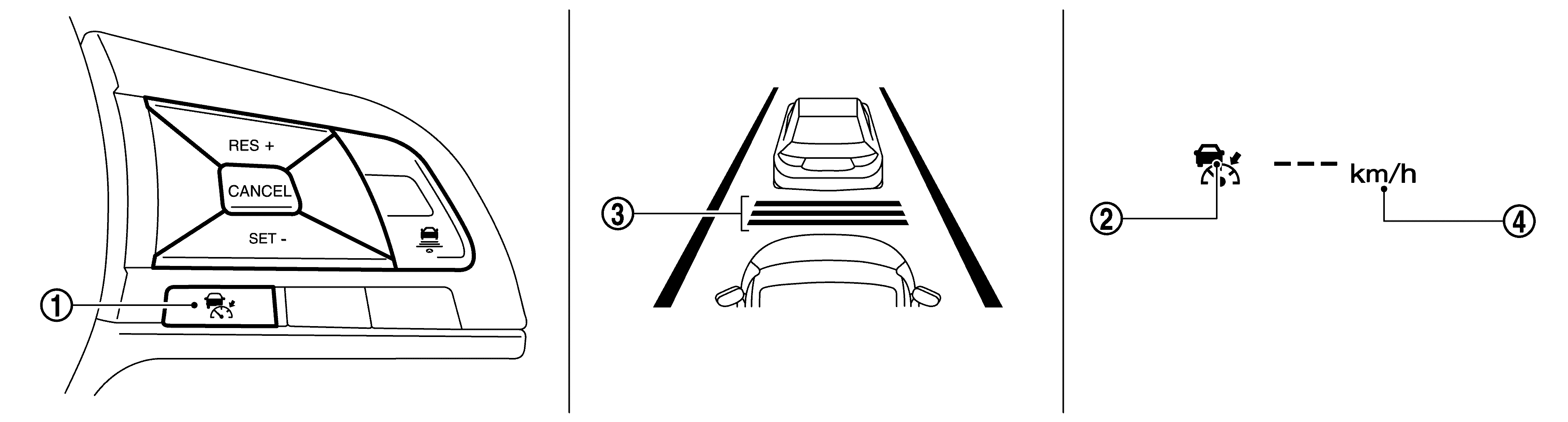

    2. Press the MAIN switch SYMBOL (less than 1.5 seconds).
      GNSILL0273439-439Courtesy of NISSAN NORTH AMERICA, INC.

      Information display status

      MAIN switch indicator SYMBOL

      :

      ON

      Set distance indicator SYMBOL

      :

      Long mode

      Set vehicle speed indicator SYMBOL

      :

      "------"

      "km/h" ("MPH")
    3. Check the ICC system display on the information display to check that the vehicle-to-vehicle distance control mode is ready for activation.
    4. Press the MAIN switch, and check that the ICC system display on the information display turns OFF when the ICC system is deactivated.
    5. Check that the ICC system display on the information display turns OFF after starting the engine again.

    GO TO 2.

  2. CHECK FOR DISTANCE SWITCH
    1. Start the engine.
    2. Press the MAIN switch (less than 1.5 seconds).
    3. Press the DISTANCE switch.
    4. Check that the set distance indicator changes display in order of: (Long) → (Middle) → (Short).
      GNSILL0184630-630Courtesy of NISSAN NORTH AMERICA, INC.
      NOTE: When MAIN switch is turned ON, the initial setting becomes the setting last selected.

    GO TO 3.

  3. CHECK FOR RES+, SET-, AND CANCEL SWITCHES
    1. Check that RES+, SET-, CANCEL switches are operated smoothly.
    2. Check that switches come up as hand is released from the switches.

    GO TO 4.

  4. SET CHECKING
    1. Start the engine.
    2. Press the MAIN switch (less than 1.5 seconds) and turn the vehicle-to-vehicle distance control mode ON.
    3. Drive the vehicle at 30 km/h (20 MPH) or more.
    4. Push down the SET- switch.
    5. Check that the desired speed is set and vehicle-to-vehicle distance control mode control starts when releasing SET- switch.
    NOTE: The set vehicle speed is indicated on the set vehicle speed indicator in the ICC system display on the information display.

    GO TO 5.

  5. CHECK FOR INCREASE OF CRUISING SPEED
    1. Set the vehicle-to-vehicle distance control mode at desired speed.
    2. Check that the set speed increases by 1 km/h (1 MPH) as RES+ switch is pushed up.
    NOTE: The maximum set speed of the vehicle-to-vehicle distance control mode is 144 km/h (90 MPH).
    CAUTION: Never set the cruise speed exceeding the posted speed limit.

    GO TO 6.

  6. CHECK FOR DECREASE OF CRUISING SPEED
    1. Set the vehicle-to-vehicle distance control mode at desired speed.
    2. Check that the set speed decreases by 1 km/h (1 MPH) as SET- switch is pushed down.
    NOTE: The minimum set speed is approximately 30 km/h (20 MPH).

    GO TO 7.

  7. CHECK FOR CANCELLATION OF VEHICLE-TO-VEHICLE DISTANCE CONTROL MODE

    Check that the vehicle-to-vehicle distance control mode is canceled when performing the following operations.

    • When the brake pedal is depressed after vehicle-to-vehicle distance control mode is set and the vehicle is driven.
    • When the clutch pedal is depressed after vehicle-to-vehicle distance control mode is set and the vehicle is driven.
    • When the MAIN switch is turned OFF after vehicle-to-vehicle distance control mode is set and the vehicle is driven.
    • When the CANCEL switch is pressed after vehicle-to-vehicle distance control mode is set and the vehicle is driven.

    GO TO 8.

  8. CHECK FOR RESTORING SPEED THAT IS SET BY VEHICLE-TO-VEHICLE DISTANCE CONTROL MODE BEFORE CANCELLATION

    Check that the vehicle restores the previous speed kept before the system deactivation when performing the following operations.

    • Drive the vehicle when the vehicle-to-vehicle distance control mode is set and depress the brake pedal to cancel the control. Check that the vehicle restores the previous vehicle speed kept before the system deactivation when pushing up the RES+ switch.
    • Drive the vehicle when the vehicle-to-vehicle distance control mode is set and press the CANCEL switch to cancel the control. Check that the vehicle restores the previous vehicle speed kept before the system deactivation when pushing up the RES+ switch.

    INSPECTION END
