Removal and Installation: Removal

  1. Remove the main power window and lock/unlock switch LH escutcheon.

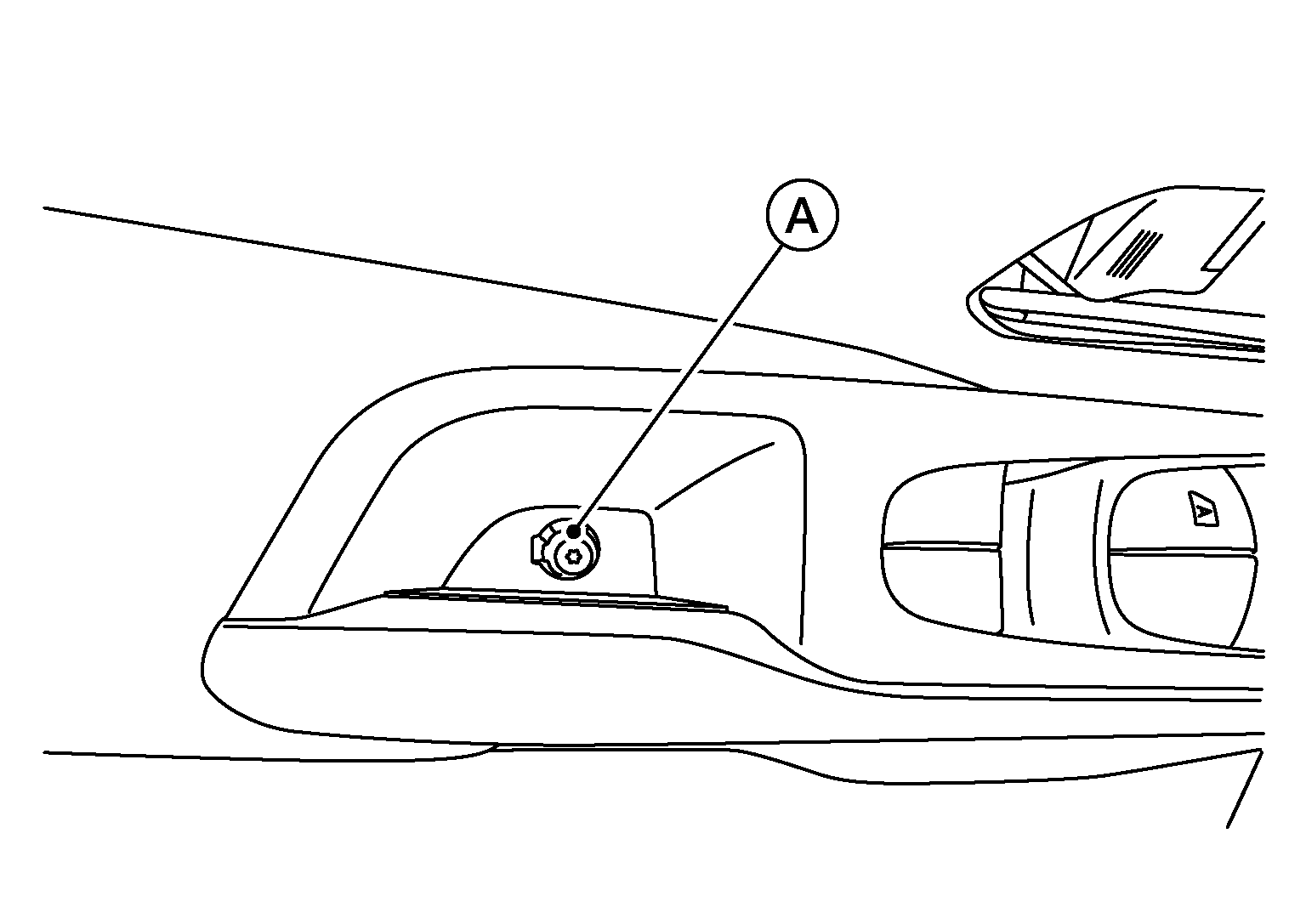

  2. Remove the main power window and door lock/unlock switch screw (A).
    GNSALKIA4479Z-479Courtesy of NISSAN NORTH AMERICA, INC.

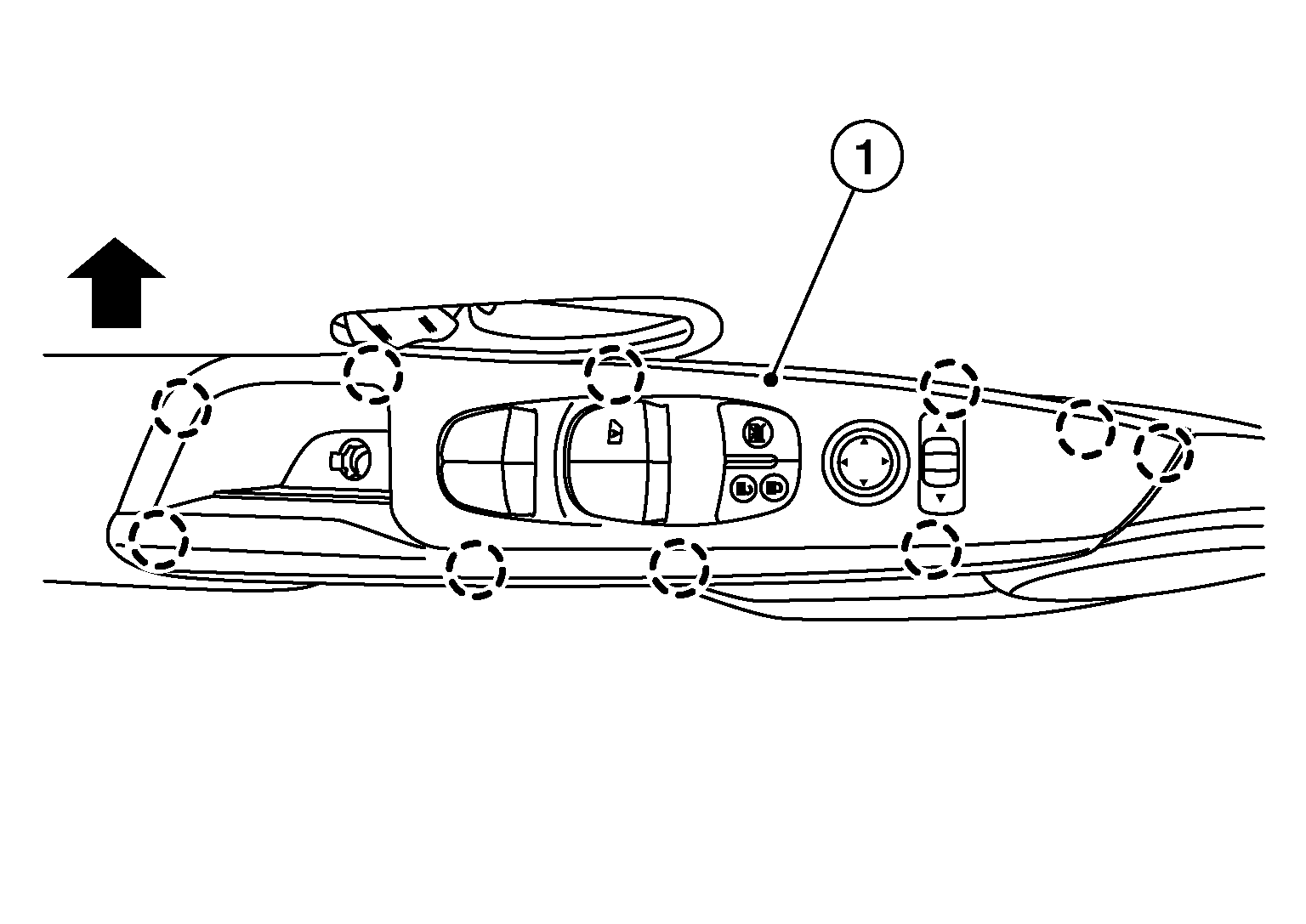

  3. Release pawls using a suitable tool and remove main power window and door lock/unlock switch finisher (1) in direction shown (SYMBOL ).
    GNSALKIA4430Z-430Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Pawl

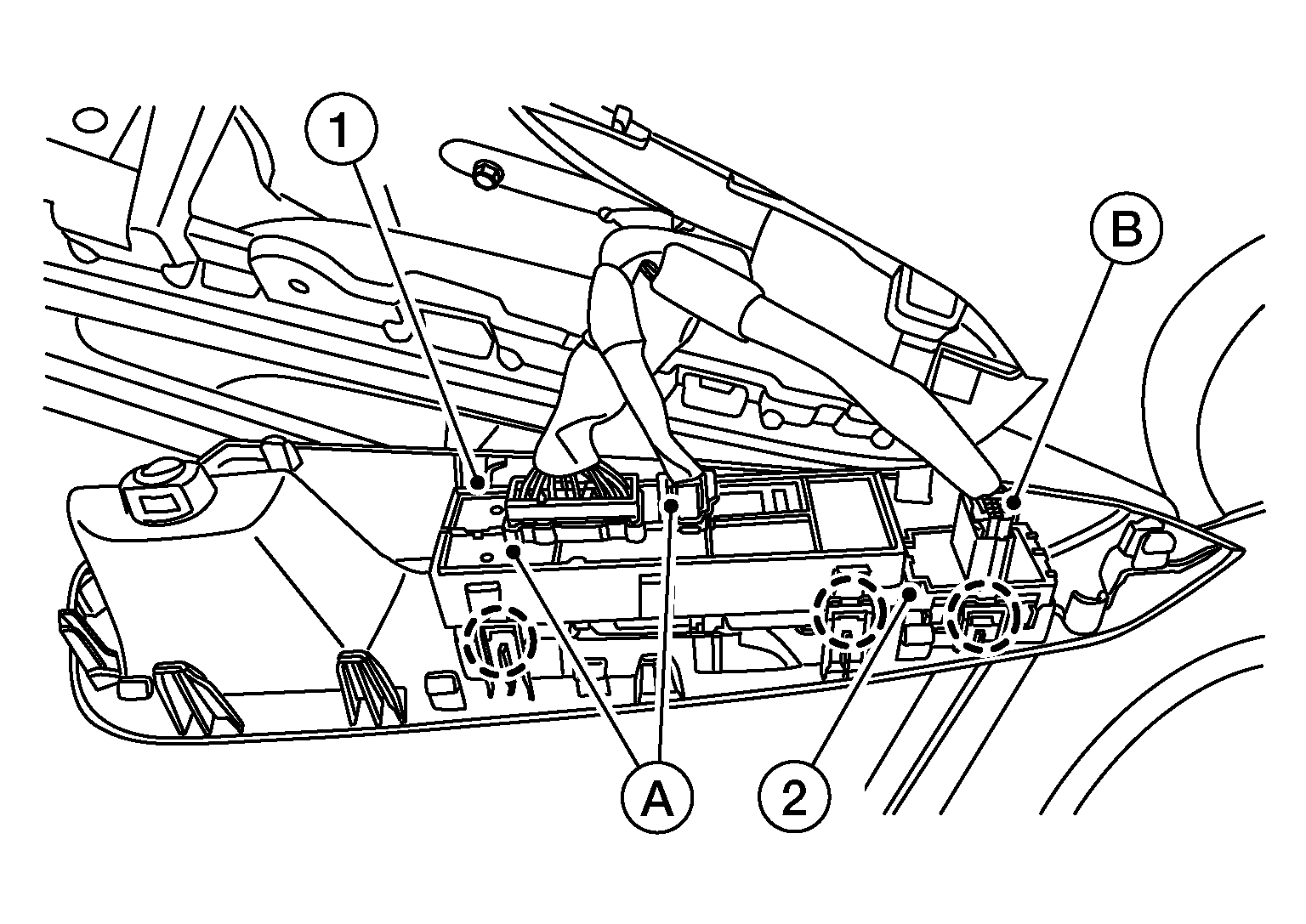

  4. Disconnect the harness connectors (A) from the main power window and door lock/unlock switch (1) and harness connector (B) from the door mirror remote control switch (2) and remove.
    GNSALKIA4429Z-429Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Pawl

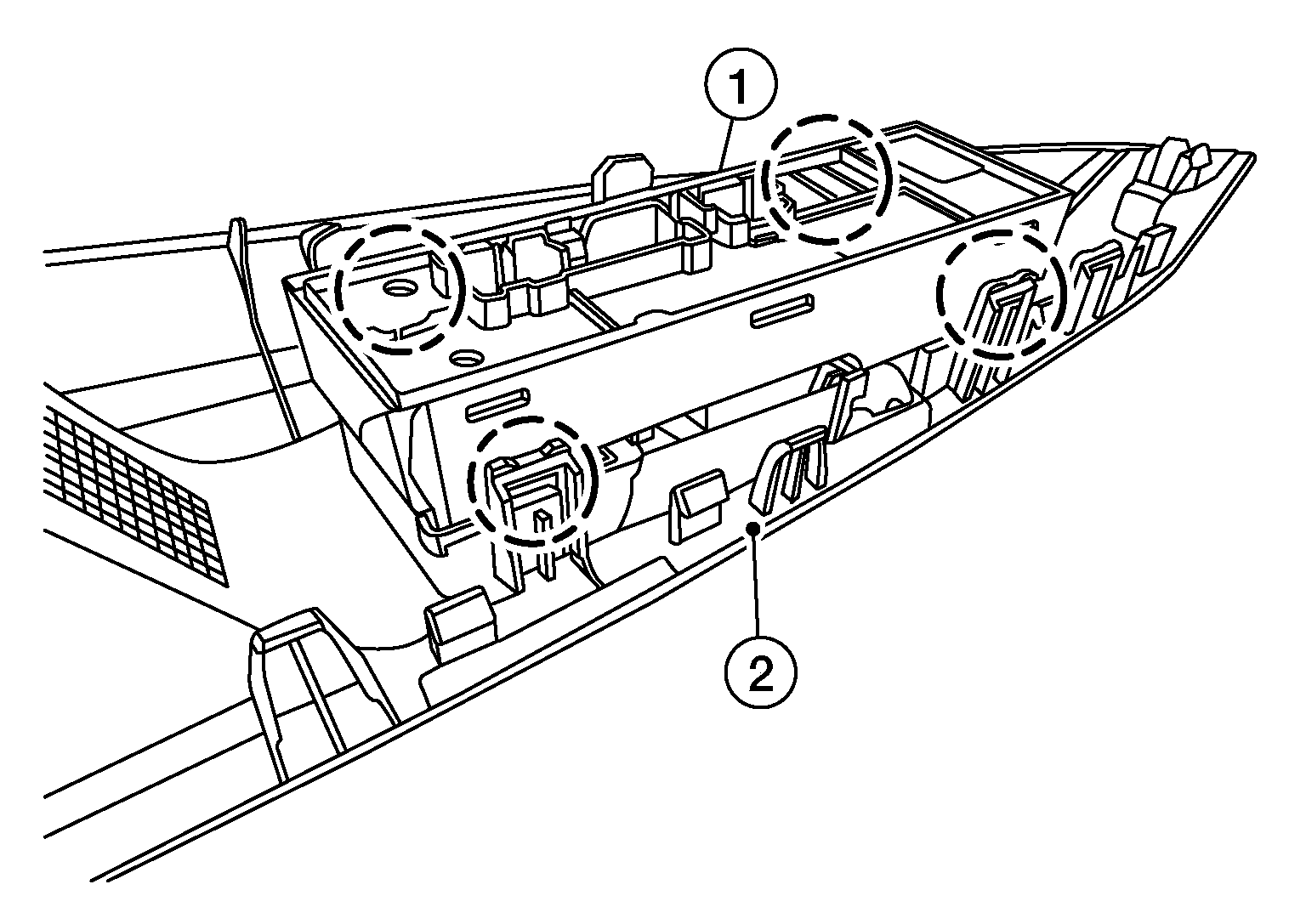

  5. Release pawls, then remove main power window and door lock/unlock switch (1) from the main power window and door lock/unlock switch finisher (2).
    GNSAWKIA4084Z-084Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Pawl
