Removal and Installation: Removal

  1. Remove the cover, then remove rear power window switch finisher screw.

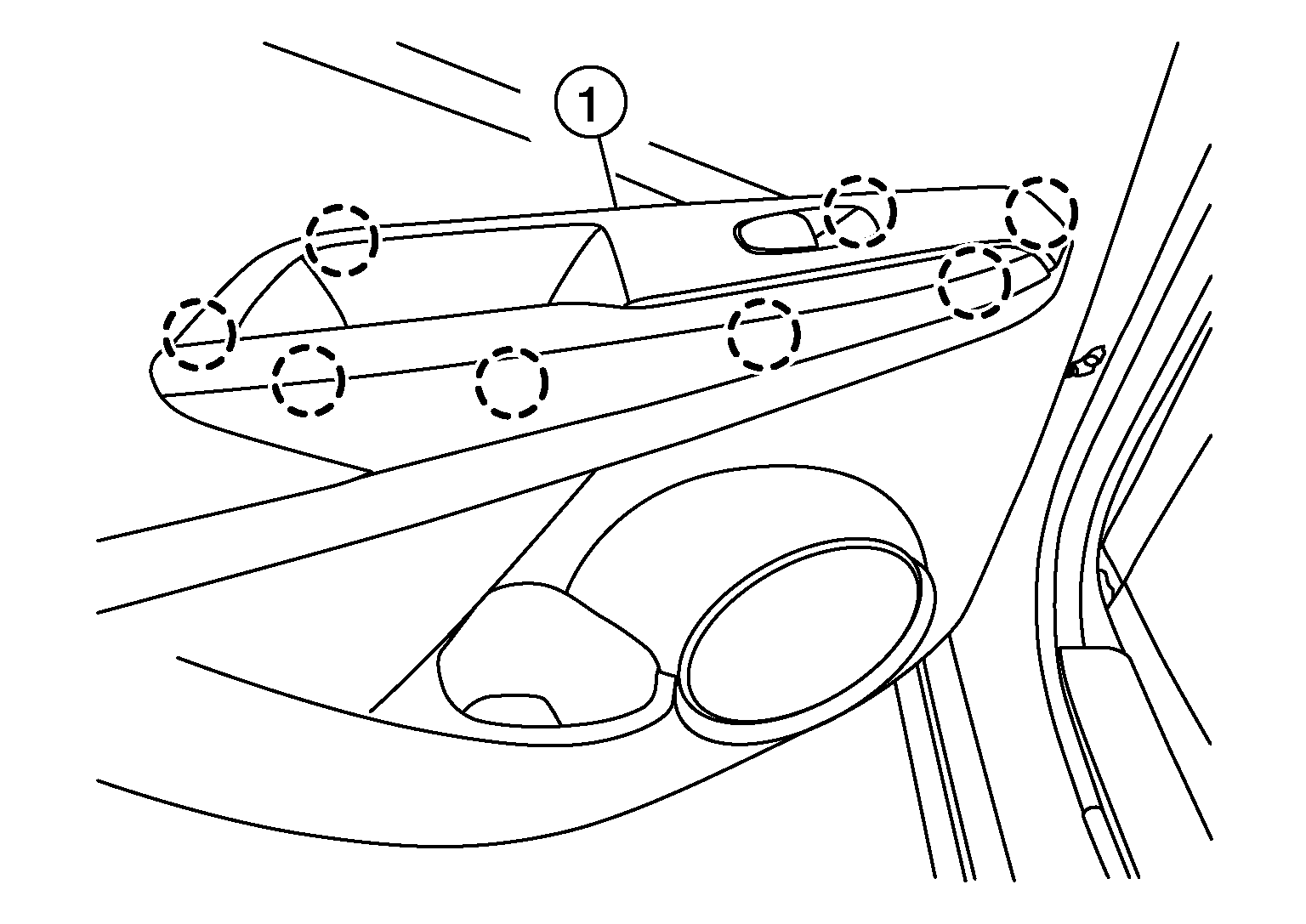

  2. Release pawls using a suitable tool and then remove the rear power window switch finisher (1).
    GNSALKIA4434Z-434Courtesy of NISSAN NORTH AMERICA, INC.
    NOTE: LH shown; RH similar

    SYMBOL

    : Pawl
  3. Disconnect harness connector from rear power window switch.
  4. Release pawls using suitable tool, then remove rear power window switch (1) from rear power window switch finisher.
    GNSALKIA4480Z-480Courtesy of NISSAN NORTH AMERICA, INC.
    NOTE: LH shown; RH similar

    SYMBOL

    : Pawl
