Ignition Timing: Inspection

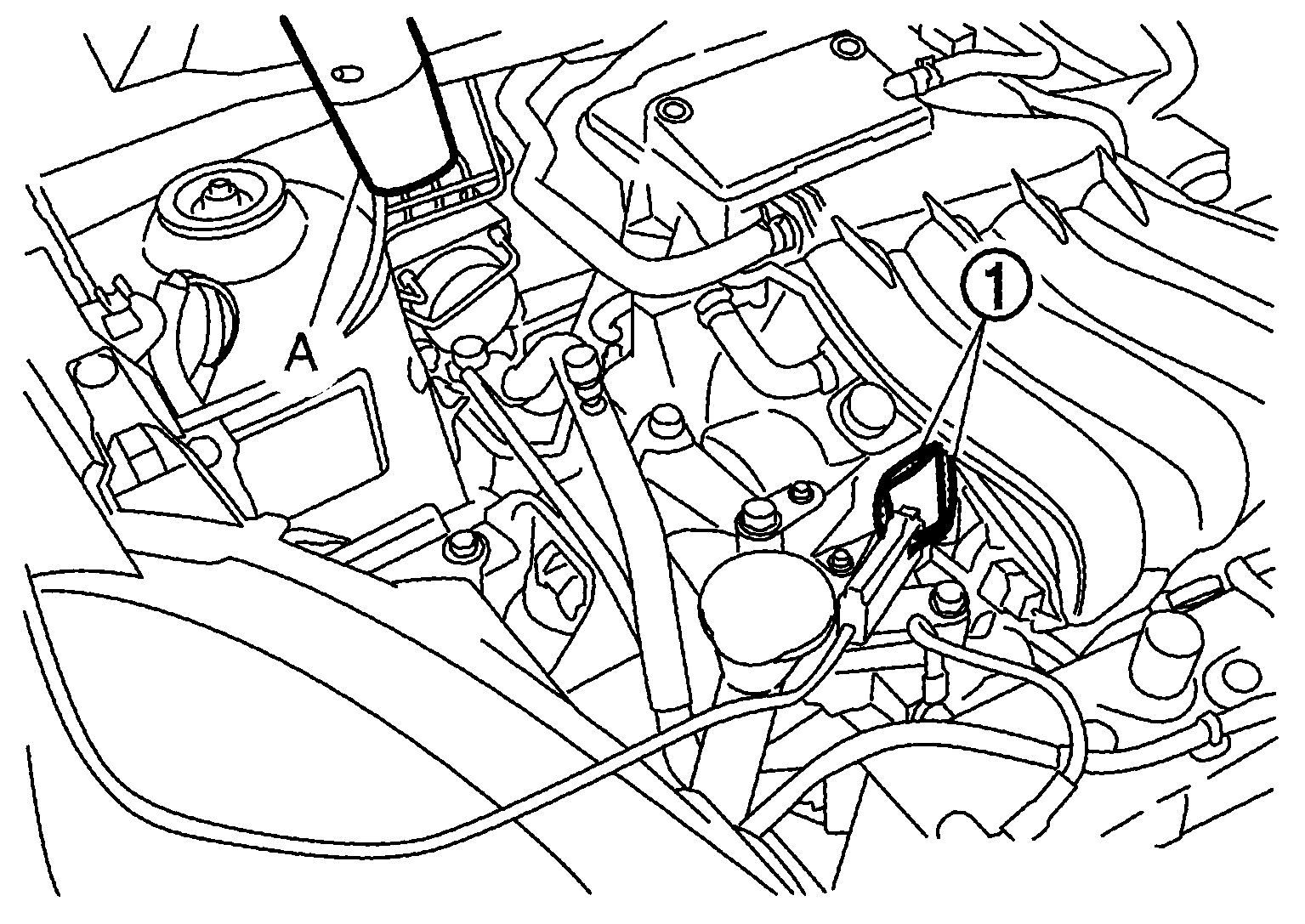

1. Attach timing light (A) to loop wire (1) as shown, below.

   Courtesy of NISSAN NORTH AMERICA, INC.

2. Check ignition timing.

   Courtesy of NISSAN NORTH AMERICA, INC.

   1	: Timing indicator

INSPECTION END
