Steering Control System
›
Removal And Installation
›
EPS Control Unit
›

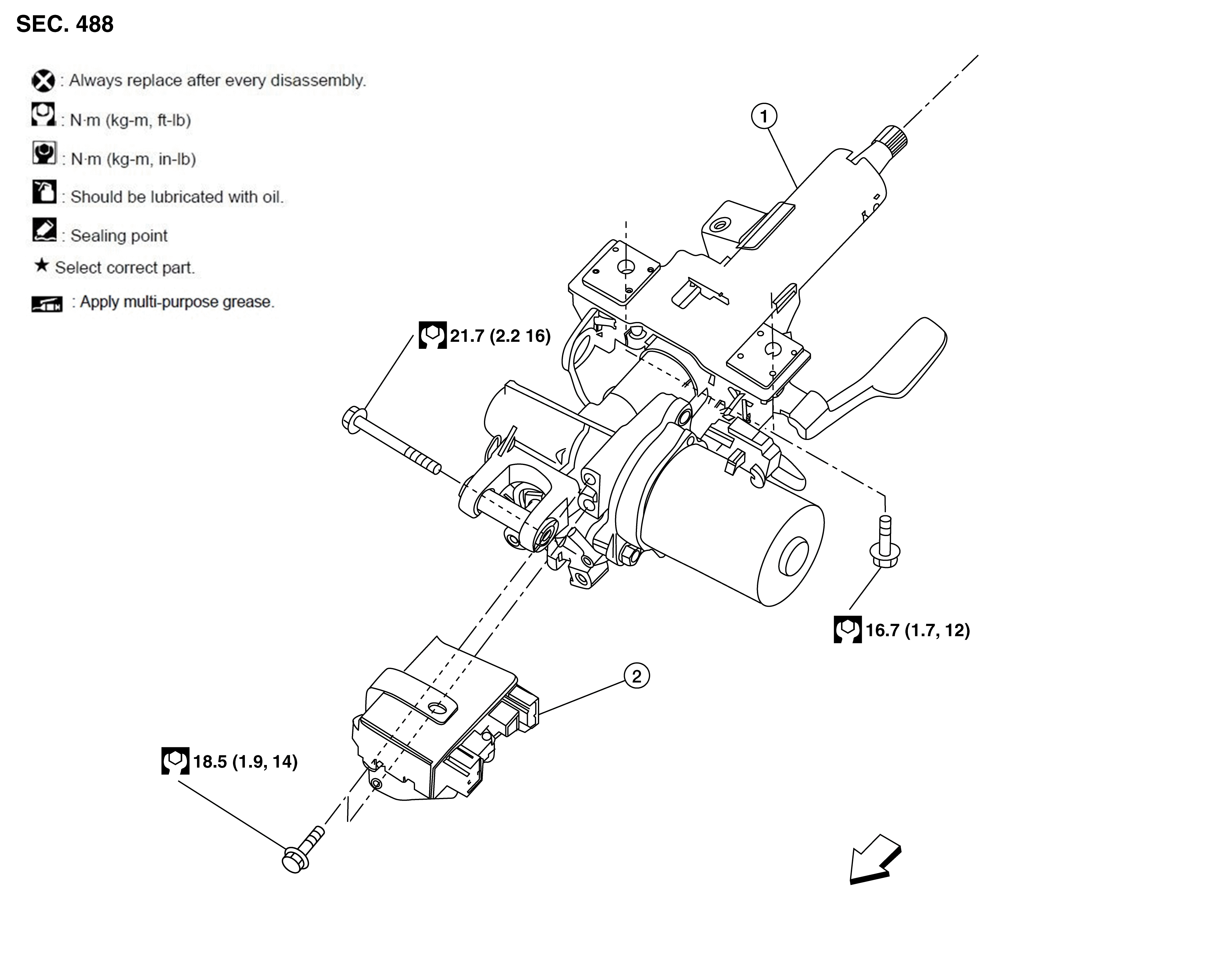

Exploded View
Exploded View
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Steering column
2.
EPS control unit
Front
Courtesy of NISSAN NORTH AMERICA, INC.
