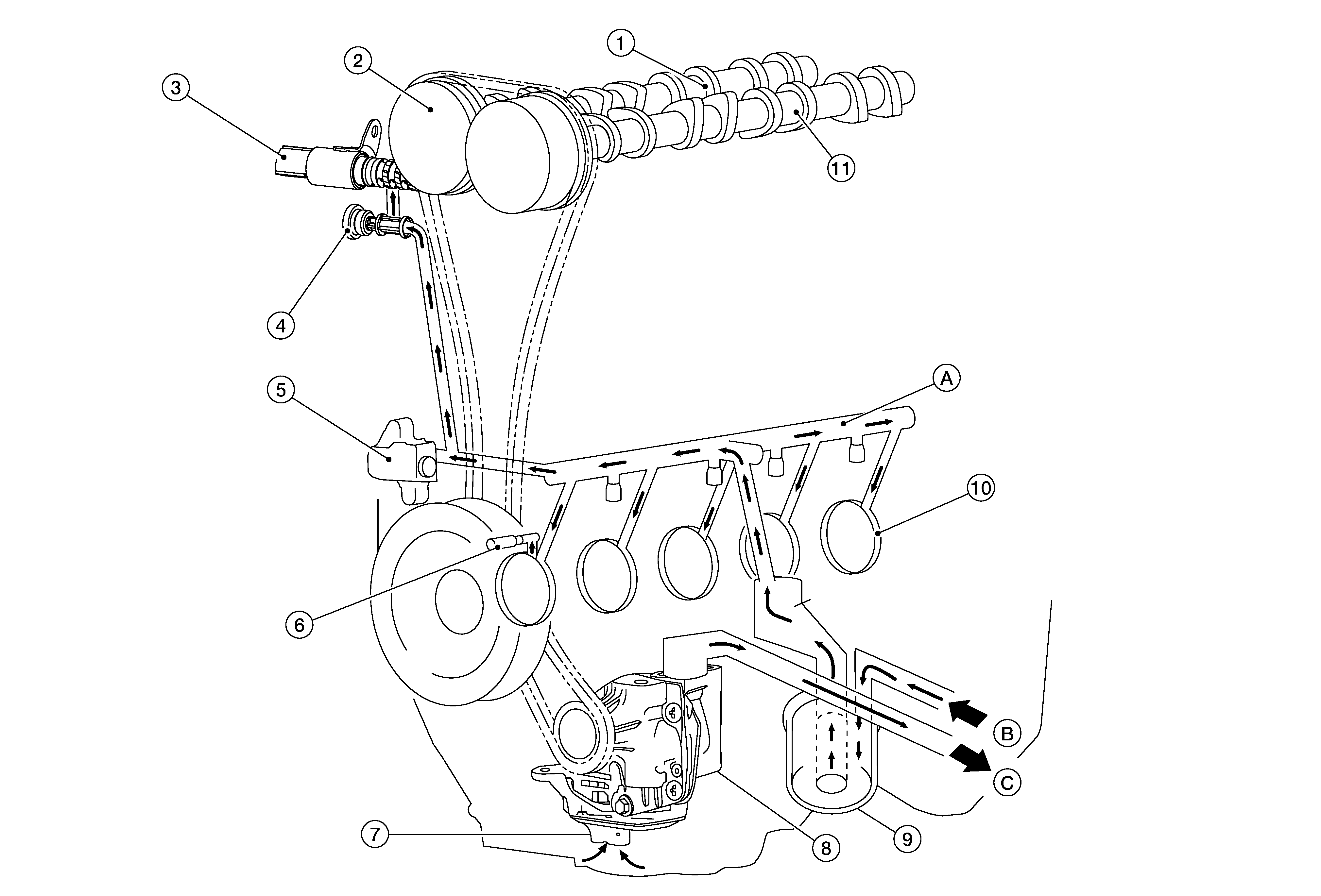

Engine Lubrication System
|
1. |
Camshaft (EXH) |
2. |
Camshaft sprocket (EXH) |
3. |
Exhaust valve timing control solenoid valve |
|
4. |
Oil filter (for exhaust valve timing control solenoid valve) |
5. |
Timing chain tensioner |
6. |
Timing chain oil jet |
|
7. |
Oil strainer |
8. |
Oil pump |
9. |
Oil filter |
|
10. |
Main bearing |
11. |
Camshaft (INT) |
A. |
Main gallery |
|
B. |
From oil cooler. Refer to Exploded View . |
C. |
To oil cooler. Refer to Exploded View . |
||
