Removal And Installation
›
Lower Joint
›
Exploded View
Exploded View

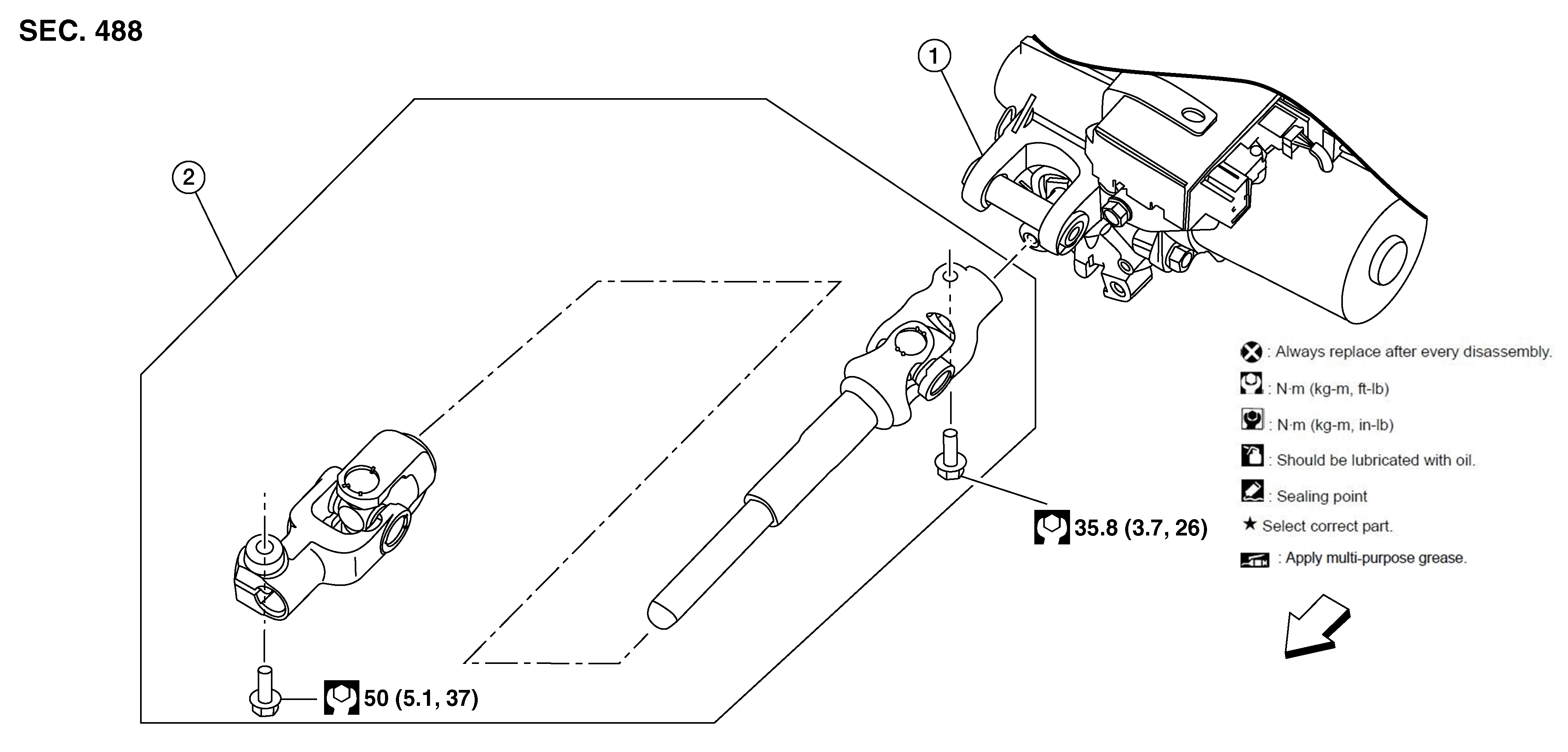

Fig 1: Lower Joint With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Steering column
2.
Lower joint
Front
Courtesy of NISSAN NORTH AMERICA, INC.
