Exploded View
Exploded View

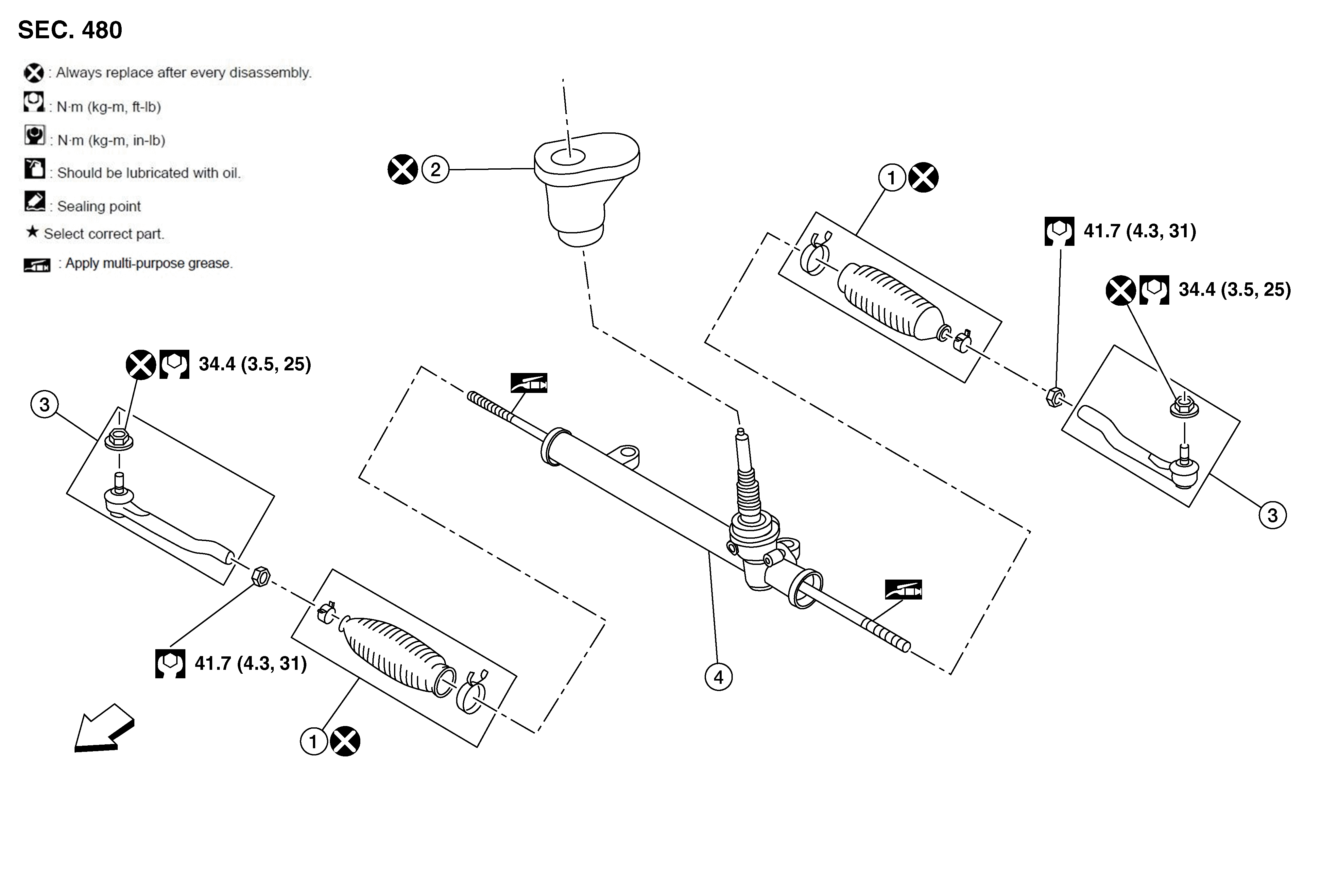

Fig 1: Steering Gear And Linkage With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Boot assembly
2.
Hole cover
3.
Outer socket
4.
Steering gear
Front
Courtesy of NISSAN NORTH AMERICA, INC.
