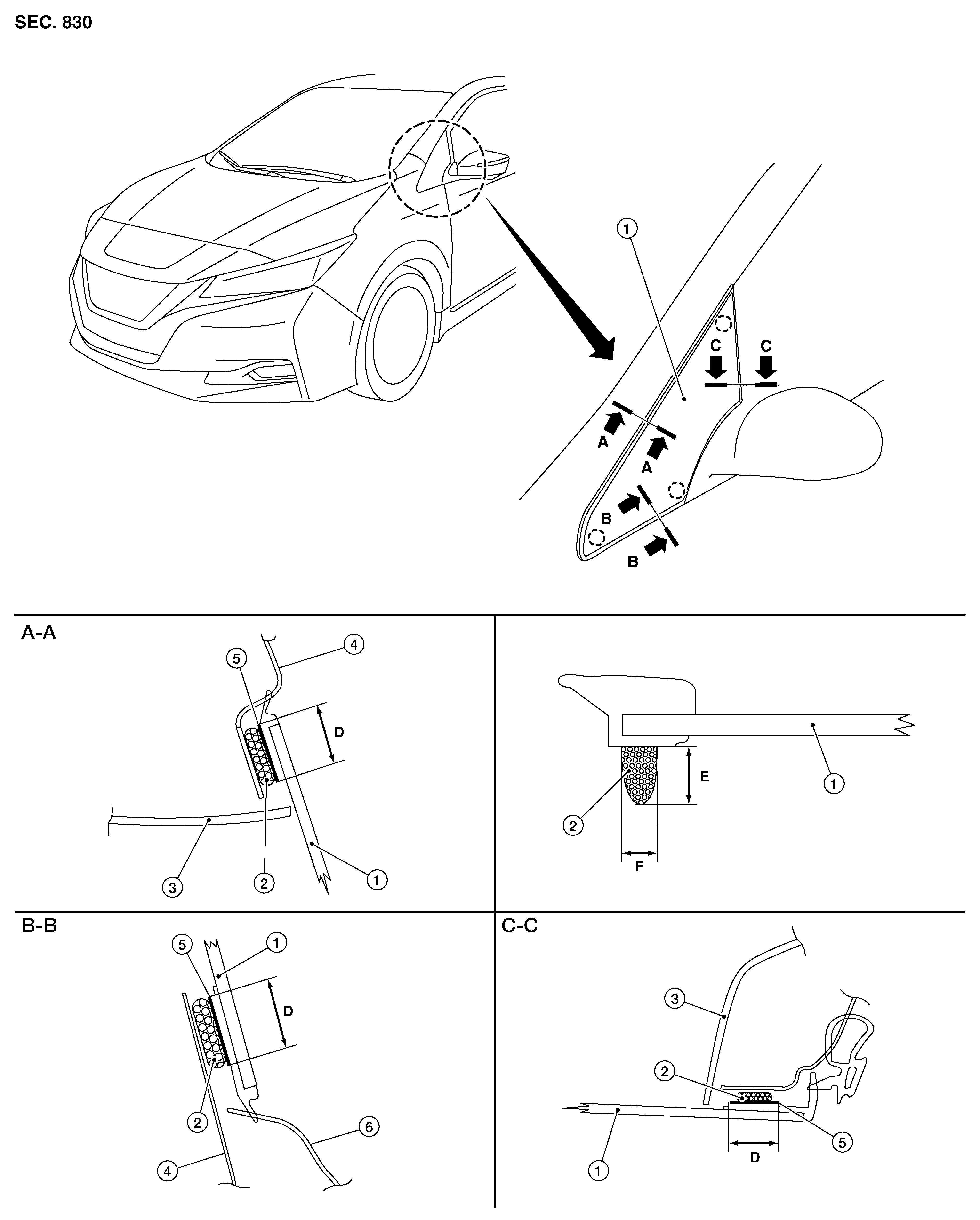

Unit mm (in)
1.
Opera window glass
2.
Adhesive
3.
Front pillar finisher
4.
Body side outer
5.
Glass primer
6.
Front fender panel
Pawl
D.
15 mm (0.59 in)
E.
12 mm (0.47 in)
F.
7 mm (0.28 in)
Courtesy of NISSAN NORTH AMERICA, INC.
