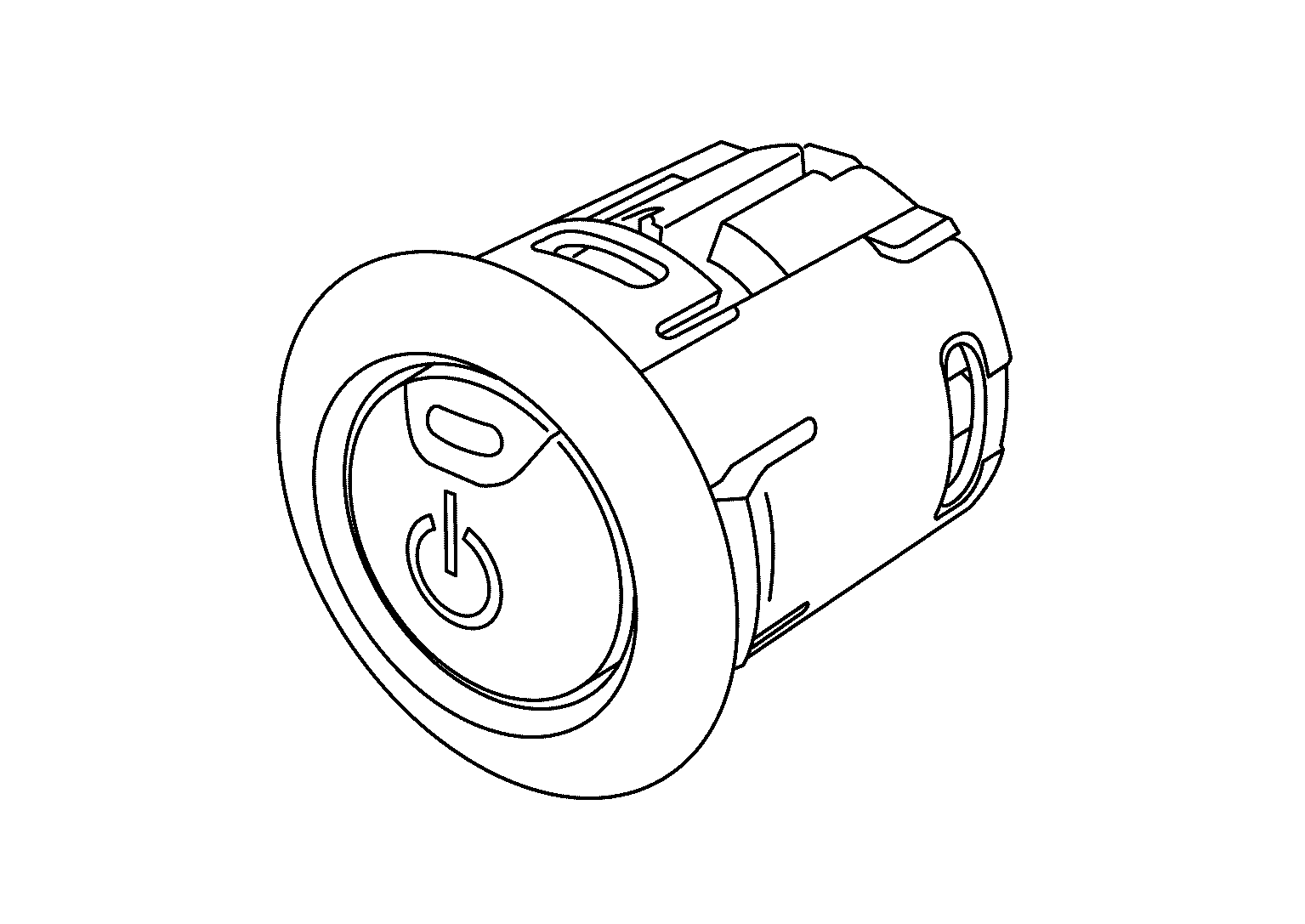

Power Switch
Push-button ignition switch is installed in the console.
When the power switch (push switch) is pressed it transmits the status signal to the BCM and IPDM E/R.
Courtesy of NISSAN NORTH AMERICA, INC.
