Exploded View

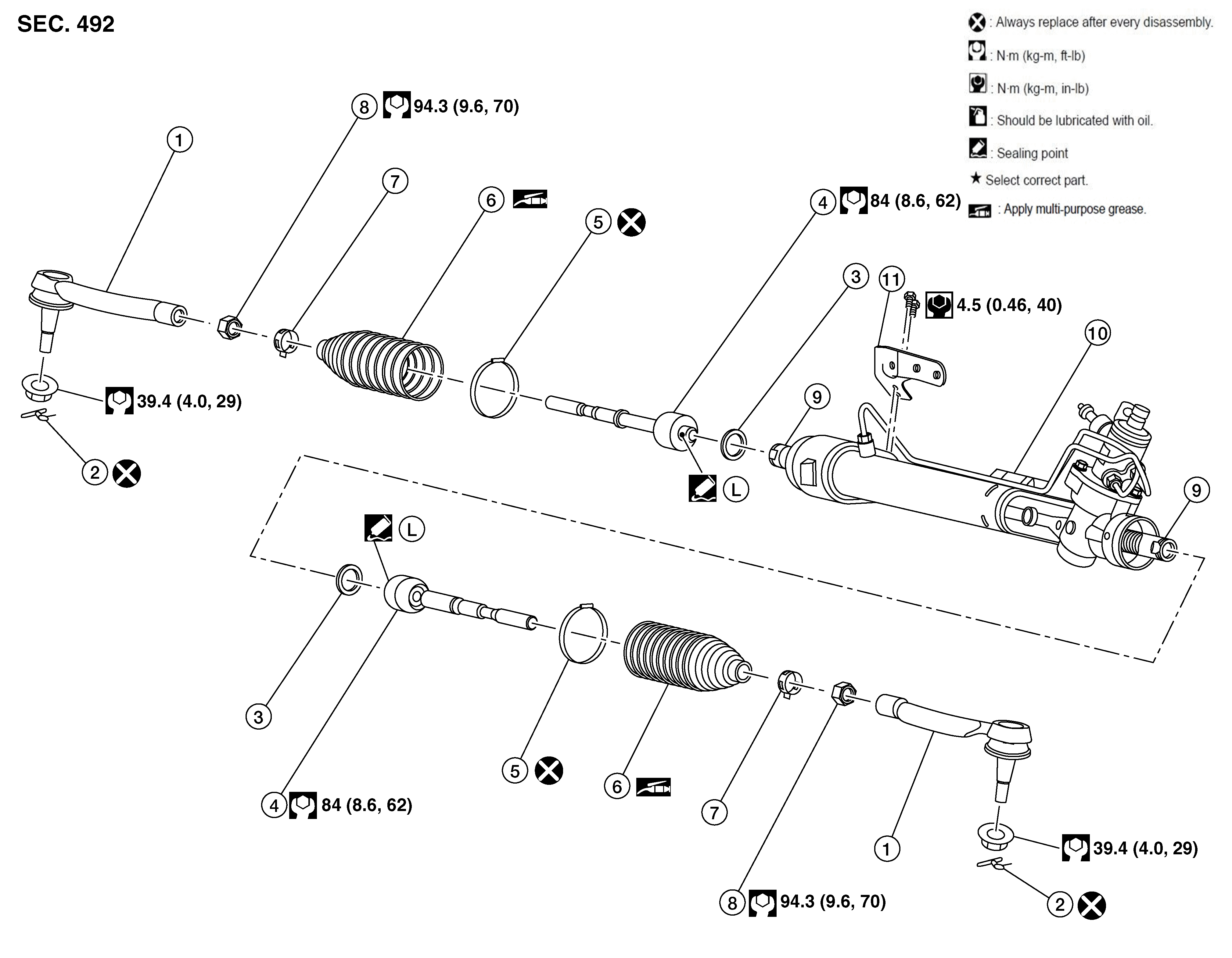

Fig 1: Steering Gear And Linkage Components With Torque Specifications
GNSAWGIA0386Z-386Courtesy of NISSAN NORTH AMERICA, INC.

1.

Outer socket

2.

Cotter pin

3.

Spacer

4.

Inner socket

5.

Large boot clamp

6.

Boot

7.

Small boot clamp

8.

Inner socket lock nut

9.

Rack bar (not serviceable)

10.

Steering gear

11.

Bracket
