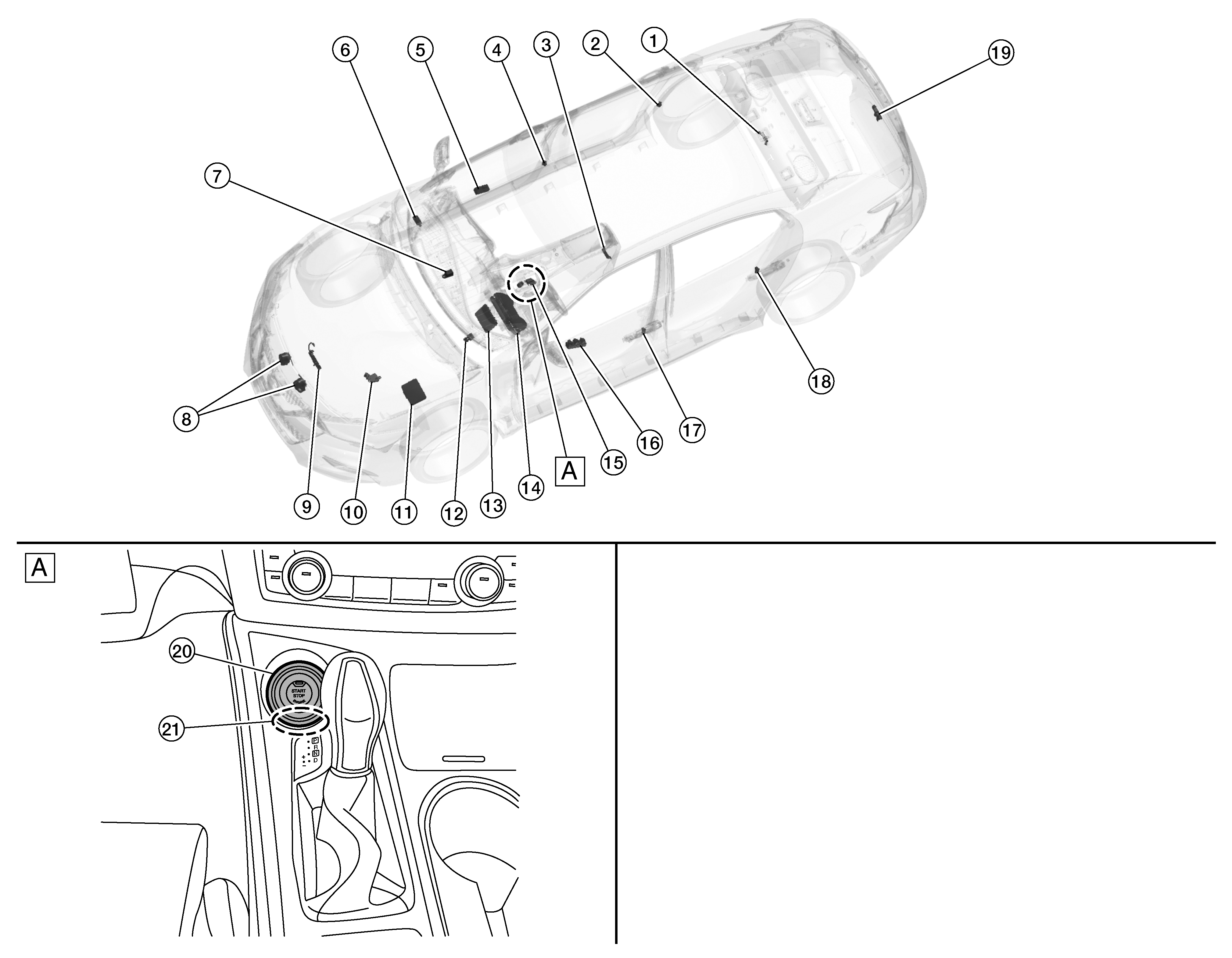

Component Location

A.

View of center console

No.

Component

Function

1.

Inside key antenna (parcel shelf)

Inside key antenna (parcel shelf) detects whether Intelligent Key is inside the vehicle or not, and then transmits the signal to the BCM.

Refer to Component Location for detailed component location.

2.

Rear door switch RH

Door switch detects door open/close condition and then transmits ON/OFF signal to BCM.

Refer to Rear Door Switch .

3.

Inside key antenna (console)

Inside key antenna (console) detects whether Intelligent Key is inside the vehicle or not, and then transmits the signal to the BCM.

Refer to Component Location for detailed component location.

4.

Front door switch RH

Door switch detects door open/close condition and then transmits ON/OFF signal to BCM.

Refer to Front Door Switch .

5.

Power window and door lock/unlock switch RH

• Door lock and unlock switch is integrated into the power window switch.
• Door lock and unlock switch transmits door lock/unlock operation signal to BCM.

Refer to Component Location for detailed component location.

6.

Remote keyless entry receiver

Remote keyless entry receiver receives button operation signal and key ID signal of Intelligent Key and then transmits them to BCM.

Refer to Remote Keyless Entry Receiver .

7.

Dongle unit (if equipped)

BCM performs ID verification between BCM and dongle unit. When verification result is OK, BCM permits cranking.

8.

Horns high/low

IPDM E/R energizes the horns when the security system is activated.

9.

Hood switch

Hood switch transmits hood open/closed signal to the IPDM E/R.

Refer to Component Location for detailed component location.

10.

Transmission range switch

The transmission range switch detects the selector lever position.

Refer to Component Location for detailed component location.

11.

IPDM E/R (Intelligent Power Distribution Module Engine Room)

IPDM E/R detects push-button ignition switch (push switch) status, and transmits push-button ignition switch status signal (CAN) to BCM.

Refer to Component Location for detailed component location.

12.

Stop lamp switch

Stop lamp switch detects that brake pedal is depressed, and transmits the signal to BCM.

Refer to Component Location for detailed component location.

13.

BCM (Body Control Module)

• BCM controls INTELLIGENT KEY SYSTEM (ENGINE START FUNCTION), NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS [NVIS (NATS)] and VEHICLE SECURITY SYSTEM.
• BCM performs the ID verification between BCM and Intelligent Key when the Intelligent Key is carried into the detection area of inside key antenna, and push-button ignition switch is pressed. If the ID verification result is OK, ignition switch operation is available.

  Then, when the ignition switch is ON, BCM performs ID verification between BCM and ECM. If the ID verification result is OK, ECM can start engine.

Refer to Component Location for detailed component location.

14.

Combination meter

• Combination meter transmits the vehicle speed signal to BCM via CAN communication.
• BCM also receives the vehicle speed signal from ABS actuator and electric unit (control unit) via CAN communication. BCM compares both signals to detect the vehicle speed.
• Security indicator lamp is located on combination meter.
• Security indicator lamp blinks when ignition switch is in any position other than ON to warn that NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS [NVIS (NATS)] is on board.

Refer to Component Location for detailed component location.

15.

CVT shift selector

CVT shift selector detects shift lever status, transmits detention switch signal to BCM.

Refer to Component Location for detailed component location.

16.

Main power window and door lock/unlock switch

• Door lock and unlock switch is integrated into the power window main switch.
• Door lock and unlock switch transmits door lock/unlock operation signal to BCM.

Refer to Component Location for detailed component location.

17.

Front door switch LH

Door switch detects door open/close condition and then transmits ON/OFF signal to BCM.

Refer to Front Door Switch .

18.

Rear door switch LH

Door switch detects door open/close condition and then transmits ON/OFF signal to BCM.

Refer to Rear Door Switch .

19.

Trunk lamp switch and trunk release solenoid (trunk release solenoid)

Opens the trunk with the open signal from the BCM.

Refer to Component Location for detailed component location.

20.

Push-button ignition switch

Push-button ignition switch has push switch inside which detects that push-button ignition switch is pressed and then transmits ON/OFF signal to BCM. BCM changes the ignition switch position with the operation of push-button ignition switch. BCM maintains the ignition switch position status while push-button ignition switch is not operated.

21.

NATS antenna amp.

Refer to NATS Antenna Amp.
