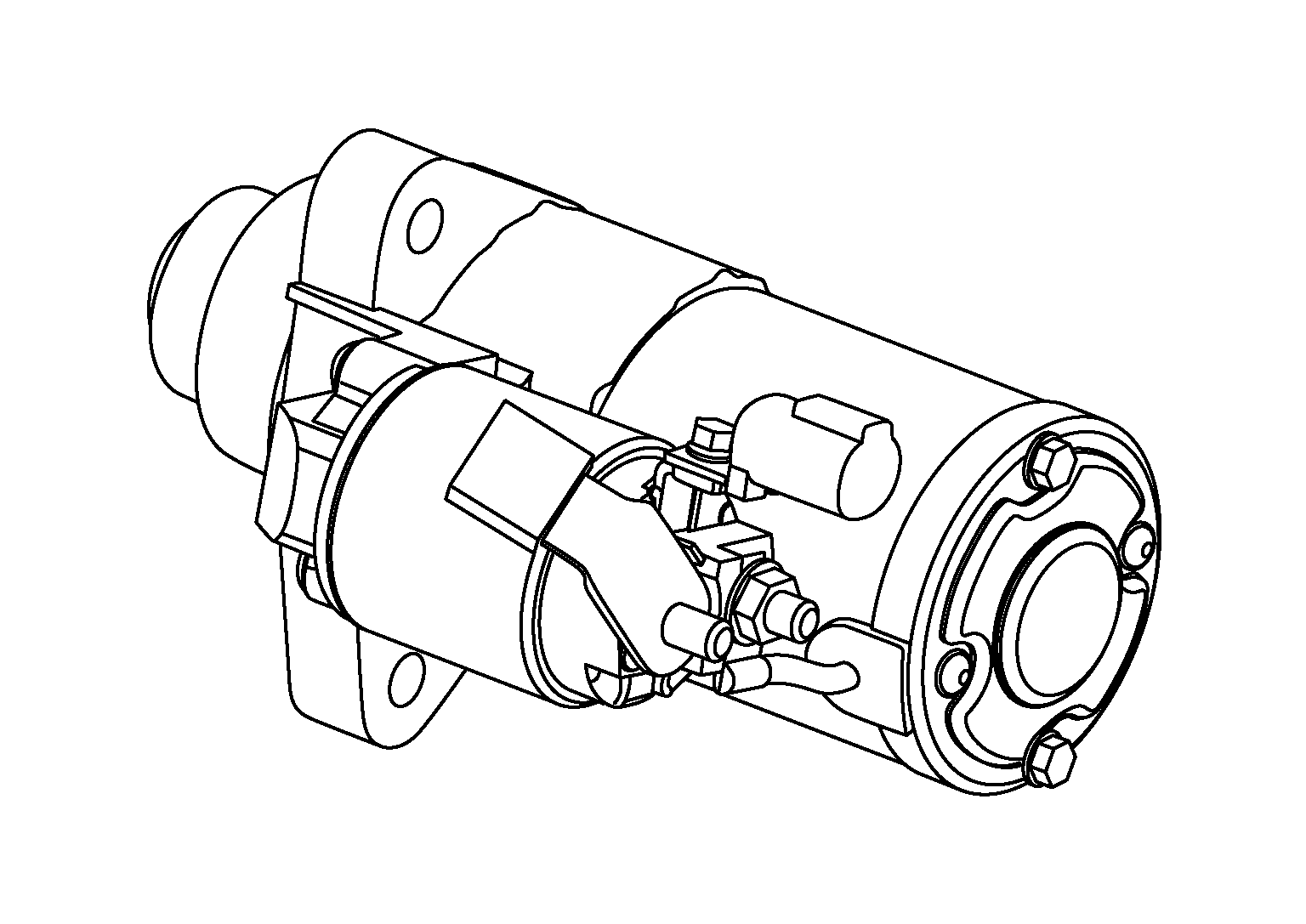

Starter Motor

GNSALBIA0937Z-937

Courtesy of NISSAN NORTH AMERICA, INC.

"B" terminal: The "B" terminal is constantly supplied with battery power.
"S" terminal: The starter motor magnetic switch ("S" terminal) is supplied with power when the cranking condition is satisfied.
