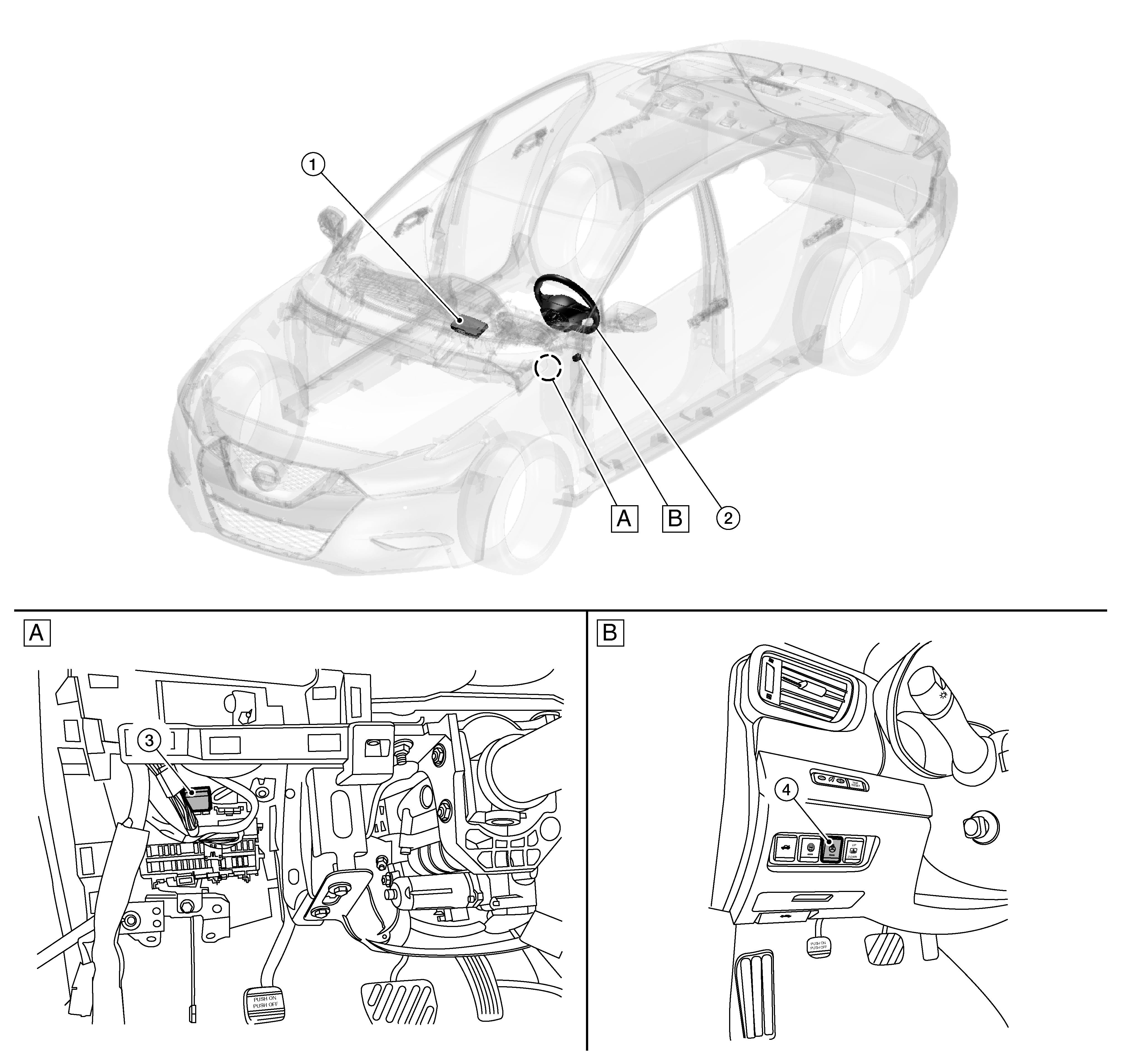

Component Location
|
A. |
Left of the steering column (view with instrument lower panel LH removed) |
B. |
Lower instrument panel driver side |
|
No. |
Component |
Function |
|
1. |
A/C auto amp. |
For the function, refer to A/C Auto Amp. . Refer to Component Location for detailed component location. |
|
2. |
Heated steering wheel |
Refer to Heated Steering Wheel . |
|
3. |
Heated steering relay |
Refer to Heated Steering Wheel Relay . |
|
4. |
Heated steering wheel switch |
Steering wheel heater function ON/OFF. |
