Fuel Level Sensor Unit
›

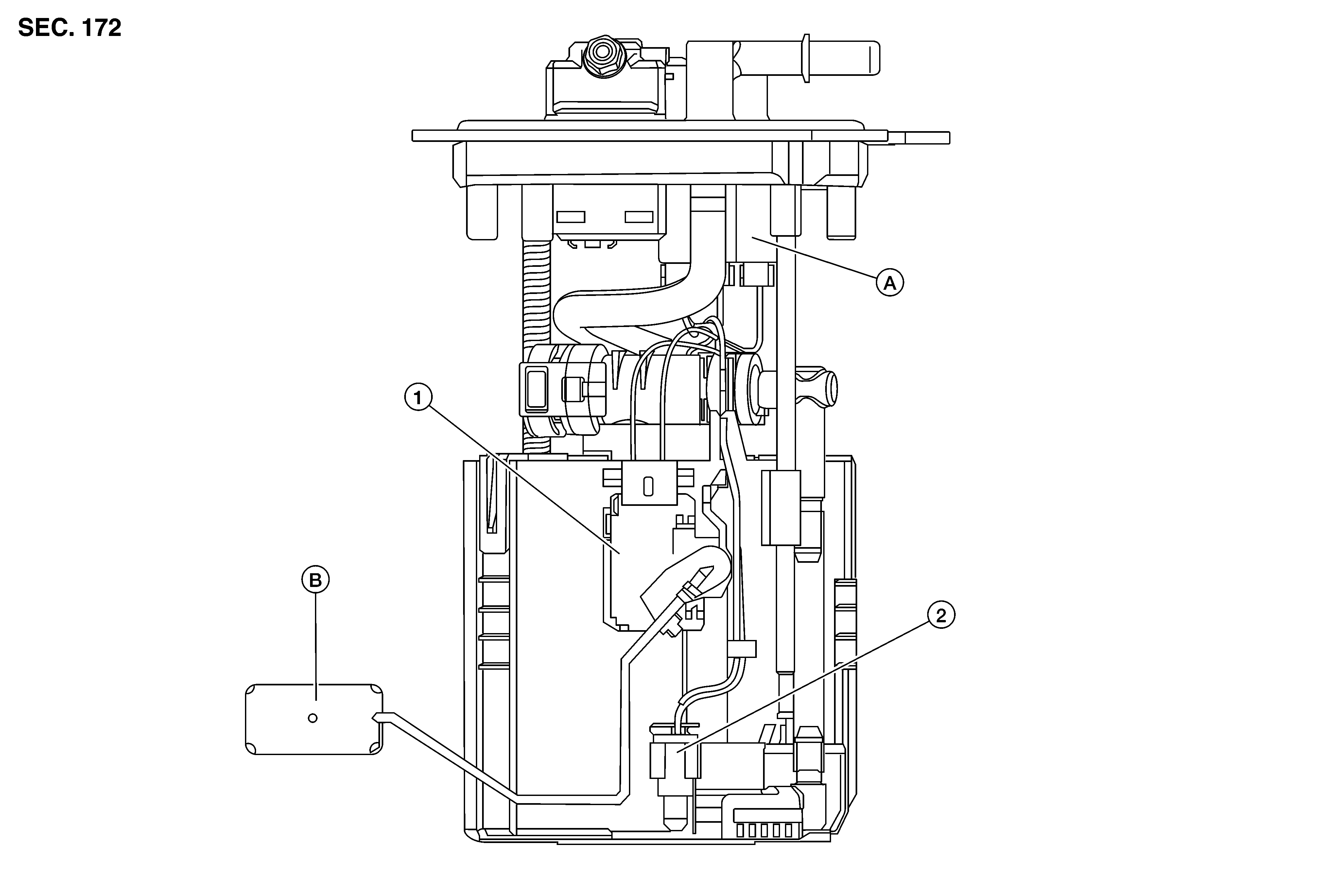

Exploded View
Exploded View
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Level sensor unit module
2.
Fuel temperature sensor
A.
Harness connector
B.
Float arm assembly
Courtesy of NISSAN NORTH AMERICA, INC.
