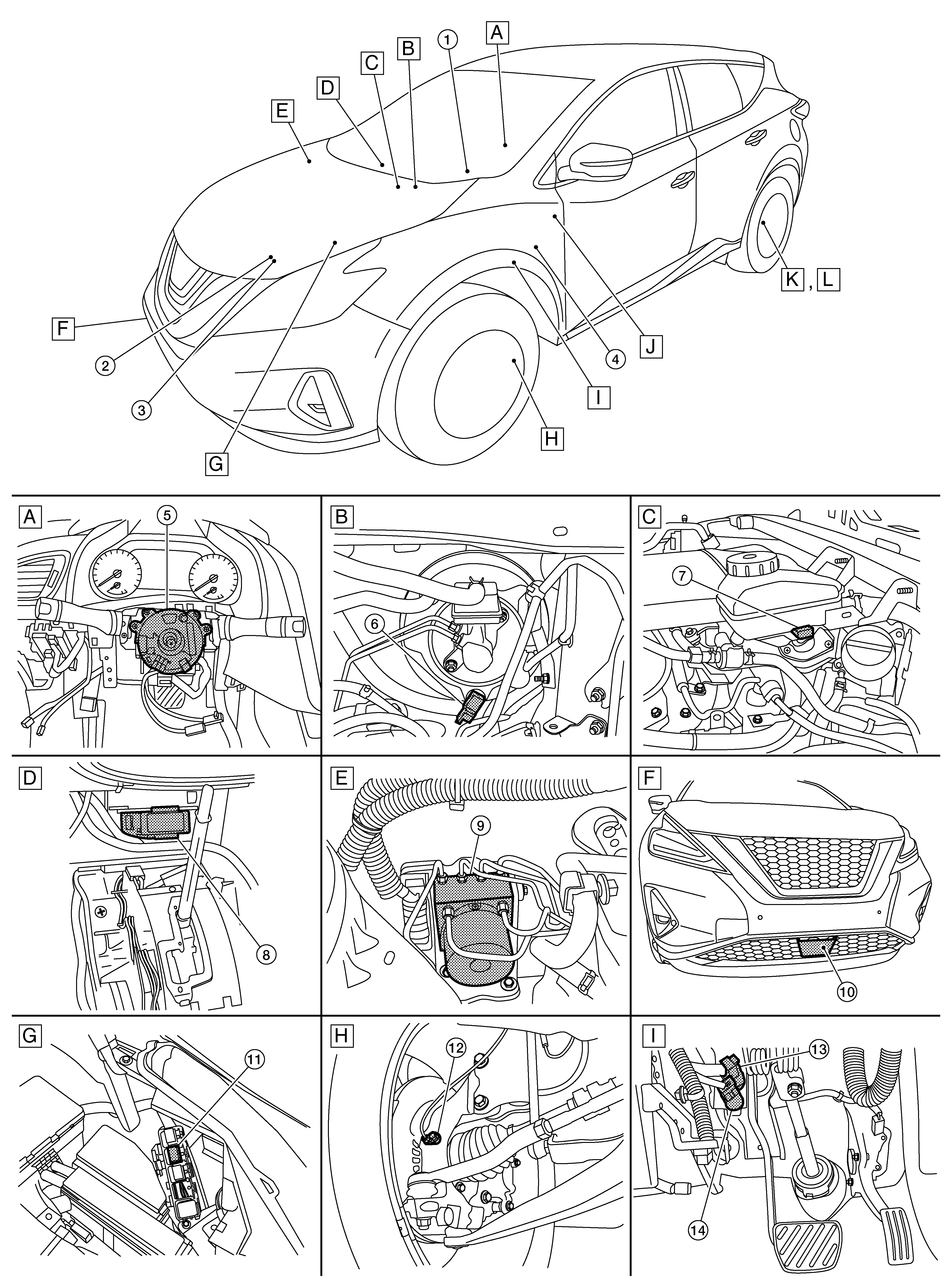

Component Location

A.

Steering column (view with steering wheel removed)

B.

Engine room (LH)

C.

Engine room (LH)

D.

Instrument panel (center)

E.

Engine room (RH)

F.

Front bumper (center)

G.

Engine room (LH)

H.

Left front wheel area

I.

Brake pedal area

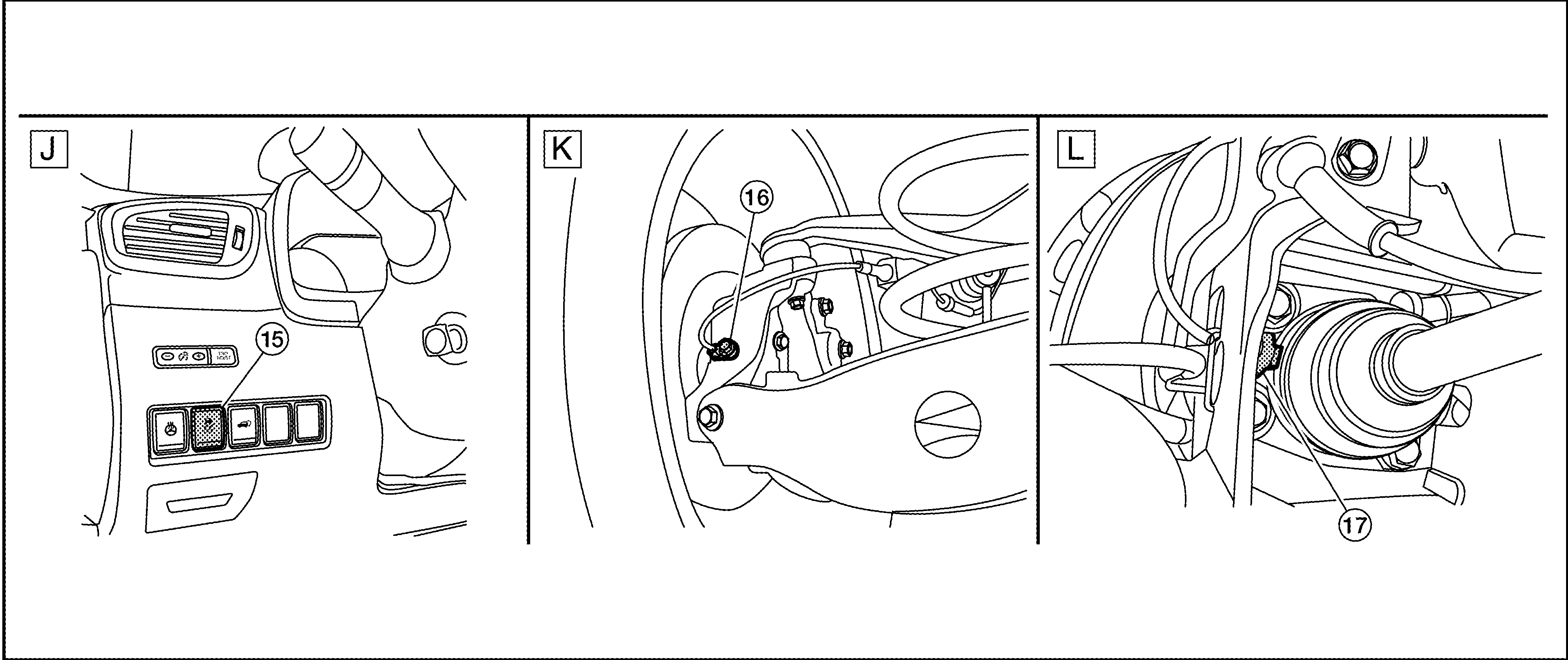

J.

Left side of instrument panel

K.

Left rear wheel area (FWD models)

L.

Left rear wheel area (AWD models)

No.

Component

Description

1.

Combination meter

• Performs the following operations using the signals received from the ADAS control unit via the CAN communication
  • Displays the AEB system operation status using the meter display signal
  • Illuminates the AEB warning lamp using the AEB warning lamp signal

• Refer to Component Location for detailed component location.

2.

TCM (Transmission Control Module)

• TCM transmits the signal related to CVT control to ADAS control unit via CAN communication
• Refer to Component Location for detailed component location.

3.

ECM (Engine Control Module)

• ECM transmits the accelerator pedal position signal via CAN communication
• Refer to Component Location for detailed component location.

4.

Driver assistance buzzer

Refer to Driver Assistance Buzzer .

5.

Steering angle sensor

Refer to Steering Angle Sensor .

6.

Vacuum sensor

Refer to Vacuum Sensor .

7.

Brake fluid level switch

Refer to Brake Fluid Level Switch .

8.

ADAS control unit

• Refer to ADAS Control Unit .
• Refer to Component Location for detailed component location.

9.

ABS actuator and electric unit (control unit)

• ABS actuator and electric unit (control unit) transmits the vehicle speed signal (wheel speed), stop lamp signal and VDC/TCS/ABS system operation condition to ADAS control unit via CAN communication
• ABS actuator and electric unit (control unit) controls the brake, based on a brake fluid pressure control signal received from ADAS control unit via CAN communication
• Refer to Component Location  for detailed component location.

10.

Distance sensor

Refer to Distance Sensor .

11.

ICC brake hold relay (if equipped)

Refer to ICC Brake Hold Relay .

12.

Front wheel sensor LH (RH similar)

Refer to Wheel Sensor and Sensor Rotor

13.

Brake pedal position switch

Refer to Brake Pedal Position Switch / Stop Lamp Switch .

14.

Stop lamp switch

15.

VDC off switch

Refer to VDC OFF Switch

16.

Rear wheel sensor LH (RH similar)

(FWD models)

Refer to Wheel Sensor and Sensor Rotor .

17.

Rear wheel sensor LH (RH similar)

(AWD models)

Refer to Wheel Sensor and Sensor Rotor .
