Removal And Installation
›
ECM
›
Exploded View
Exploded View

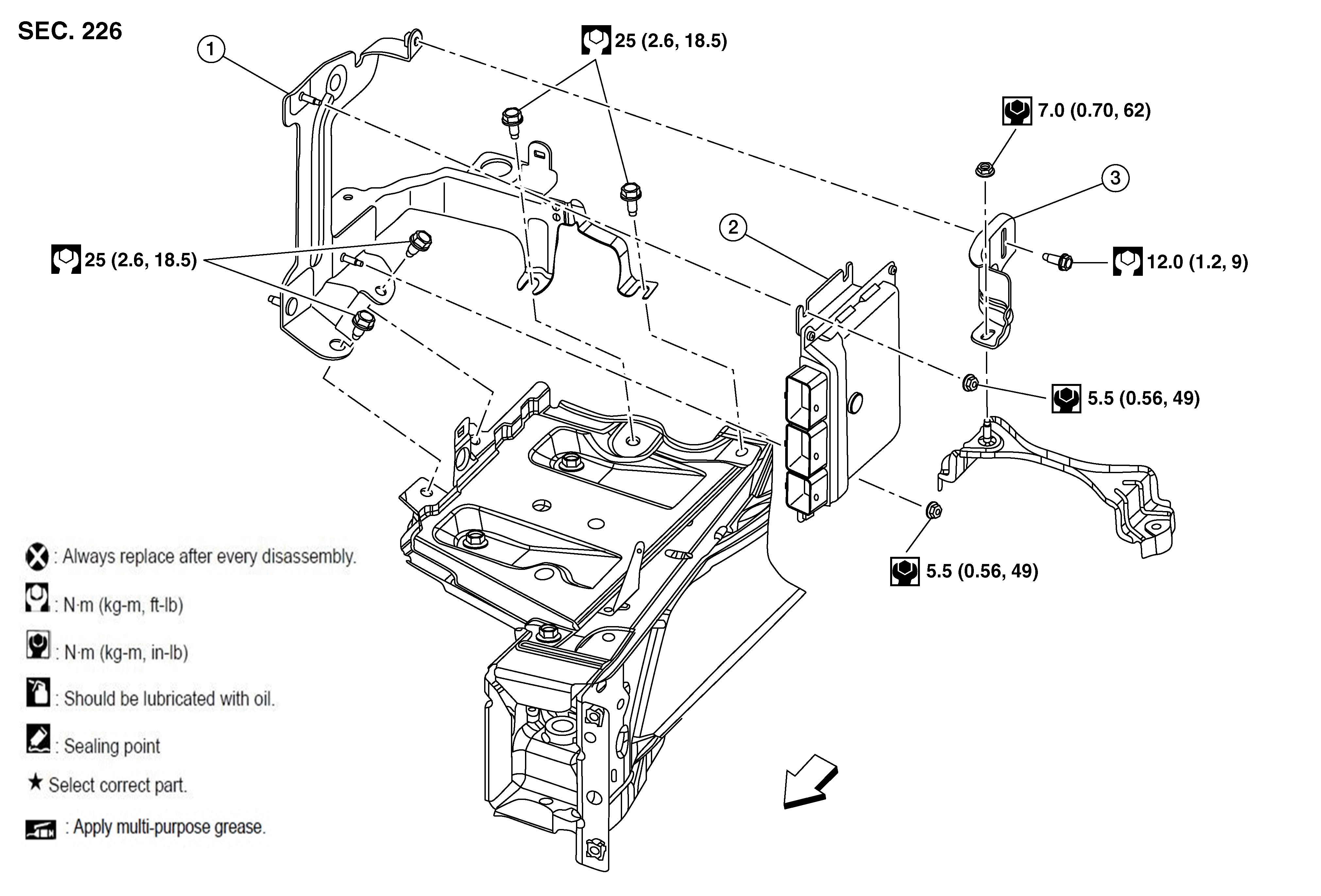

Fig 1: ECM With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
1.
ECM bracket
2.
ECM
3.
ECM cover
Front
Courtesy of NISSAN NORTH AMERICA, INC.
