Removal and Installation: Removal

  1. Lift luggage floor rear finisher and locate fuel pump control module (FPCM) behind luggage mask.

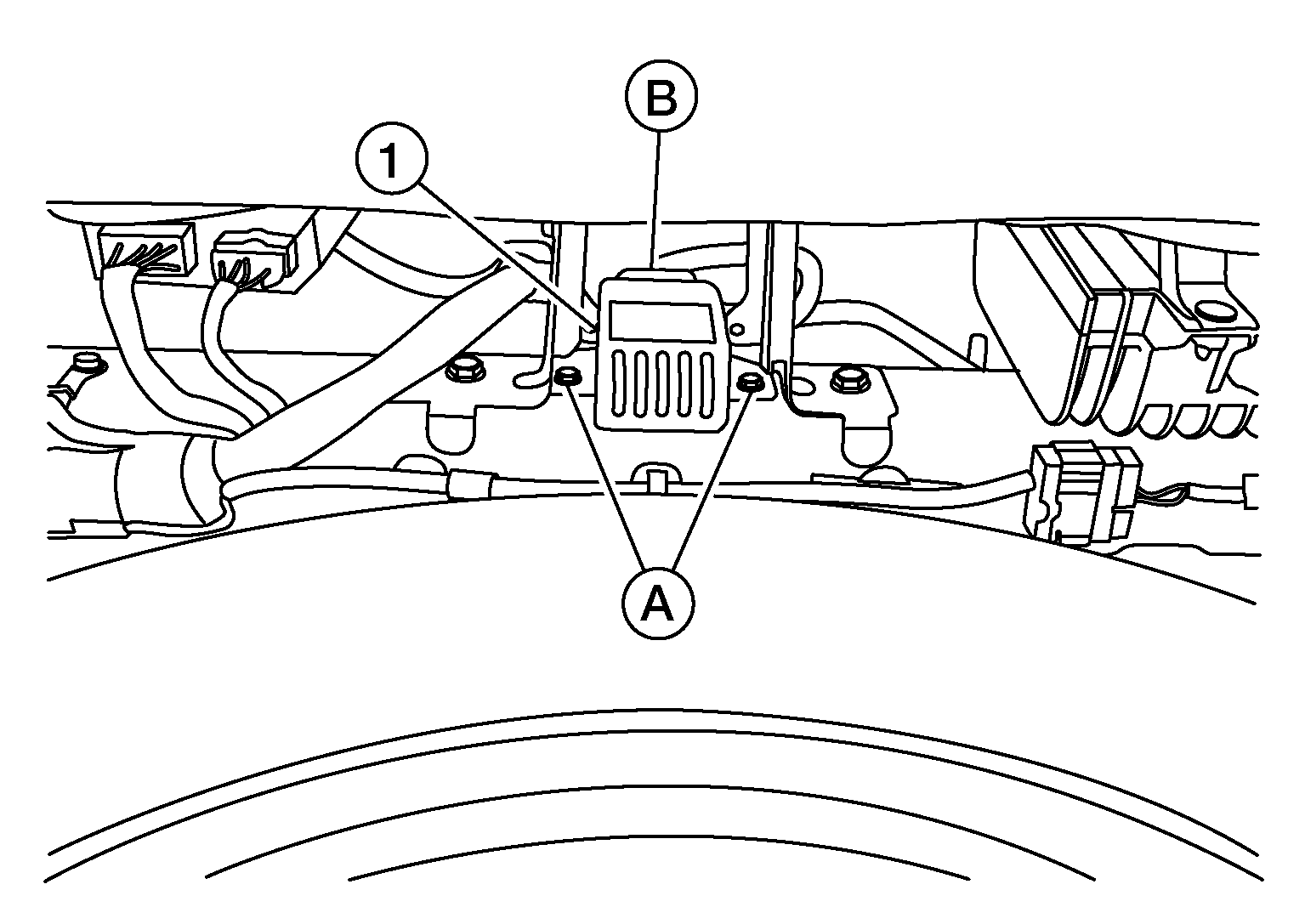

  2. Remove bolts (A) from the bracket.
    GNSALBIA1276Z-276Courtesy of NISSAN NORTH AMERICA, INC.
  3. Disconnect the harness connector (B) from the fuel pump control module (1) and then remove fuel pump control module.
