Component Location

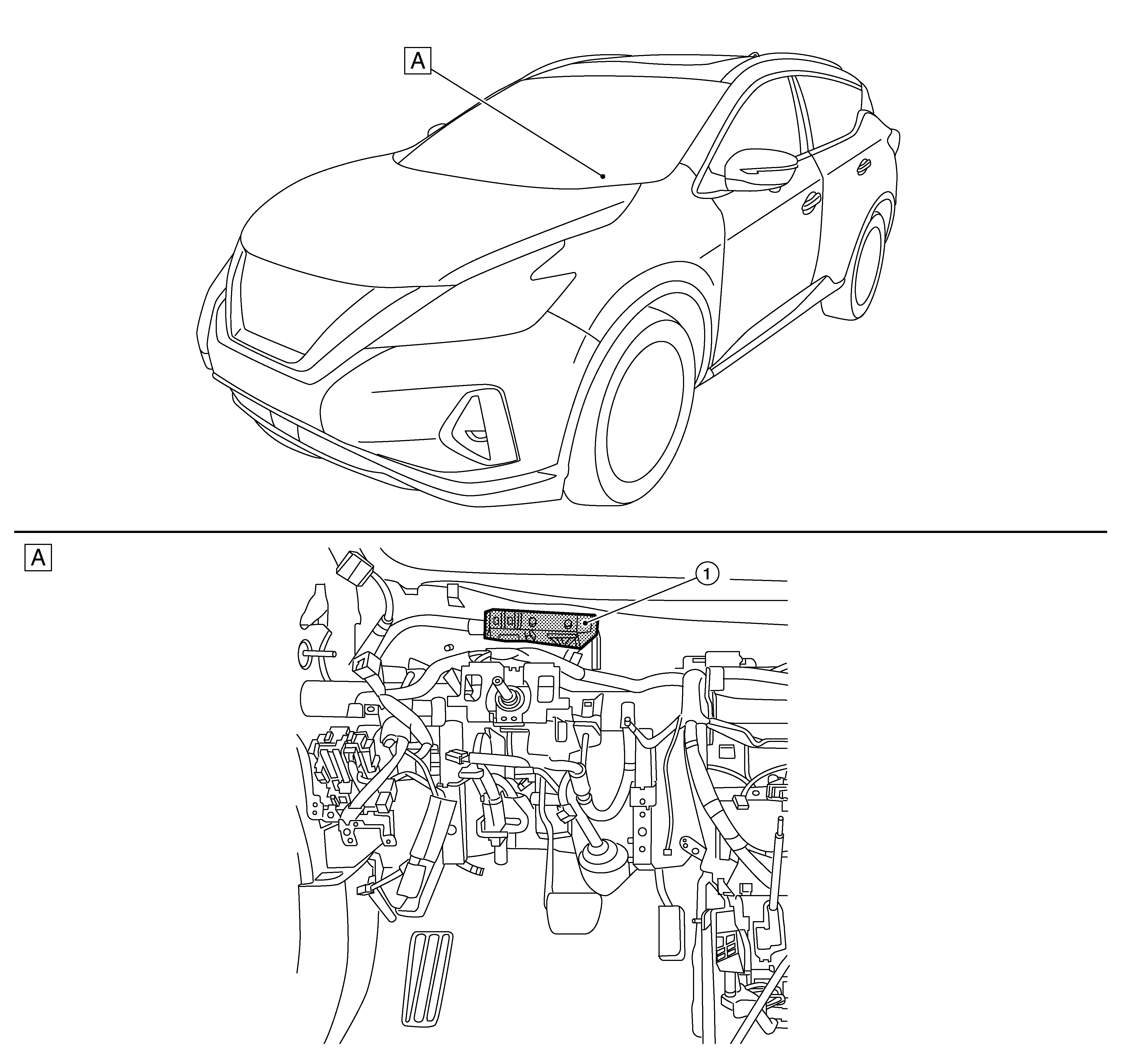

GNSAWMIA0128Z-128

Courtesy of NISSAN NORTH AMERICA, INC.

A.	LH side of instrument panel (view with instrument panel removed)

No.	Component	Function
1.	BCM (Body Control Module)	Refer to System Description .
