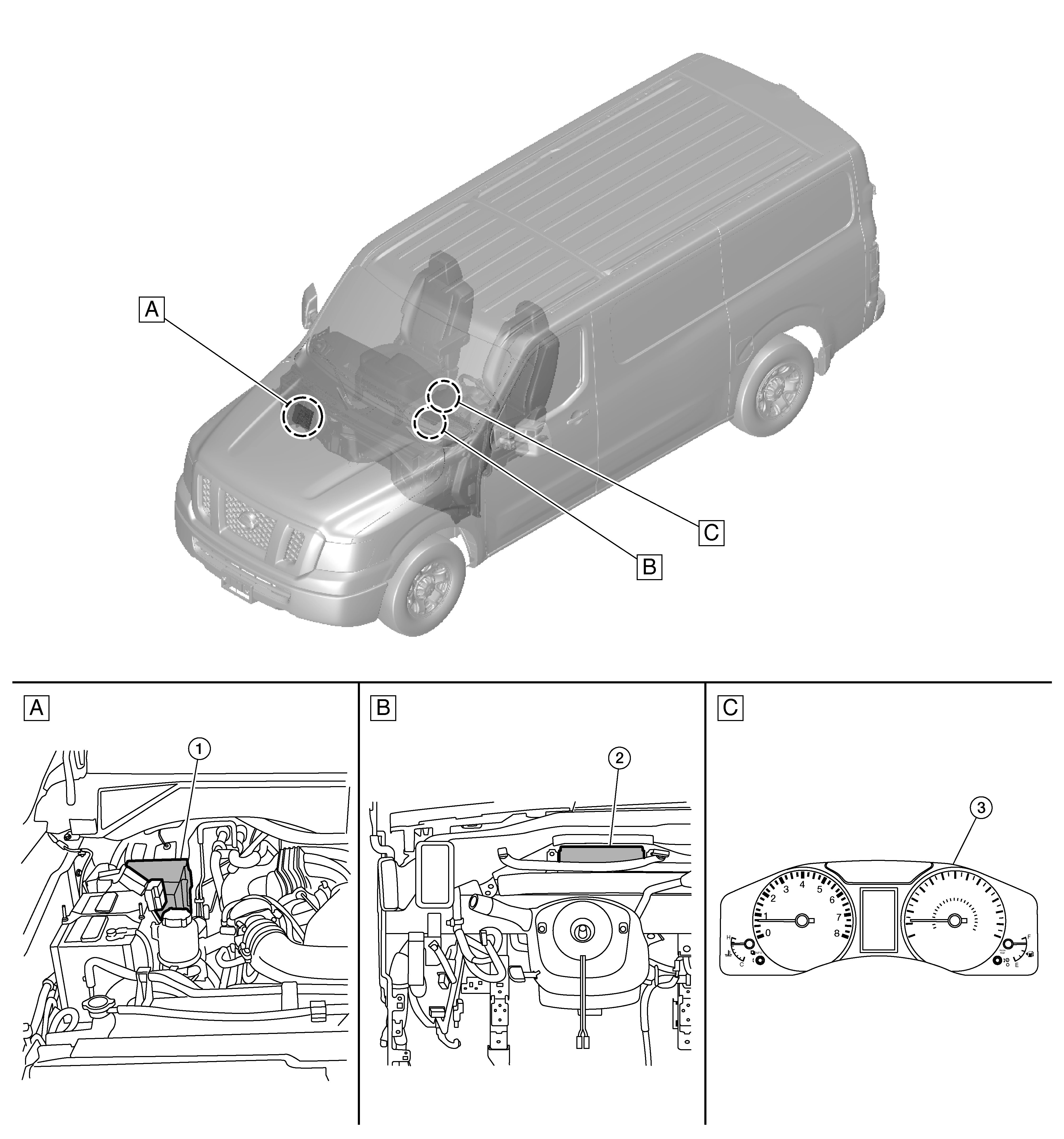

Component Location
|
A. |
Engine room right side |
B. |
View with instrument panel removed |
C. |
View with combination meter removed |
|
No. |
Component |
Function |
|
1. |
IPDM E/R (Intelligent Power Distribution Module Engine Room) |
Refer to Component Location for detailed component location. |
|
2. |
BCM (Body Control Module) |
Refer to System Description . |
|
3. |
Combination meter |
Refer to Component Location for detailed component location. |
