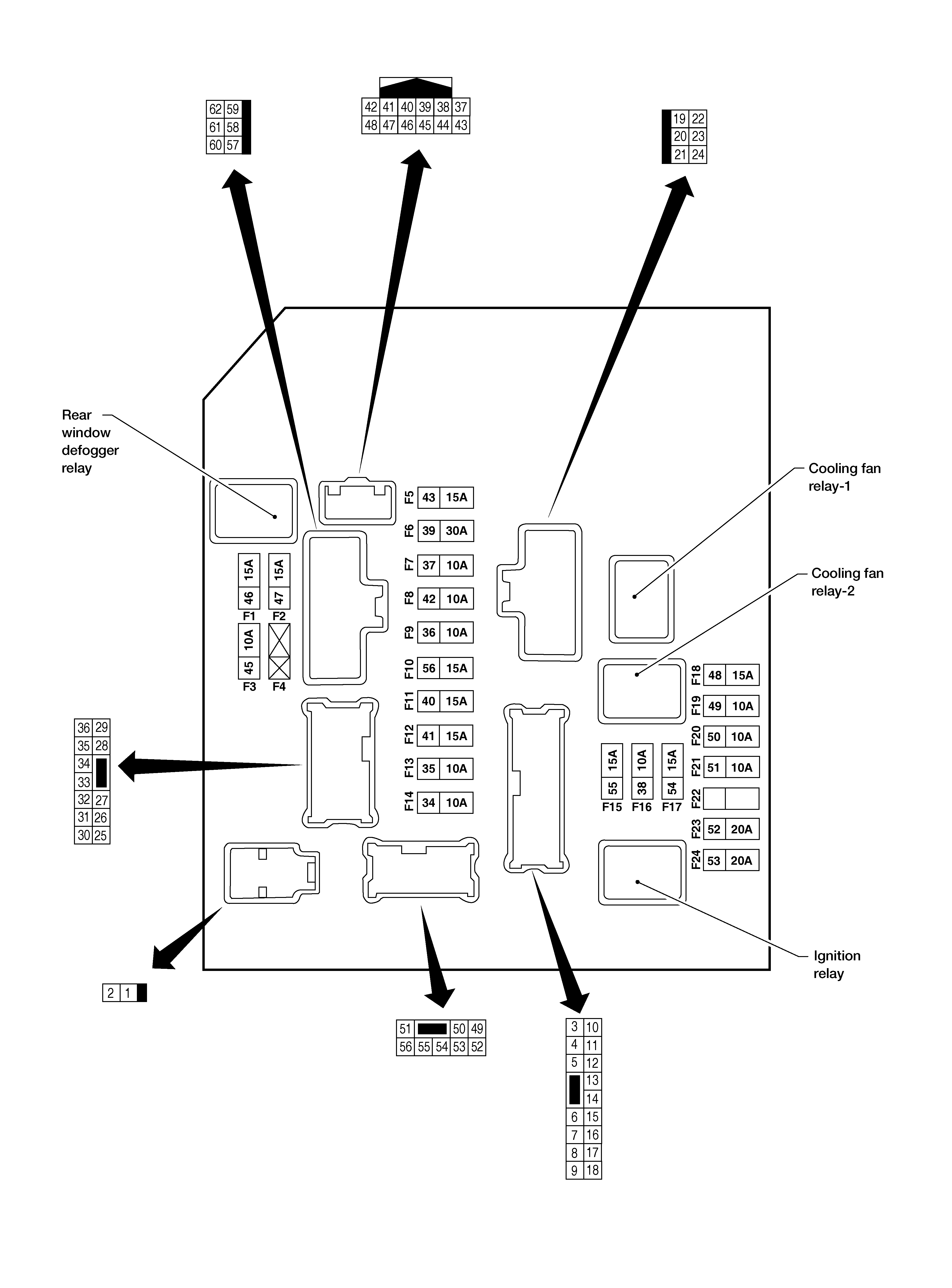

Terminal Layout

Courtesy of NISSAN NORTH AMERICA, INC.

NOTE: Numbers preceded by an "F" represent the fuse numbers imprinted on the IPDM E/R. The other numbers represent the fuse numbers as they appear in the wiring diagrams.
