Disassembly and Assembly: Notes

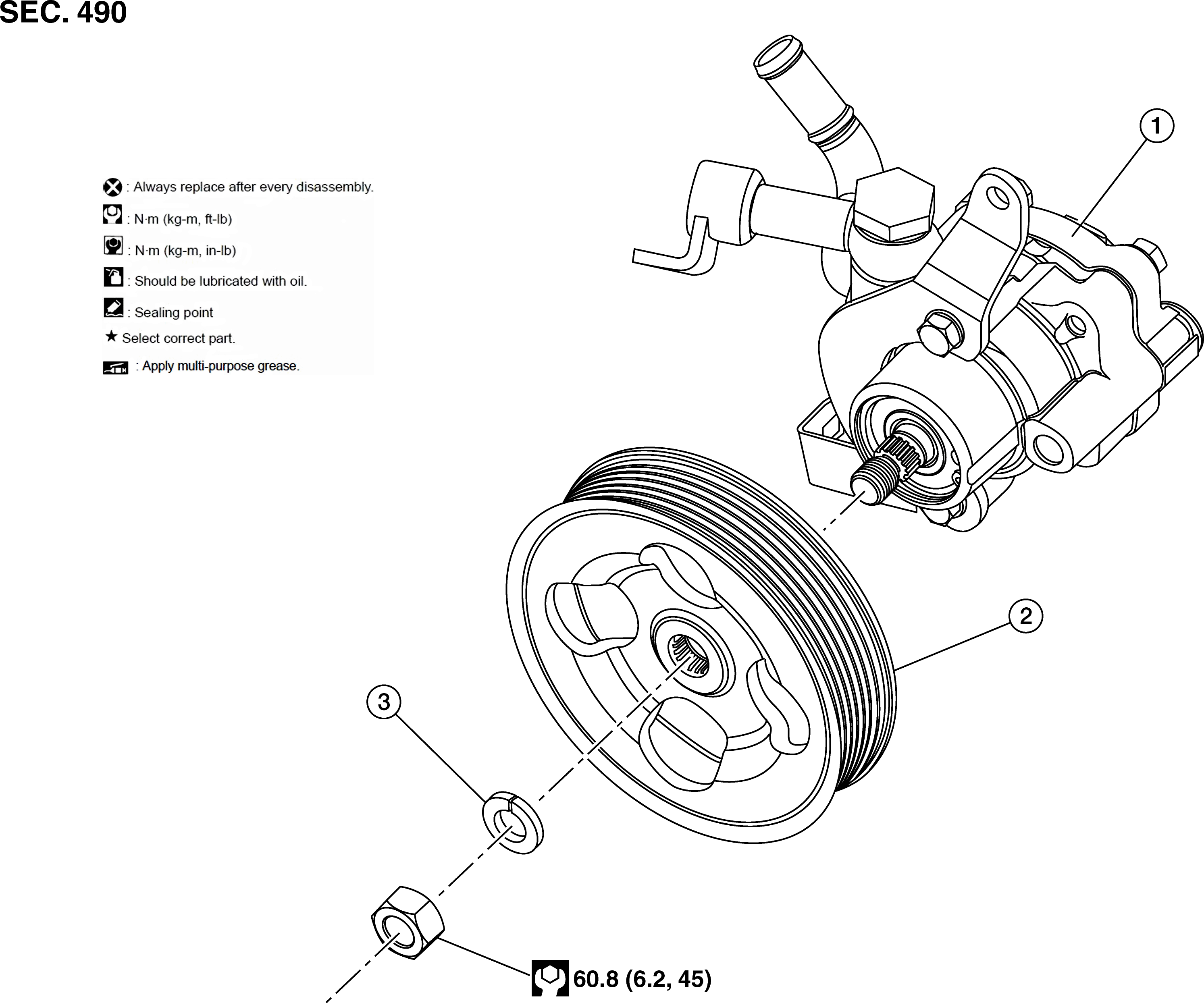

Fig 1: Power Steering Oil Pump VQ40DE Engine With Torque Specifications
GNSALGIA0093GB-093Courtesy of NISSAN NORTH AMERICA, INC.

1.

Power steering pump

2.

Pulley

3.

Lock washer
