Exploded View

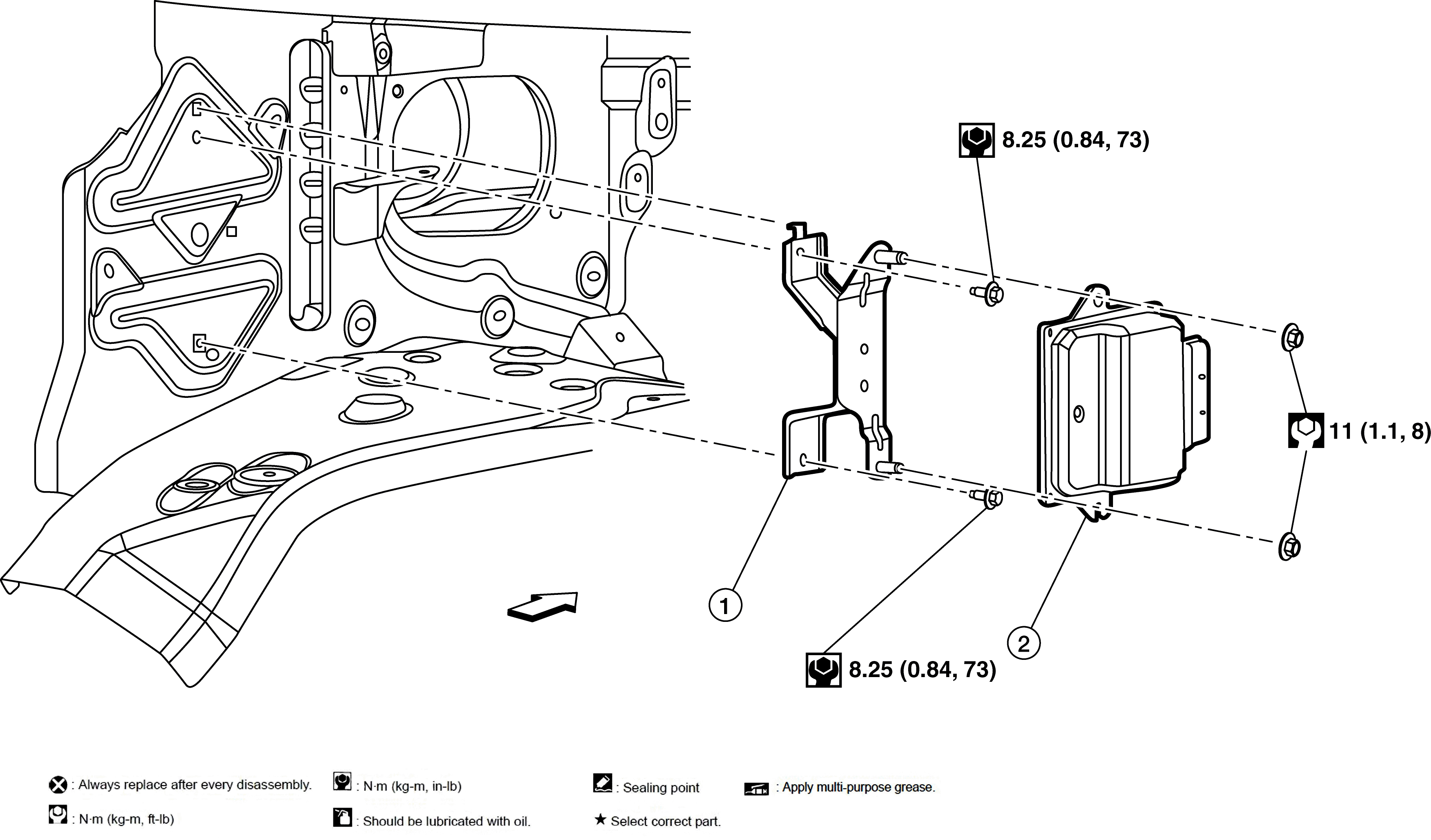

Fig 1: VVEL Control Module With Torque Specifications

GNSALBIA3347Z-347

Courtesy of NISSAN NORTH AMERICA, INC.

1.

VVEL control module bracket

2.

VVEL control module

Front
