Removal and Installation: Removal

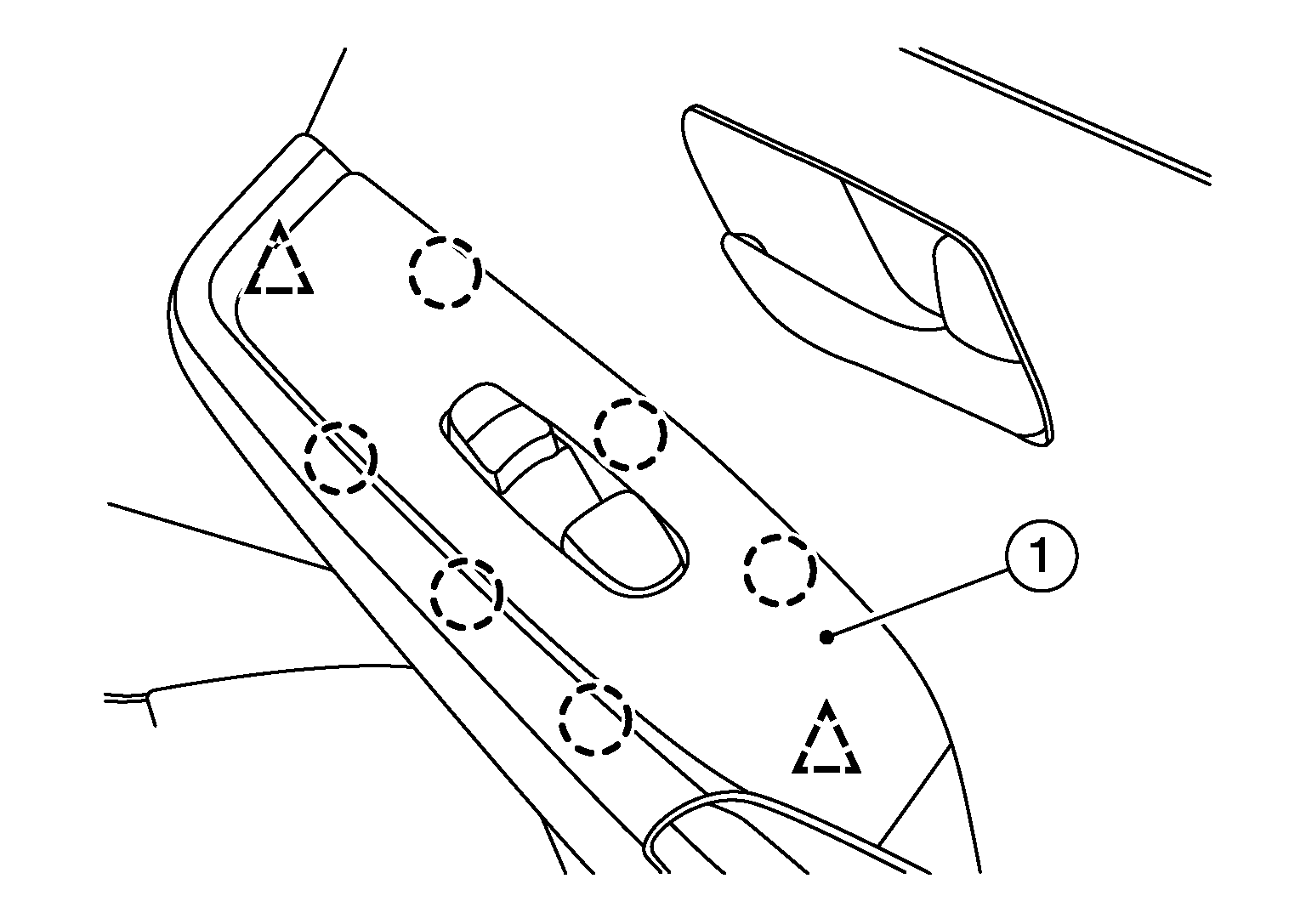

Using a suitable tool, release clips and pawls and remove the power window and door lock/unlock switch RH assembly (1).

Courtesy of NISSAN NORTH AMERICA, INC.

	: Pawl
	: Clip

Disconnect the harness connector from the power window and door lock/unlock switch RH.

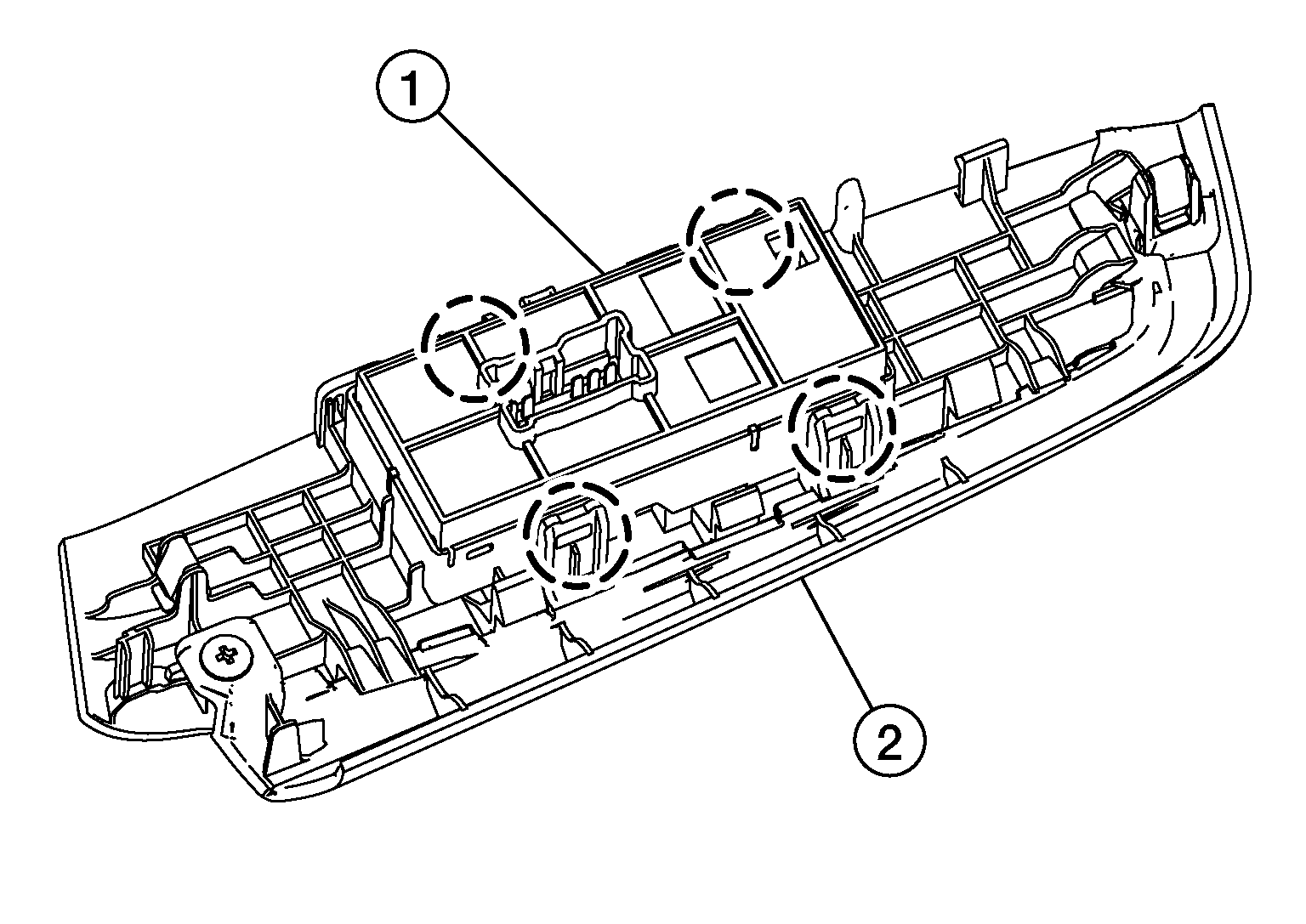

Using a suitable tool, release the pawls and remove the power window and door lock/unlock switch RH (1) from the power window and door lock/unlock switch RH finisher (2).

Courtesy of NISSAN NORTH AMERICA, INC.

: Pawl
