Home › Nissan-Datsun › 2021 › Sentra S › Repair and Diagnosis › Body & Frame › Windows › Power Window Control System › Wiring Diagram › Power Window System › Wiring Diagram

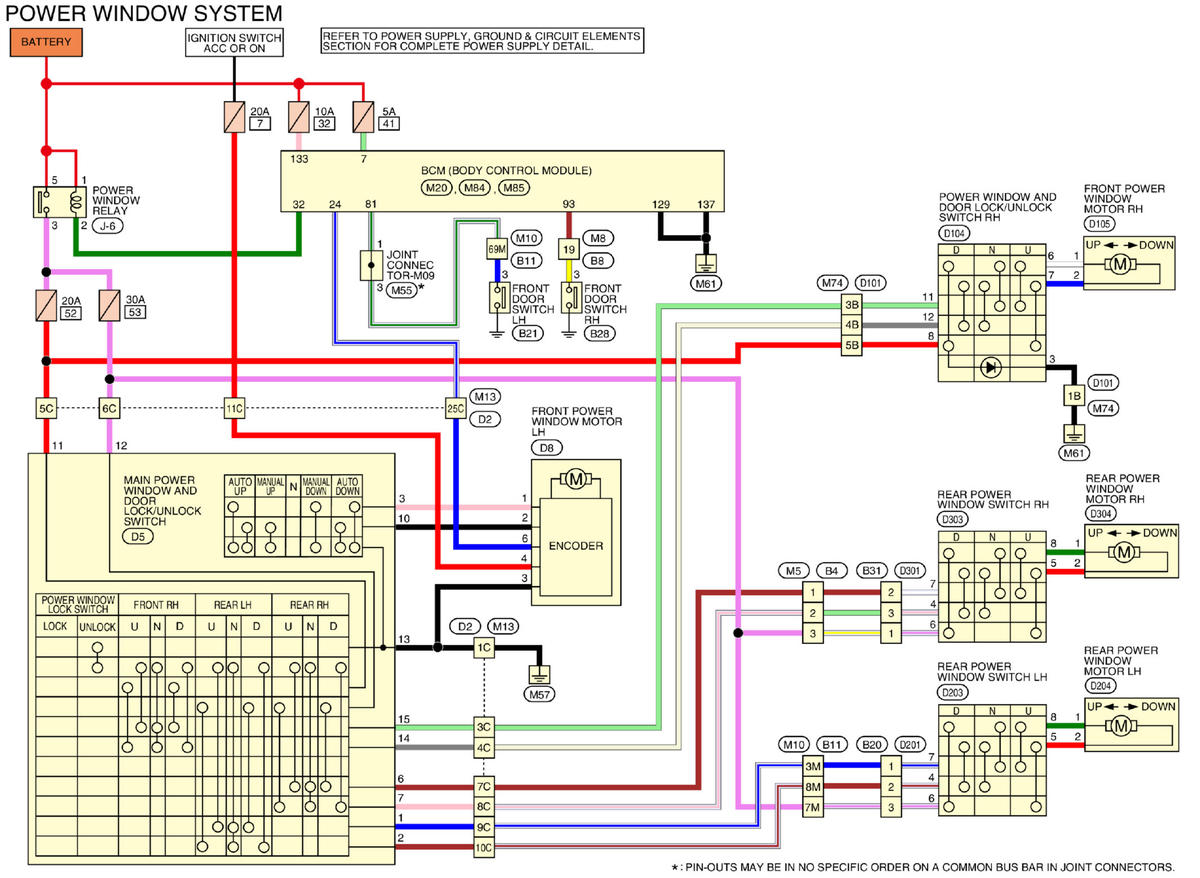

Power Window System: Wiring Diagram

GNS2190C014801-801Courtesy of EWD
